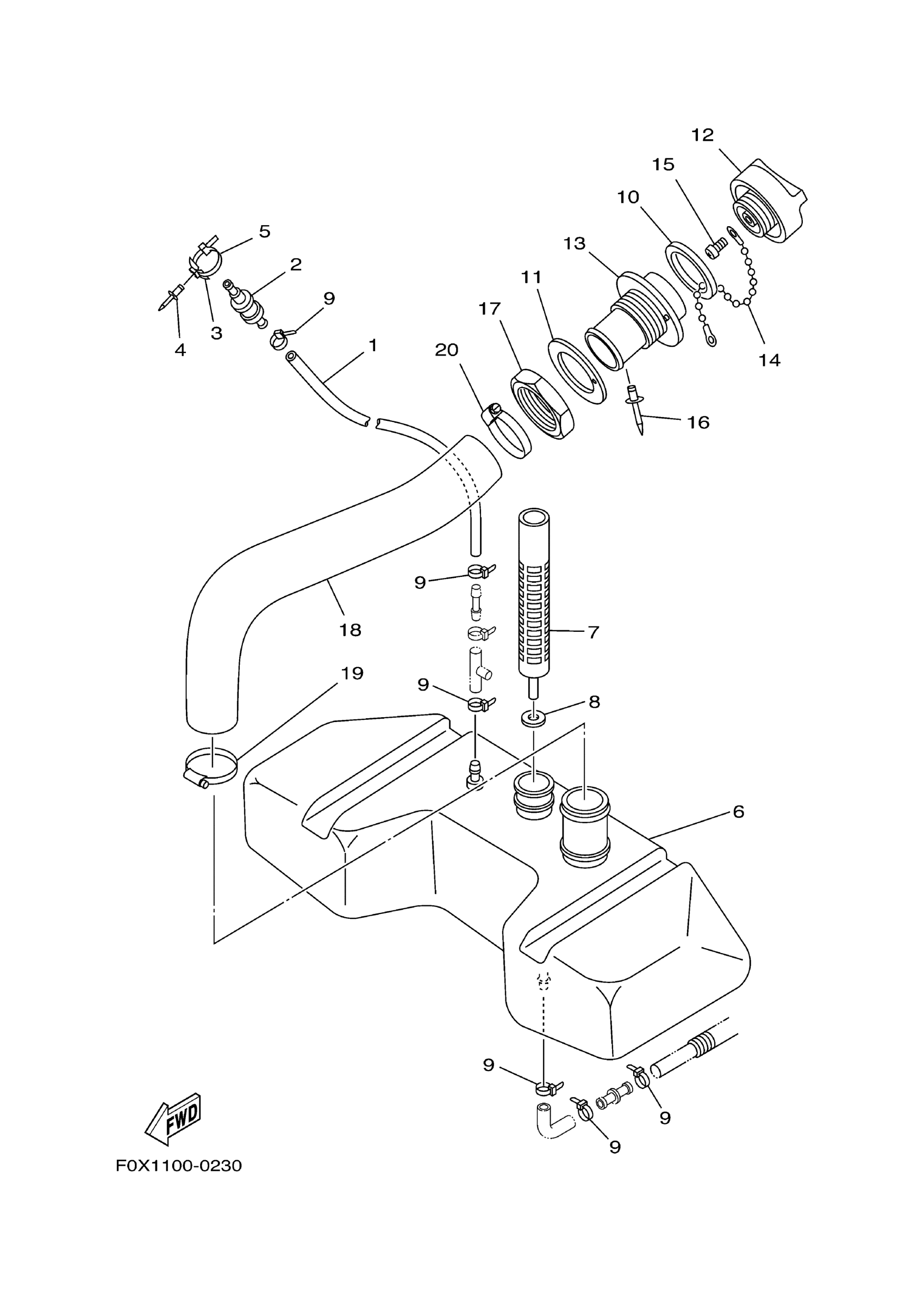

Yamaha GP800AB (GP800R) F0W6 2003 OIL TANK Diagram

#

Description
Price

1

HOSE, AIR VENT 3

F0X-U7856-00-00

Unavailable

2

. ROLL OVER VALVE

FJ0-67766-00-00

$54.53

3

CLAMP COMP (EU0)

90600-91736-00

$6.22

4

RIVET, BLIND

90267-489U6-00

$1.37

5

CLAMP

90464-32801-00

$1.23

6

TANK, OIL

F0D-U775B-02-00

Unavailable

7

FILTER

F0D-6775C-01-00

$25.74

8

PACKING (T:10MM)

F0D-6775E-01-00

Unavailable

9

CLAMP

90465-10098-00

$1.68

10

PACKING, OIL CAP

GJ3-U778C-00-00

$1.72

11

PACKING,OIL FILLER

F0X-U778E-01-00

Unavailable

12

CAP, OIL FILLER

F0X-U778B-00-00

$49.98

13

SOCKET, OIL FILLER

F0X-U778D-00-00

$6.82

14

CHAIN BALL

EU0-U7835-00-00

$8.32

15

SCREW,TAPPING (EU0)

97780-40110-00

$1.05

16

. RIVET, BLIND

90267-40935-00

$1.28

17

NUT, OIL FILLER

F0X-U778H-01-00

$4.17

18

HOSE,OIL FILLER

F0X-U776C-10-00

Unavailable

19

BAND, HOSE 52

90601-152U3-00

$5.67

20

CLAMP

90464-99803-00

Unavailable
