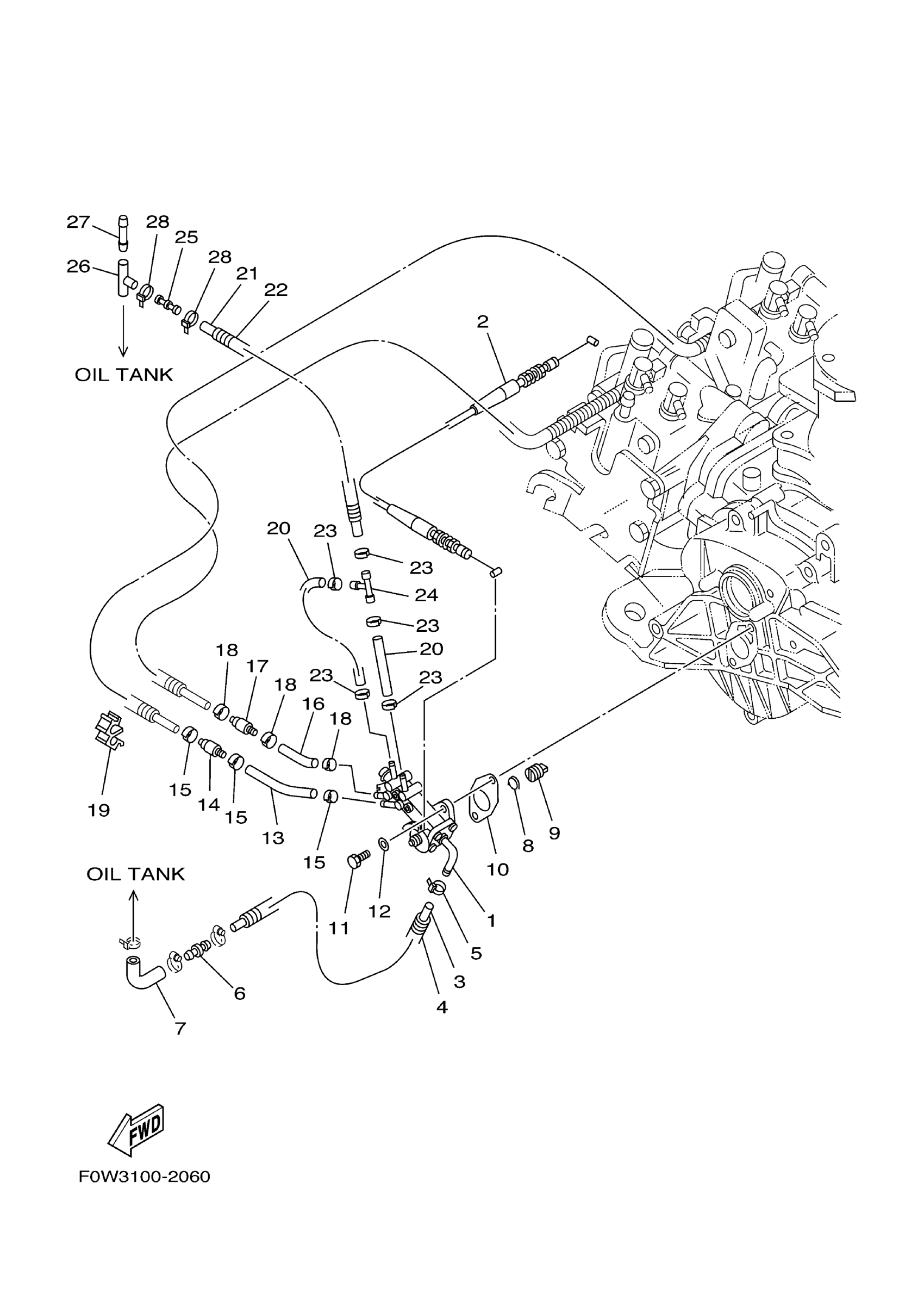

Yamaha GP800AB (GP800R) F0W6 2003 OIL PUMP Diagram

#

Description
Price

1

OIL INJECTION PUMP ASSY

66E-13200-02-00

Unavailable

2

PUMP CABLE ASSY

66E-26320-00-00

Unavailable

3

HOSE (L700)

90445-117F2-00

$22.86

4

HOSE

90446-17M72-00

$7.22

5

CLAMP

90465-10098-00

$2.24

6

CONNECTION

66V-51142-00-00

$3.13

7

HOSE (L118)

90445-14M00-00

$4.40

8

SPRING

66E-13469-00-00

Unavailable

9

JOINT

65U-13132-00-00

$47.75

10

GASKET, PUMP CASE

63M-13116-00-00

$2.80

11

BOLT(7U8)

97080-06020-00

$3.95

12

WASHER, PLAIN (646)

92990-06600-00

$2.80

13

HOSE (L200)

90445-07MA3-00

$7.16

14

VALVE, CHECK

67X-13183-00-00

$26.10

15

CLIP

90468-02001-00

$2.16

16

HOSE (L200)

90445-07MA3-00

$7.16

17

VALVE, CHECK

67X-13183-00-00

$26.10

18

CLIP

90468-02001-00

$2.16

19

CLAMP

90464-07M20-00

Unavailable

20

HOSE (L200)

90445-07MA3-00

$7.16

21

HOSE (L770)

90445-07006-00

$23.67

22

TUBE (L650)

90447-07002-00

$11.93

23

CLIP

90468-02001-00

$2.16

24

PIPE, JOINT 3

6E0-24378-00-00

$6.27

25

JOINT

63M-13132-00-00

$13.99

26

PIPE, JOINT 3

63M-24378-00-00

$5.82

27

PIPE, JOINT 1

6G8-24376-00-00

$5.82

28

CLAMP

90465-10098-00

$2.24
