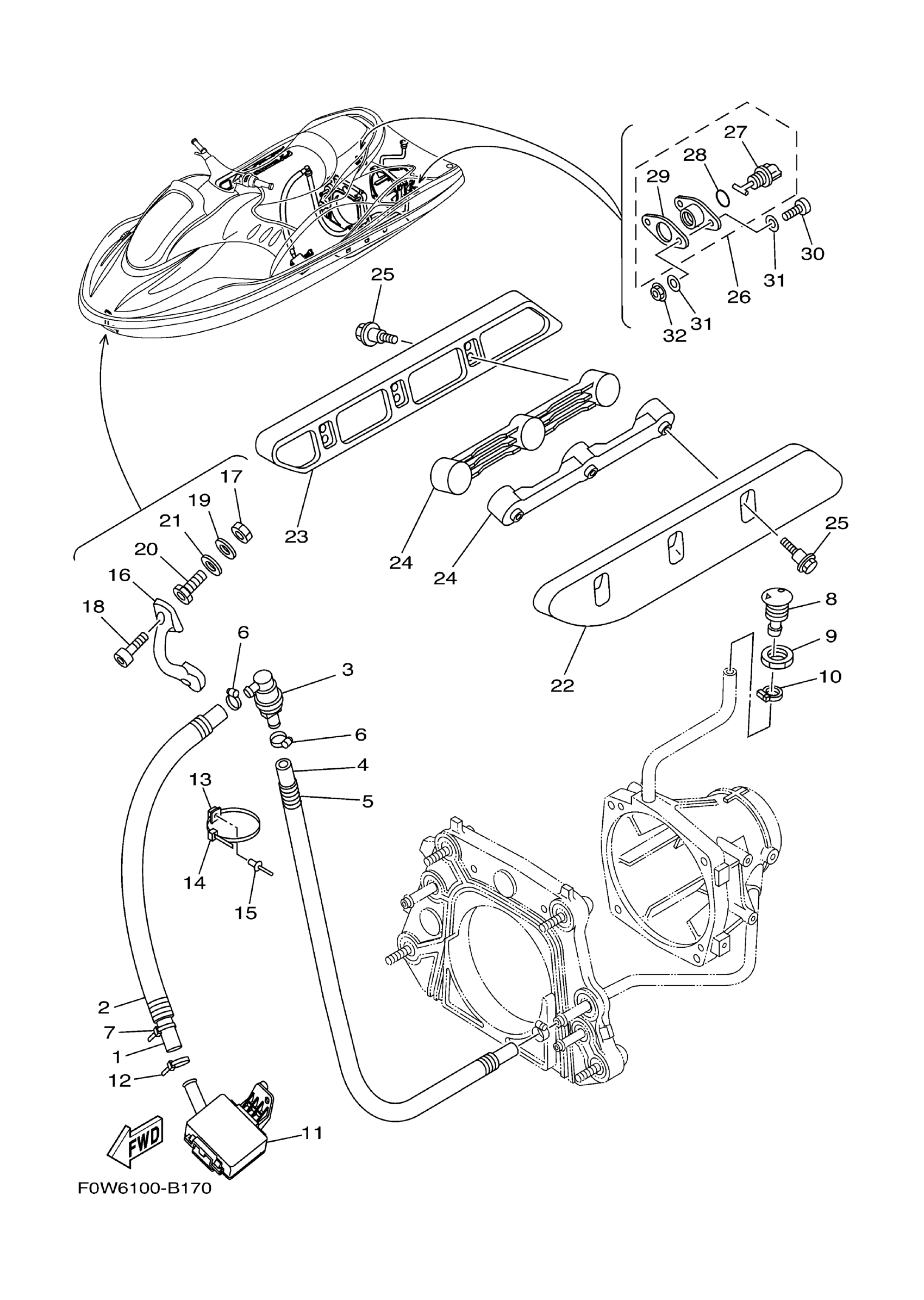

Yamaha GP800AB (GP800R) F0W6 2003 HULL DECK Diagram
#
1
HOSE (L1000)
90445-198C0-00
Unavailable
2
HOSE (L800)
90446-27M95-00
Unavailable
3
JOINT, HOSE
68N-5112T-00-00
Unavailable
4
HOSE (L650)
90445-198B9-00
Unavailable
5
HOSE (L550)
90446-27MF2-00
Unavailable
6
BAND, HOSE 18
90601-118UF-00
Unavailable
7
BAND
90601-200U1-00
Unavailable
8
SPOUT
FN8-6269B-00-00
Unavailable
9
NUT
EU0-61652-00-00
Unavailable
10
BAND, HOSE 18
90601-118UF-00
Unavailable
11
STRAINER, BILGE
F1B-U761D-02-00
Unavailable
12
BAND
90601-200U1-00
Unavailable
13
CLAMP COMP (EU0)
90600-91736-00
$8.49
14
BAND
90601-200U2-00
Unavailable
15
RIVET, BLIND
90267-489U7-00
Unavailable
16
BOWEYE 1
F0X-61624-00-00
Unavailable
17
NUT
F0X-61652-01-00
Unavailable
18
BOLT, HEXAGON SOCKET HEAD
90110-06280-00
Unavailable
19
WASHER
F0X-61637-00-00
Unavailable
20
NUT.HEX.(COARS)
99780-12600-00
Unavailable
21
YBS66-12 WASHER,PLAIN
92990-12200-00
Unavailable
22
STABILIZER LH
F0X-U883N-00-00
Unavailable
23
STABILIZER RH
F0X-U883P-00-00
Unavailable
24
BRACKET,STABILIZER
F1B-U883T-02-00
Unavailable
25
BOLT
F1G-U2624-10-00
Unavailable
26
DRAIN PLUG ASSY
EU0-62280-00-00
Unavailable
27
. PLUG, DRAIN
EU0-62282-00-00
Unavailable
28
. O-RING
EU0-62283-00-00
Unavailable
29
. PACKING DRAIN (EU0)
EU0-62285-01-00
Unavailable
30
SCREW, PAN HEAD
9788R-05025-00
Unavailable
31
WASHER
9299R-05200-00
Unavailable
32
NUT, FLANGE
9572R-05300-00
Unavailable
