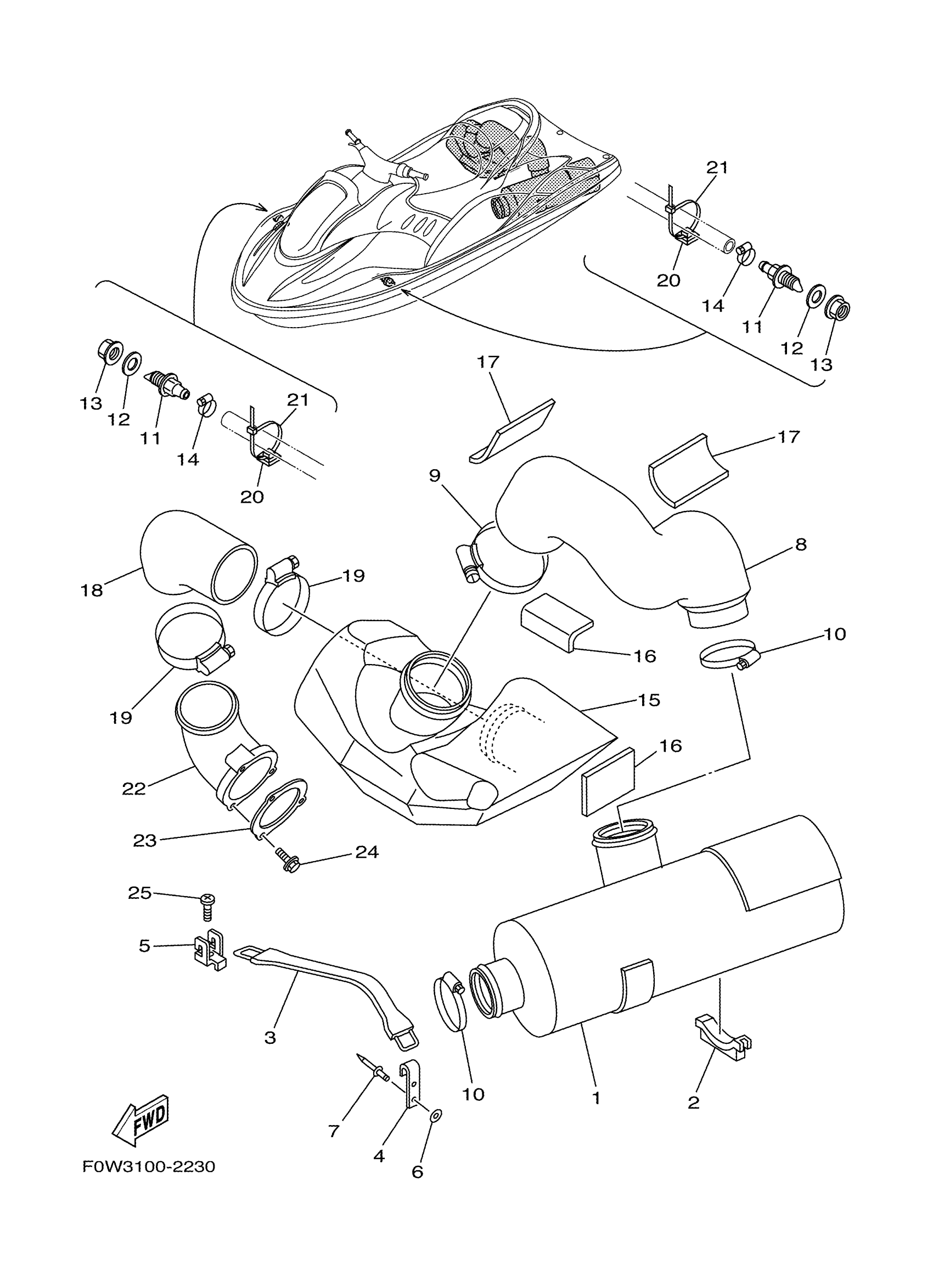

Yamaha GP800AB (GP800R) F0W6 2003 EXHAUST 2 Diagram

#

Description

Price

1

WATER LOCK COMP.

F0W-67550-01-00

Unavailable

2

MAT, WATER LOCK

F0X-6755J-00-00

Unavailable

3

BAND,BATTERY 1

EU0-U821D-00-00

Unavailable

4

HOOK A

GA7-65772-00-00

Unavailable

5

HOOK A

EW2-U5772-00-00

Unavailable

6

WASHER

9299R-05200-00

Unavailable

7

RIVET, BLIND(EU0,USA)

90267-489U9-00

$5.60

8

HOSE, EXHAUST

F0W-U7555-00-00

Unavailable

9

HOSE CLAMP ASSY

90450-99801-00

Unavailable

10

BAND, HOSE 75

90601-175UR-00

Unavailable

11

PILOT, WATER

F0X-6753B-00-00

Unavailable

12

GASKET(GJ1)

90430-16910-00

Unavailable

13

NUT

F0X-62733-00-00

Unavailable

14

BAND, HOSE 18

90601-118UF-00

Unavailable

15

TANK, WATER

F0X-U4261-13-00

Unavailable

16

MAT, WATER LOCK

GP8-6755J-00-00

Unavailable

17

MAT

GU0-67593-00-00

Unavailable

18

HOSE, EXHAUST 2

F0X-U758C-00-00

Unavailable

19

BAND, HOSE 95

90601-195UD-00

Unavailable

20

BASE, CLAMP

90600-900U6-00

Unavailable

21

CLAMP(JN6)

90464-40825-00

Unavailable

22

THRU-HULL,EXHAUST

F0D-67565-01-00

Unavailable

23

PACKING

F0D-U7525-01-00

Unavailable

24

BOLT, WITH WASHER

90119-06896-00

Unavailable

25

BOLT, WITH WASHER

90119-06830-00

Unavailable
