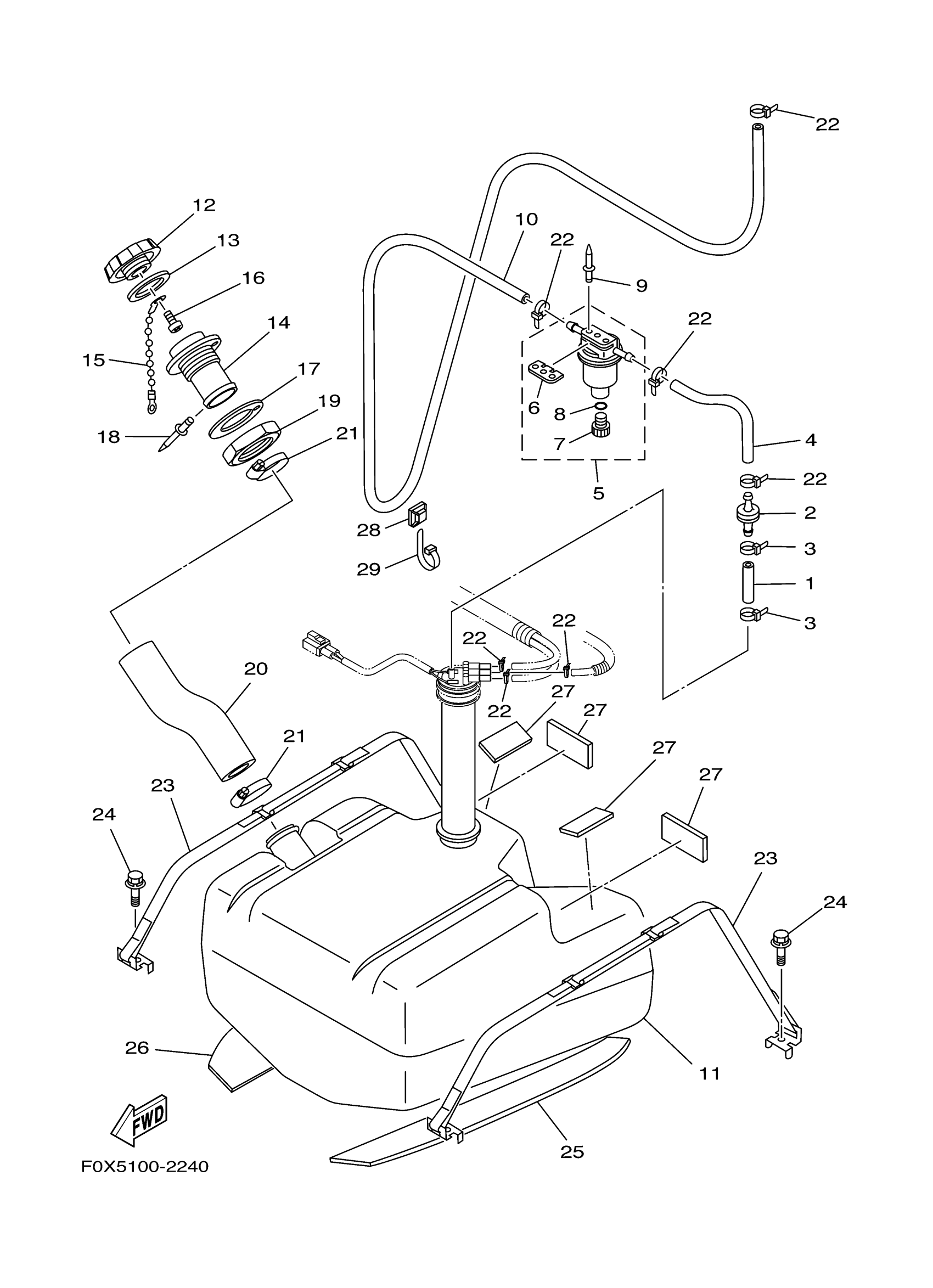

Yamaha GP800AA (GP800R) F0W3 2002 FUEL TANK Diagram
#
1
HOSE, AIR VENT 3
GP7-U785H-00-00
Unavailable
2
CHECK VALVE
EU0-67767-31-00
Unavailable
3
CLAMP
90465-10098-00
Unavailable
4
HOSE, AIR VENT 3
GJ3-U7856-10-00
Unavailable
5
FILTER, VENT ASSY
F2F-6214A-00-00
Unavailable
6
. PLATE, FILTER
EW2-62142-00-00
Unavailable
7
. PLUG, DRAIN
70R-24543-00-00
Unavailable
8
. O-RING
70R-24489-00-00
Unavailable
9
RIVET, BLIND
90267-489U2-00
Unavailable
10
HOSE, AIR VENT
GP7-U785G-10-00
Unavailable
11
TANK, FUEL
F0X-U7711-00-00
Unavailable
12
CAP, FUEL FILLER
GP7-U7831-01-00
Unavailable
13
PACKING
GP7-U7832-01-00
Unavailable
14
SOCKET
GP7-U7833-00-00
Unavailable
15
CHAIN BALL
GP7-U7835-00-00
Unavailable
16
SCREW, TRUSS HEAD TAPPING
90169-049U1-00
Unavailable
17
PACKING FUEL FILLER
GP7-U7834-00-00
Unavailable
18
RIVET, BLIND
90267-329UR-00
Unavailable
19
NUT, FUEL FILLER
GP7-U783F-00-00
Unavailable
20
HOSE
F0X-U7844-10-00
Unavailable
21
BAND, HOSE 55
90601-155U4-00
Unavailable
22
CLAMP
90465-10098-00
Unavailable
23
BELT, TANK 1
F0X-67743-00-00
Unavailable
24
BOLT, WITH WASHER
90119-08800-00
Unavailable
25
MAT 1
F0X-U759B-00-00
Unavailable
26
MAT 2
F0X-U759C-00-00
Unavailable
27
MAT 2
GJ1-U759C-00-00
Unavailable
28
BASE, CLAMP
90600-900U6-00
Unavailable
29
CLAMP(JN6)
90464-40825-00
Unavailable
