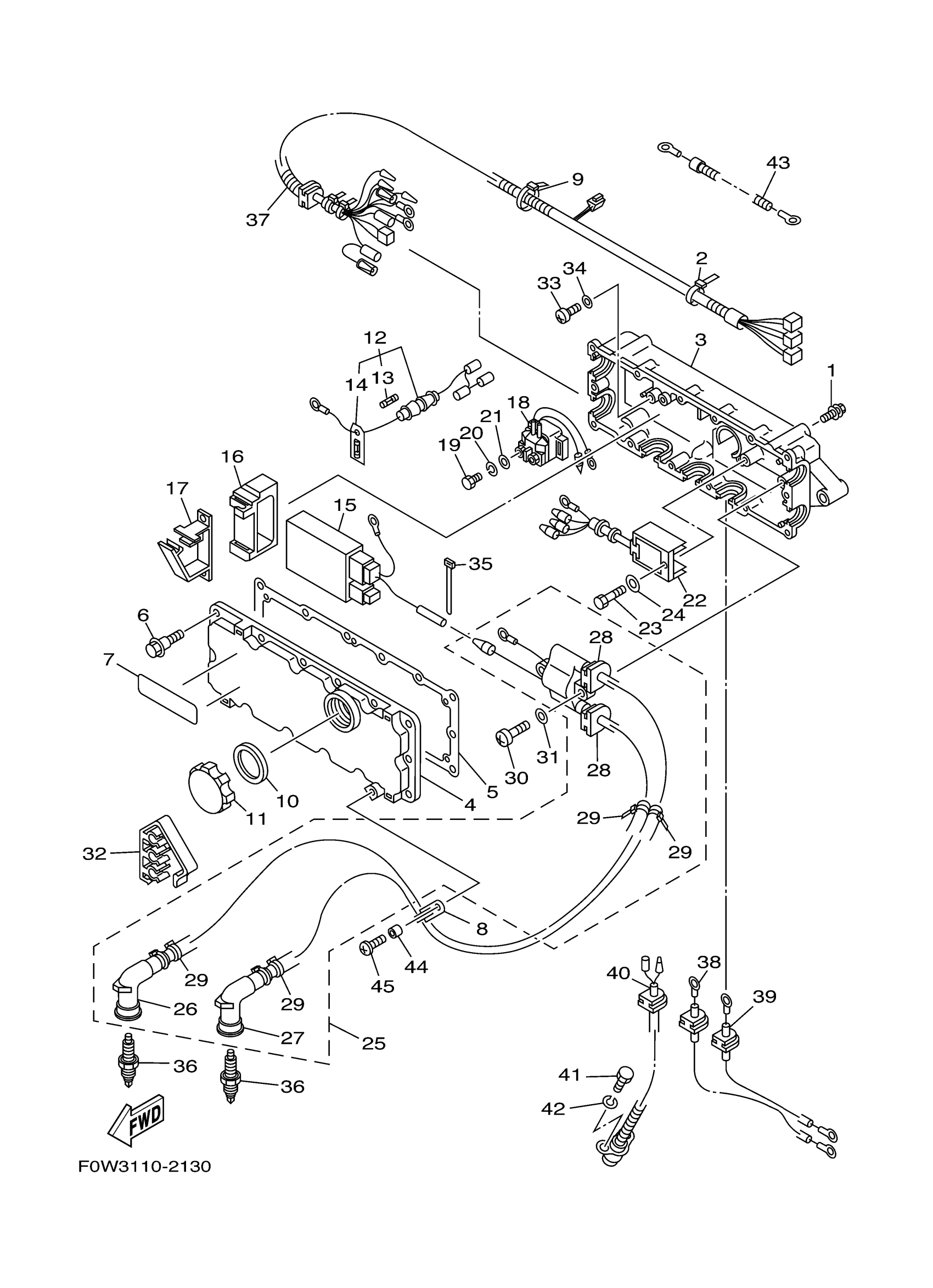

Yamaha GP800AA (GP800R) F0W3 2002 ELECTRICAL 1 Diagram

#

Description

Price

1

BOLT, WITH WASHER

90119-08800-00

Unavailable

2

CLAMP(62T)

90465-12M56-00

$8.49

3

HOUSING

66E-8552A-00-94

Unavailable

4

COVER, CASE

66E-8552E-00-00

Unavailable

5

GASKET, TERMINAL

66E-81921-00-00

Unavailable

6

BOLT

90109-05MA0-00

$7.49

7

MARK 3

6R7-83623-40-00

Unavailable

8

CLAMP

90465-12M53-00

Unavailable

9

CLAMP(6E8)

90465-13M39-00

$5.40

10

GASKET

6M6-81844-00-00

Unavailable

11

CAP

6M6-8132W-00-00

Unavailable

12

FUSE HOLDER ASSY

66E-82150-00-00

Unavailable

13

FUSE (10A)

1E6-82151-00-00

$7.99

14

FUSE SPEAR (10A)

6K8-82159-01-00

Unavailable

15

C.D.I. UNIT ASSY

66E-85540-00-00

Unavailable

16

BAND

64X-85546-00-00

Unavailable

17

CLAMP

90464-06M29-00

Unavailable

18

STARTER RELAY ASSY

68N-81940-00-00

Unavailable

19

BOLT

97085-06010-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

WASHER, PLAIN (646)

92990-06600-00

Unavailable

22

RECTIFIER & REGULATOR ASSY

63M-81960-00-00

Unavailable

23

BOLT(GH1)

97080-06012-00

Unavailable

24

WASHER, PLAIN (646)

92990-06600-00

Unavailable

25

IGNITION COIL ASSY

64X-85570-01-00

Unavailable

26

. CAP, PLUG

62E-82371-11-00

Unavailable

27

. CAP, PLUG

62E-82371-11-00

Unavailable

28

GROMMET

90480-06M43-00

Unavailable

29

CLAMP

90465-10098-00

Unavailable

30

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

31

WASHER, PLAIN (646)

92990-06600-00

Unavailable

32

CLAMP, CORD

65U-81317-10-00

Unavailable

33

SCREW, PAN HEAD

98580-06016-00

Unavailable

34

WASHER, PLAIN (646)

92990-06600-00

Unavailable

35

CLAMP

90465-10098-00

Unavailable

36

BR8ES NGK SCREW TOP 4PK

BR8-ES000-00-00

Unavailable

37

EXTENSION, WIRE LEAD

68A-82553-10-00

Unavailable

38

WIRE, LEAD

62E-82117-20-00

Unavailable

39

WIRE, LEAD

68A-82117-10-00

Unavailable

40

THERMO SWITCH ASSY

68A-82560-01-00

Unavailable

41

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

42

WASHER, SPRING

92995-06100-00

Unavailable

43

WIRE, LEAD

61L-82117-00-00

Unavailable

44

COLLAR

90387-06M05-00

Unavailable

45

SCREW, TAPPING

97780-60425-00

Unavailable
