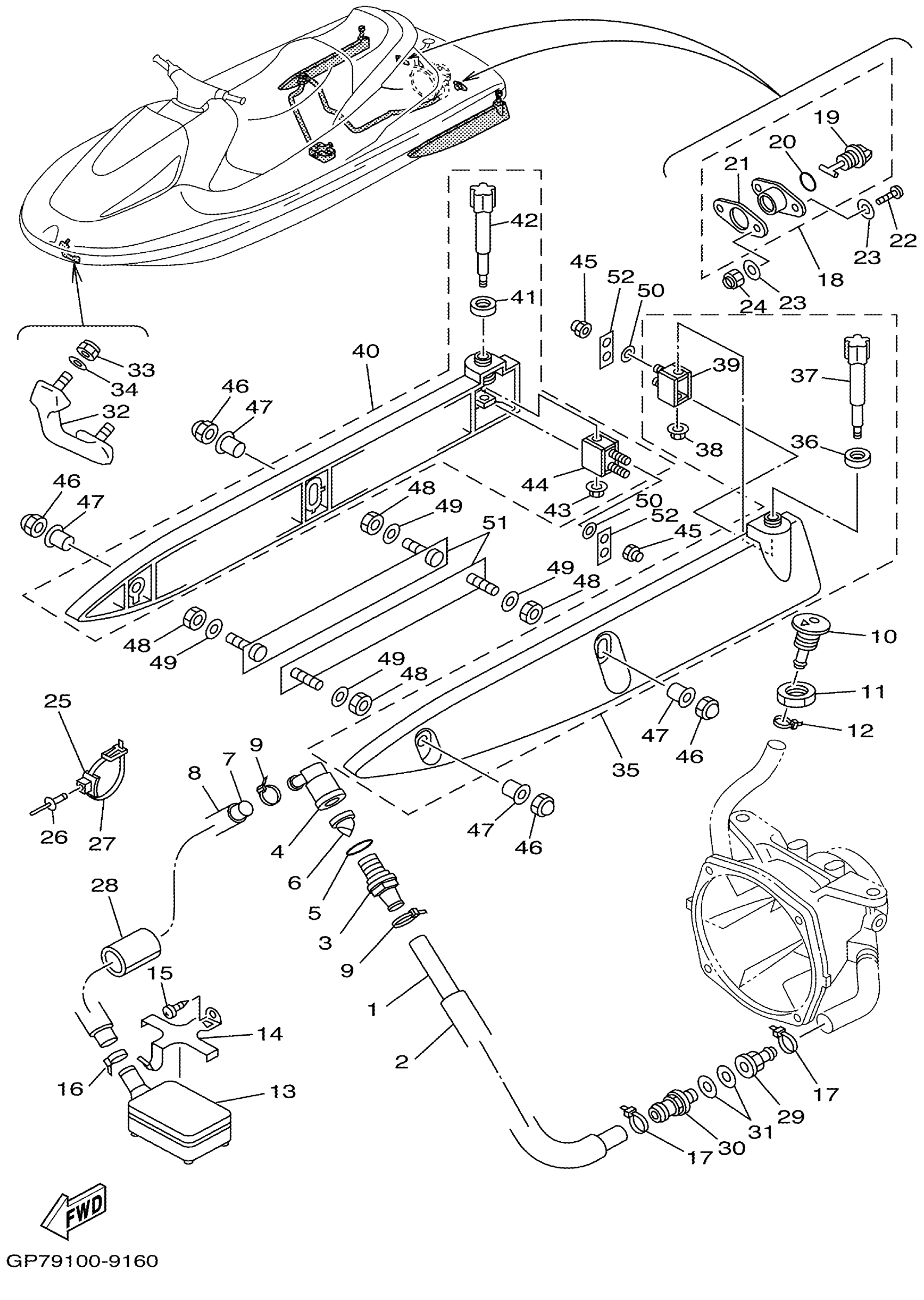

Yamaha GP760Y (GP760) GP7C3 2000 HULL DECK Diagram
#
1
HOSE
90445-19M04-00
Unavailable
2
HOSE
90446-27M73-00
$21.99
3
JOINT, HOSE
68N-5112T-00-00
Unavailable
4
JOINT, HOSE 2
63M-51165-00-00
Unavailable
5
O-RING
93210-22ME5-00
Unavailable
6
VALVE 1
63M-5316M-00-00
Unavailable
7
HOSE
90445-19M01-00
Unavailable
8
HOSE(63M)
90446-27M55-00
$16.99
9
CLAMP (6E5)
90465-13M11-00
$8.49
10
SPOUT
FN8-6269B-00-00
Unavailable
11
NUT
EU0-61652-00-00
Unavailable
12
CLIP
90600-91755-00
Unavailable
13
STRAINER, BILGE
GD0-U761D-00-00
Unavailable
14
BASE, STRAINER BLIGE
EW2-67618-00-00
Unavailable
15
SCREW, TAPPING
9778R-50112-00
Unavailable
16
BAND
90601-200U1-00
Unavailable
17
BAND
90601-200U1-00
Unavailable
18
DRAIN PLUG ASSY
EU0-62280-00-00
Unavailable
19
. PLUG, DRAIN
EU0-62282-00-00
Unavailable
20
. O-RING
EU0-62283-00-00
Unavailable
21
. PACKING DRAIN (EU0)
EU0-62285-01-00
Unavailable
22
SCREW, PANHEAD (A93)
98580-05525-00
Unavailable
23
WASHER
9299R-05200-00
Unavailable
24
NUT, FLANGE
9572R-05300-00
Unavailable
25
CLAMP COMP (EU0)
90600-91736-00
Unavailable
26
RIVET, BLIND
90267-48802-00
Unavailable
27
CLAMP
90464-32801-00
Unavailable
28
PACKING, HOSE 2
GJ1-U7578-22-00
Unavailable
29
CONNECTION, THRU-HULL 1/4
90604-80759-00
Unavailable
30
CONNECTION, THROUGH HALL (GD0)
90604-80775-00
Unavailable
31
GASKET
90430-13909-00
Unavailable
32
BOW EYE 1
GU5-61624-00-00
Unavailable
33
NUT, NYLON (6J8)
95780-08300-00
Unavailable
34
WASHER
9299R-08200-00
Unavailable
35
STABILIZER LH
GP7-U883N-10-00
Unavailable
36
. NUT, LOCK 2
GP7-U883X-01-00
Unavailable
37
KNOB
GP7-U8354-05-00
Unavailable
38
NUT, FLANGE
95720-05300-00
Unavailable
39
. BRACKET 2
GP7-U8572-02-00
Unavailable
40
STABILIZER RH
GP7-U883P-10-00
Unavailable
41
. NUT, LOCK 2
GP7-U883X-01-00
Unavailable
42
KNOB
GP7-U8354-05-00
Unavailable
43
NUT, FLANGE
95720-05300-00
Unavailable
44
. BRACKET 2
GP7-U8572-02-00
Unavailable
45
NUT, NYLON
9572R-06300-00
Unavailable
46
NUT
90179-08978-00
Unavailable
47
COLLAR
90387-08801-00
Unavailable
48
NUT
90170-089U1-00
Unavailable
49
WASHER
9299R-08200-00
Unavailable
50
WASHER
9299R-06200-00
Unavailable
51
BRACKET, STABILIZER
GP7-U883T-01-00
Unavailable
52
PACKING,STABILIZER
GP7-U883U-01-00
Unavailable
