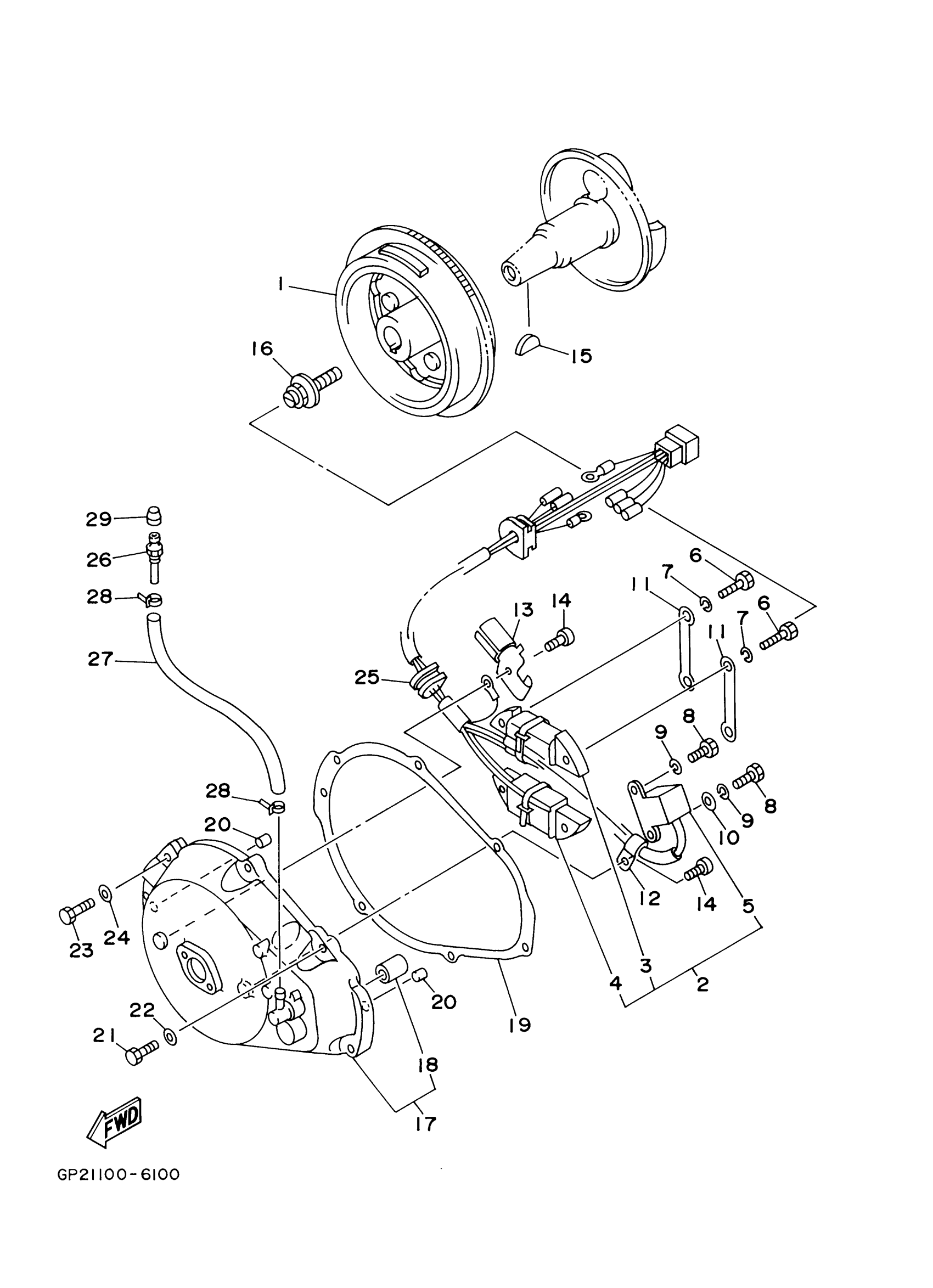

Yamaha GP760Y (GP760) GP7C3 2000 GENERATOR Diagram
#
1
ROTOR ASSEMBLY
64X-85550-00-00
Unavailable
2
COIL ASSEMBLY
64X-85521-01-00
Unavailable
3
. COIL, CHARGE
64X-85520-00-00
Unavailable
4
. COIL, LIGHTING
62T-85533-00-00
Unavailable
5
. COIL, PULSER
64X-85580-00-00
Unavailable
6
BOLT, HEXAGON
97013-05020-00
$3.55
7
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
8
BOLT, HEXAGON
97013-05012-00
$1.11
9
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
10
WASHER, PLATE
90201-05M09-00
Unavailable
11
COVER
64X-85525-00-00
Unavailable
12
CLAMP
90465-06M90-00
Unavailable
13
CLAMP
90465-06M65-00
Unavailable
14
SCREW PAN HEAD
98580-06010-00
$8.49
15
KEY, WOODRUFF
90280-05001-00
$12.49
16
BOLT(63M)
90109-10M72-00
Unavailable
17
COVER, FLYWHEEL
64X-81337-00-8S
Unavailable
18
. BUSH, SOLID
90380-12M29-00
Unavailable
19
. GASKET, HOLE COVER
6M6-81365-A0-00
Unavailable
20
PIN, DOWEL (614)
93606-12019-00
Unavailable
21
BOLT
90101-06M27-00
Unavailable
22
WASHER, PLAIN (646)
92990-06600-00
Unavailable
23
BOLT(JF7)
97080-06030-00
Unavailable
24
WASHER, PLAIN (646)
92990-06600-00
Unavailable
25
GROMMET
90480-23M69-00
Unavailable
26
NIPPLE, GREASE
61L-5169A-00-00
Unavailable
27
HOSE (L445)
90445-09M21-00
Unavailable
28
CLAMP
90465-10098-00
Unavailable
29
CAP, GREASE NIPPLE
663-45119-01-00
Unavailable
