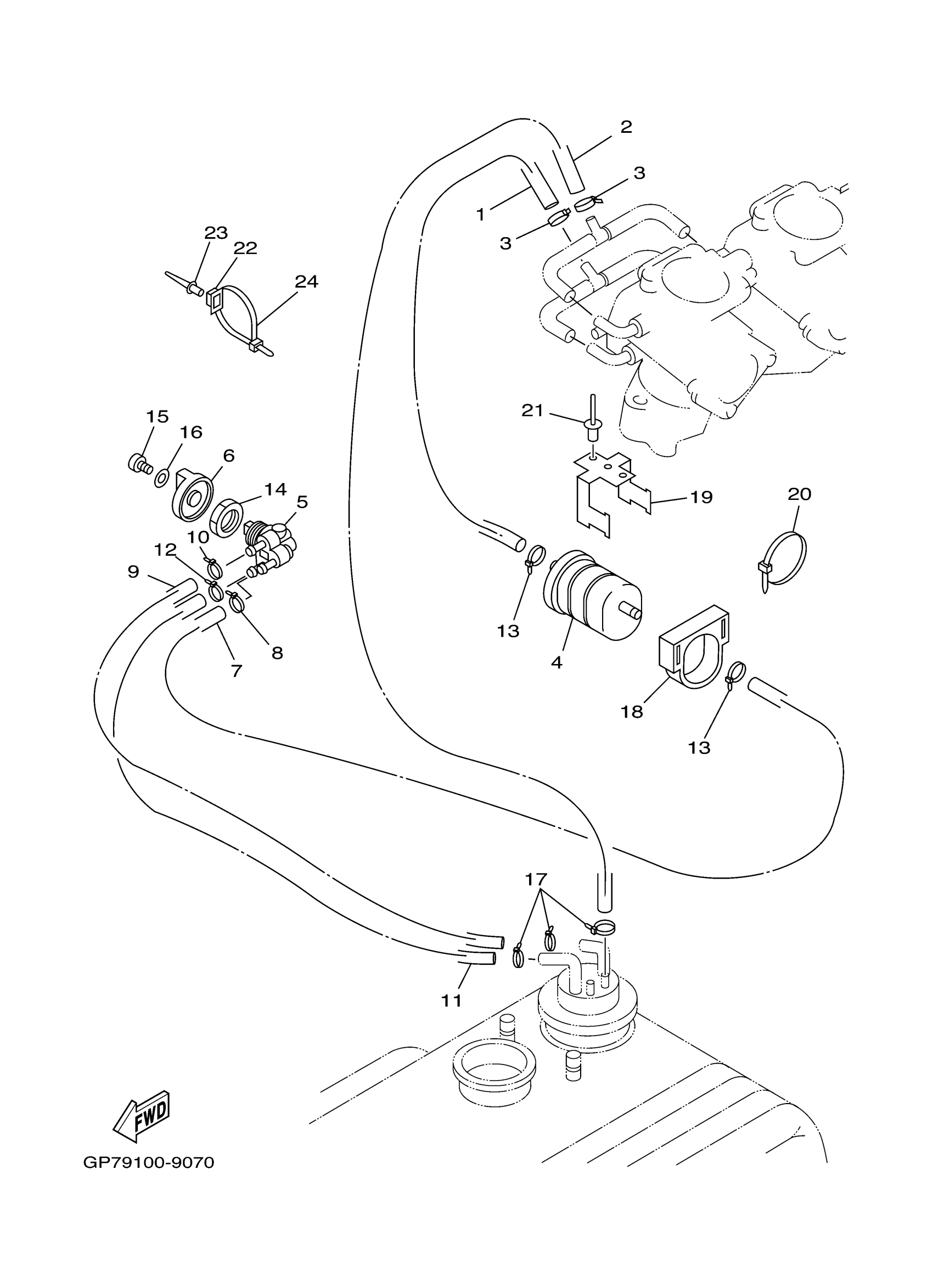

Yamaha GP760Y (GP760) GP7C3 2000 FUEL Diagram

#

Description

Price

1

HOSE (L1040)

90445-10MA9-00

$68.99

2

HOSE (L1040)

90445-10MA9-00

$68.99

3

CLAMP

90465-10098-00

Unavailable

4

FILTER ASSY

6K8-24560-21-00

Unavailable

5

FUEL COCK ASSY 1

6K8-24500-03-00

Unavailable

6

LEVER, COCK

6K8-24524-10-00

Unavailable

7

HOSE (L400)

90445-10M43-00

Unavailable

8

CLAMP

90465-10098-00

Unavailable

9

HOSE (L1040)

90445-10MA9-00

$68.99

10

CLAMP

90465-10098-00

Unavailable

11

HOSE (L400)

90445-10M43-00

Unavailable

12

CLAMP

90465-10098-00

Unavailable

13

CLAMP

90465-10098-00

Unavailable

14

NUT

90170-22M11-00

Unavailable

15

SCREW, PAN HEAD (E56)

98580-04010-00

$8.49

16

WASHER, PLAIN (646)

92990-04600-00

Unavailable

17

CLAMP

90465-10098-00

Unavailable

18

HOLDER, FILTER

EU0-U7817-00-00

Unavailable

19

BRACKET, FUEL FILTER

FN8-67816-00-00

Unavailable

20

BAND

90601-200U1-00

Unavailable

21

RIVET (EU0)

90267-48938-00

Unavailable

22

CLAMP COMP (EU0)

90600-91736-00

Unavailable

23

RIVET, BLIND

90267-48802-00

Unavailable

24

CLAMP

90464-32801-00

Unavailable
