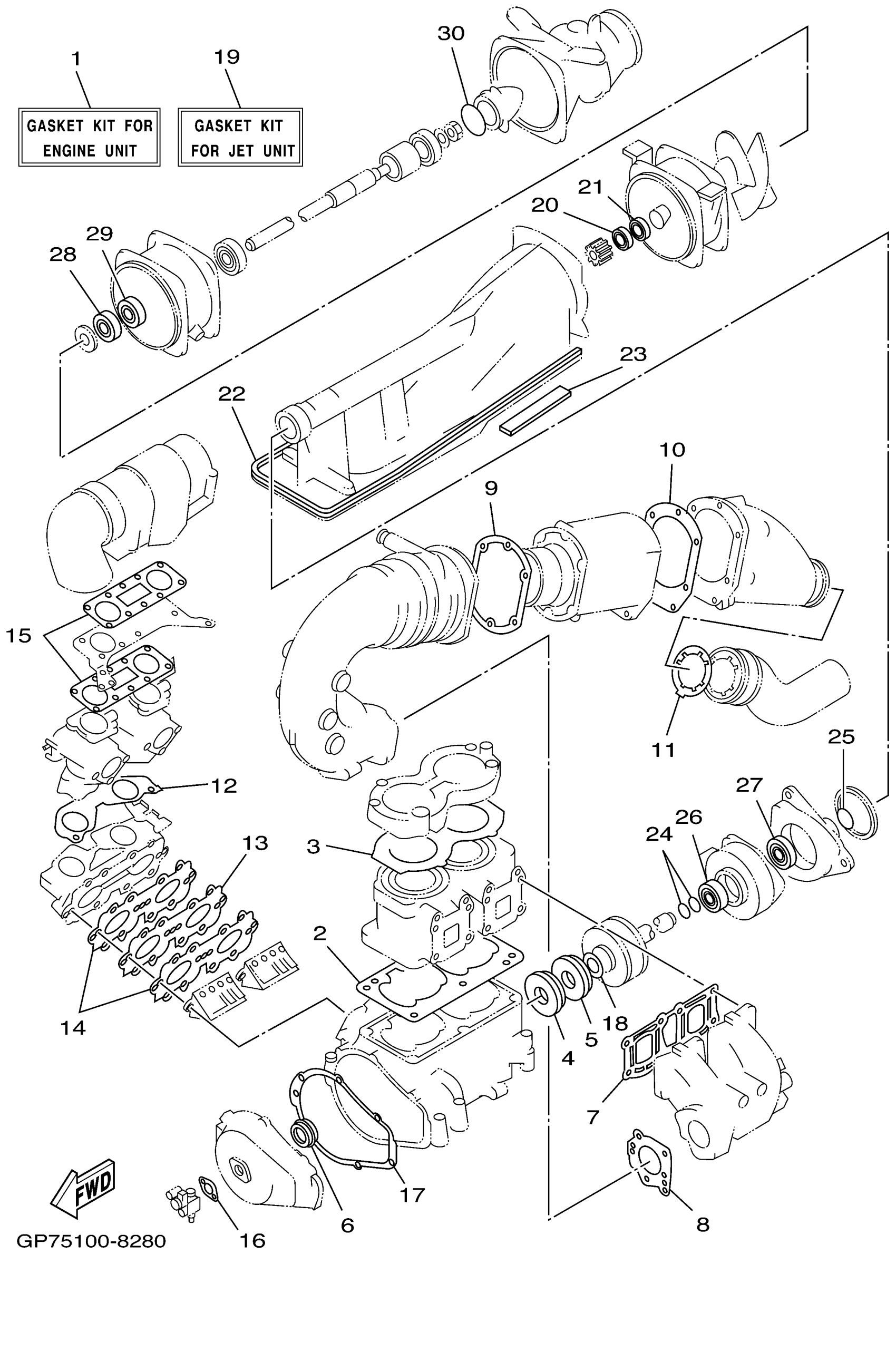

Yamaha GP760X (WAVE RUNNER GP760) GP79 1999 REPAIR KIT 1 Diagram

#

Description
Price

1

GASKET KIT FOR ENGINE UNIT

64X-W0001-00-00

Unavailable

2

GASKET, CYLINDER

6M6-11351-A2-00

$18.15

3

GASKET, CYLINDER HEAD

64X-11181-00-00

$81.80

4

. OIL SEAL

93102-36M33-00

$15.55

5

. OIL SEAL

93101-36M46-00

$17.41

6

. OIL SEAL

93103-32M01-00

$14.81

7

GASKET, EXHAUST PIPE

62T-14613-01-00

$27.26

8

. GASKET, MUFFLER DAMPER 2

64X-14749-00-00

Unavailable

9

GASKET, EXHAUST OUTER COVER

62T-41114-01-00

$16.99

10

GASKET, EXHAUST OUTER COVER

64X-41124-01-00

Unavailable

11

. GASKET, EXHAUST PIPE

64X-14623-00-00

$5.45

12

. GASKET, MANIFOLD

64X-13556-00-00

$11.85

13

. PLATE,REED VALVE

62T-13624-00-00

$19.68

14

. GASKET

62T-13566-00-00

$8.88

15

. GASKET, AIR COOLER COVER 1

64X-13674-00-00

$5.91

16

. GASKET, PUMP CASE

6R8-13116-A0-00

$2.95

17

. GASKET, HOLE COVER

6M6-81365-A0-00

$37.49

18

SEAL

62T-45127-01-00

Unavailable

19

GASKET KIT FOR JET UNIT

65V-W0001-20-00

Unavailable

20

OIL SEAL

93102-17M49-00

Unavailable

21

OIL SEAL

93102-17M50-00

Unavailable

22

. FELT, PACKING

6R8-51367-01-00

$10.36

23

. FELT, PACKING

63N-51368-00-00

Unavailable

24

O-RING(6R7)

93210-17MA4-00

Unavailable

25

O-RING

93210-35M72-00

Unavailable

26

OIL SEAL(62T)

93101-25M55-00

Unavailable

27

OIL SEAL

93101-24001-00

Unavailable

28

OIL SEAL(6R7)

93102-25M34-00

Unavailable

29

OIL SEAL(6R7)

93101-25M50-00

Unavailable

30

. O-RING

93210-46M16-00

$7.15
