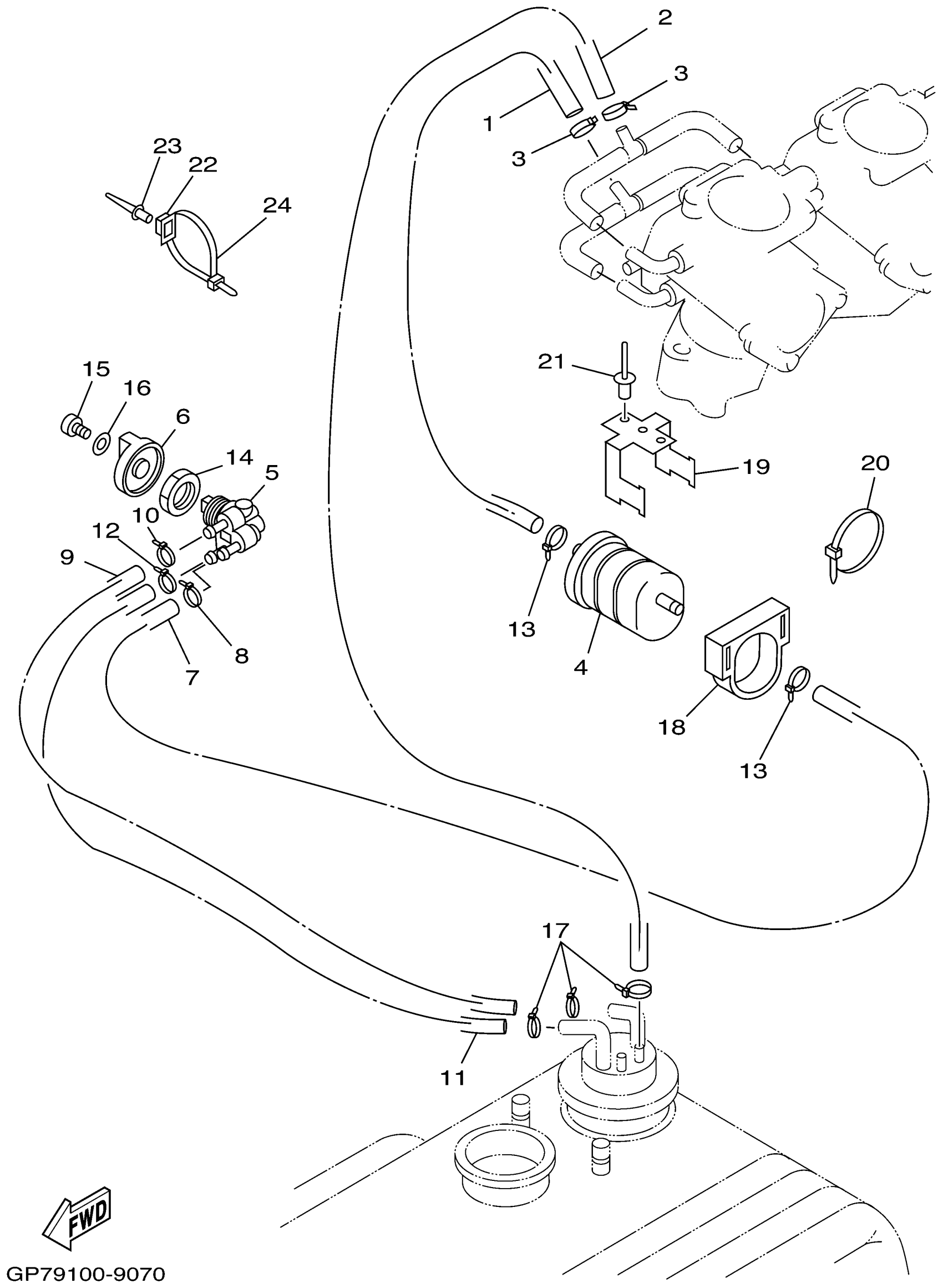

Yamaha GP760X (WAVE RUNNER GP760) GP79 1999 FUEL Diagram

#

Description
Price

1

HOSE (L1040)

90445-10MA9-00

$56.27

2

HOSE (L1040)

90445-10MA9-00

$56.27

3

CLAMP

90465-10098-00

$1.68

4

FILTER ASSY

6K8-24560-21-00

$28.64

5

FUEL COCK ASSY 1

6K8-24500-03-00

Unavailable

6

LEVER, COCK

6K8-24524-10-00

$11.84

7

HOSE (L400)

90445-10M43-00

$5.96

8

CLAMP

90465-10098-00

$1.68

9

HOSE (L1040)

90445-10MA9-00

$56.27

10

CLAMP

90465-10098-00

$1.68

11

HOSE (L400)

90445-10M43-00

$5.96

12

CLAMP

90465-10098-00

$1.68

13

CLAMP

90465-10098-00

$1.68

14

NUT

90170-22M11-00

Unavailable

15

SCREW, PAN HEAD (E56)

98580-04010-00

$5.75

16

WASHER, PLAIN (646)

92990-04600-00

Unavailable

17

CLAMP

90465-10098-00

$1.68

18

HOLDER, FILTER

EU0-U7817-00-00

$13.63

19

BRACKET, FUEL FILTER

FN8-67816-00-00

$16.99

20

BAND

90601-200U1-00

$2.77

21

RIVET (EU0)

90267-48938-00

$5.00

22

CLAMP COMP (EU0)

90600-91736-00

Unavailable

23

RIVET, BLIND

90267-48802-00

$1.98

24

BAND (EU0)

90601-20009-00

$6.36
