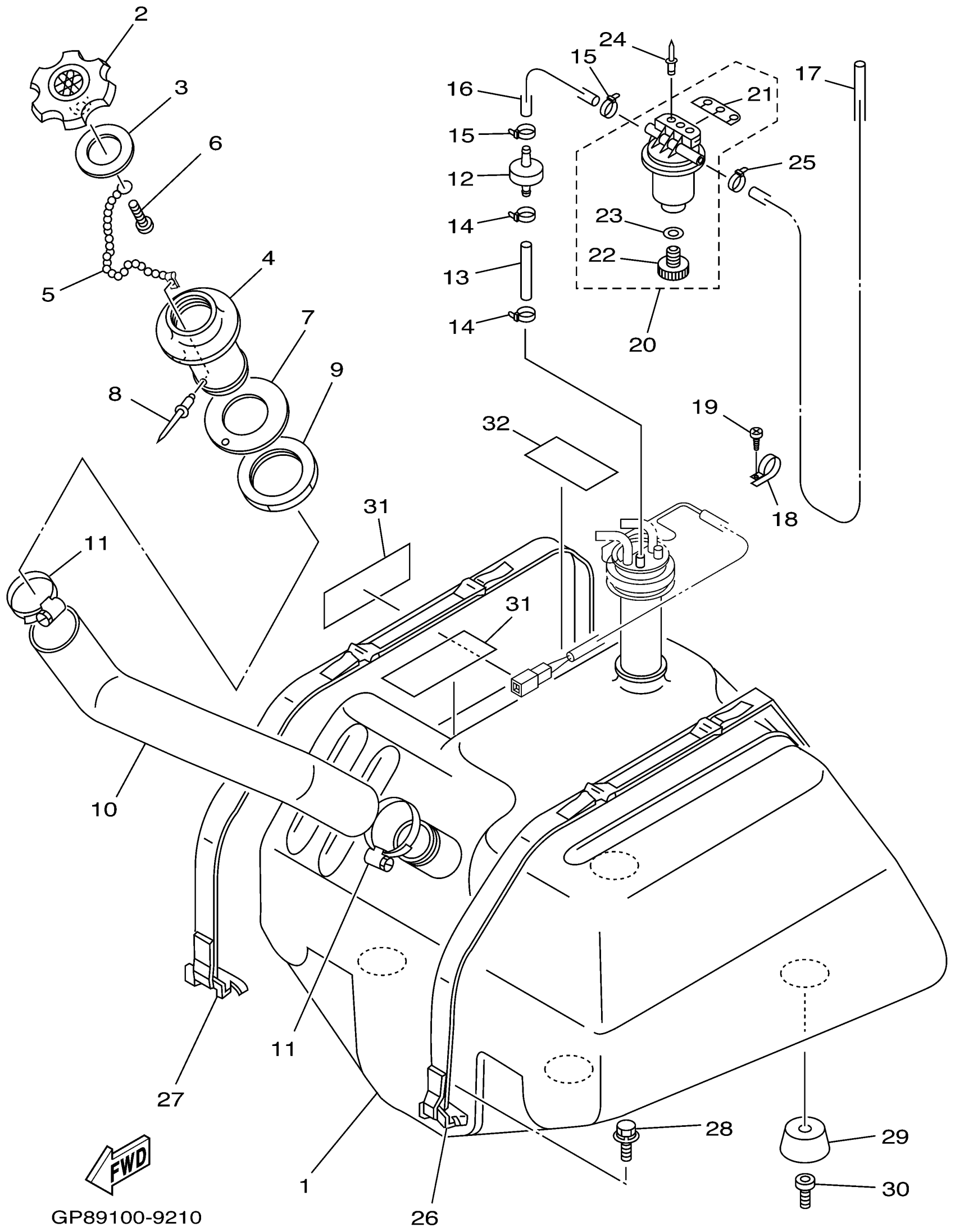

Yamaha GP760X (WAVE RUNNER GP760) GP79 1999 FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL

GU2-U7711-00-00

Unavailable

2

CAP, FUEL FILLER

GP7-U7831-01-00

$26.54

3

PACKING

GP7-U7832-01-00

$5.62

4

SOCKET

GP7-U7833-00-00

$37.32

5

CHAIN BALL

GP7-U7835-00-00

$4.72

6

SCREW, TRUSS HEAD TAPPING

90169-049U1-00

$1.29

7

PACKING FUEL FILLER

GP7-U7834-00-00

$12.34

8

RIVET, BLIND

90267-329UR-00

$1.23

9

NUT, FUEL FILLER

GP7-U783F-00-00

$4.96

10

HOSE

GP8-U7844-00-00

Unavailable

11

BAND, HOSE 55

90601-155U4-00

$6.17

12

CHECK VALVE

EU0-67767-31-00

$30.97

13

HOSE, AIR VENT 3

GP7-U785H-00-00

$8.19

14

CLAMP

90465-10098-00

$2.24

15

CLAMP

90465-10098-00

$2.24

16

HOSE, AIR VENT 3

GP7-U7856-00-00

Unavailable

17

HOSE, AIR VENT

GP7-U785G-10-00

$8.19

18

CLIP, NYLON 18

90600-918U3-00

Unavailable

19

SCREW, PANHEAD TAPPING (J20)

97780-60116-00

Unavailable

20

FILTER, VENT ASSY

F2F-6214A-00-00

$52.14

21

. PLATE, FILTER

EW2-62142-00-00

$44.76

22

. PLUG, DRAIN

70R-24543-00-00

$8.94

23

. O-RING

70R-24489-00-00

$4.93

24

RIVET (EU0)

90267-48938-00

$4.72

25

CLAMP

90465-10098-00

$2.24

26

BELT, TANK 1

GJ1-67743-01-00

$79.09

27

BELT, TANK 1

GJ8-67743-01-00

Unavailable

28

BOLT, WITH WASHER

90119-08800-00

$4.31

29

DAMPER, FUEL TANK

GH1-U782B-00-00

Unavailable

30

BOLT, HEXAGON SOCKET HEAD

90110-089U1-00

Unavailable

31

MAT 1

GJ1-U759B-00-00

Unavailable

32

MAT 2

GJ1-U759C-00-00

$29.84
