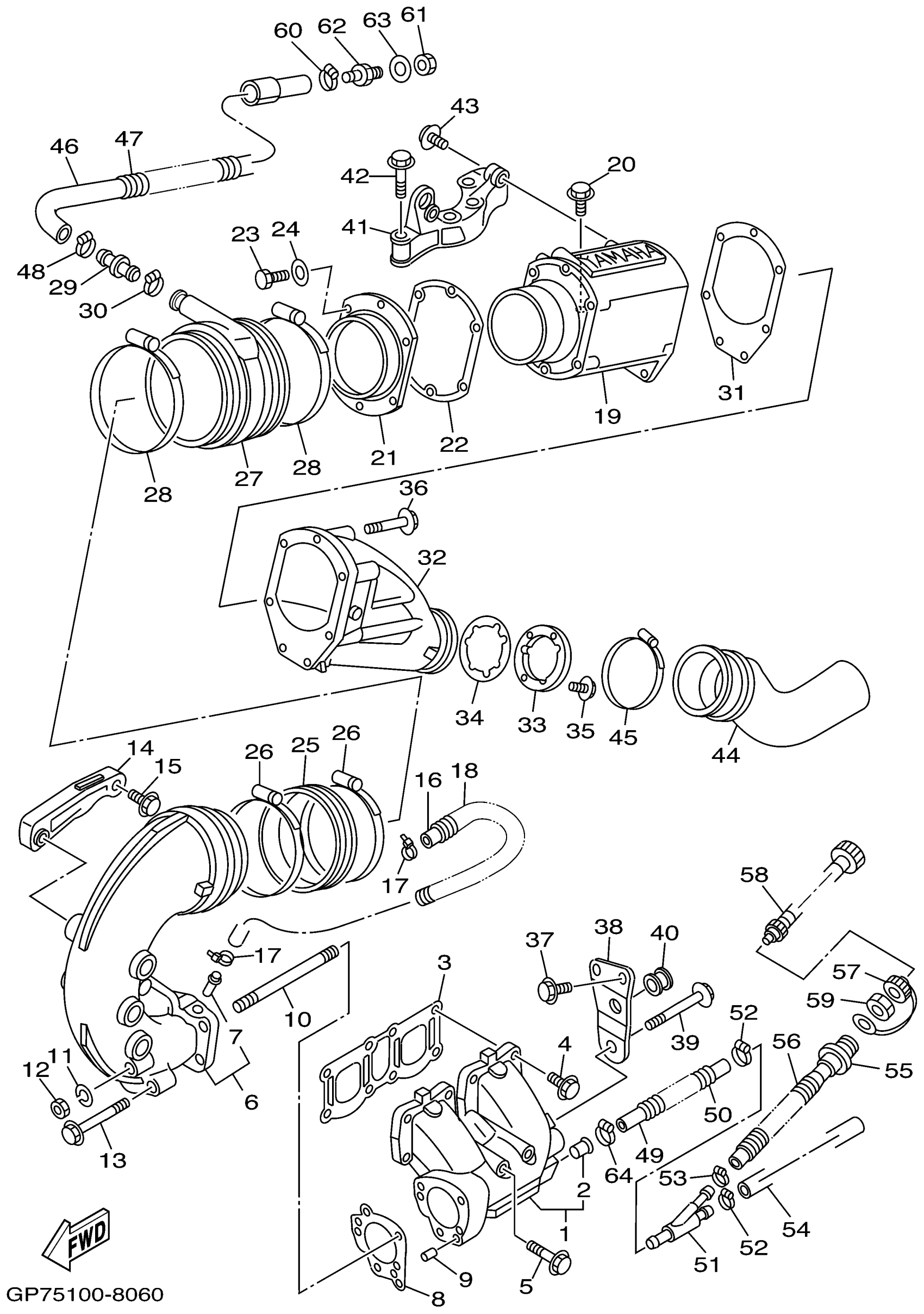

Yamaha GP760X (WAVE RUNNER GP760) GP79 1999 EXHAUST 1 Diagram

#

Description
Price

1

MUFFLER L

64X-14711-00-94

Unavailable

2

. NIPPLE

6K8-51129-00-00

$9.62

3

GASKET, EXHAUST PIPE

62T-14613-01-00

$27.26

4

BOLT, FLANGE

90105-10M60-00

$5.92

5

BOLT, WASHER BASED

90105-10M72-00

Unavailable

6

RING,JOINT

64X-14712-00-94

Unavailable

7

. NIPPLE

6K8-51129-00-00

$9.62

8

. GASKET, MUFFLER DAMPER 2

64X-14749-00-00

Unavailable

9

PIN, DOWEL(62T)

93605-12M21-00

Unavailable

10

BOLT, STUD

90116-08M59-00

Unavailable

11

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

12

NUT (661)

95380-08600-00

$6.14

13

BOLT, WITH WASHER

90119-08M11-00

$2.73

14

STAY, MUFFLER 2

64X-14781-00-94

Unavailable

15

BOLT, WASHER BASED

90105-10M73-00

Unavailable

16

HOSE 2

63M-12577-00-00

Unavailable

17

HOSE CLAMP ASSY(62T)

90450-14M05-00

Unavailable

18

HOSE(61L)

90446-20M31-00

Unavailable

19

MUFFLER 2

64X-14721-00-94

$449.98

20

BOLT, FLANGE

90105-10M60-00

$5.92

21

OUTER COVER, EXHAUST

62T-41113-00-8S

$107.56

22

GASKET, EXHAUST OUTER COVER

62T-41114-01-00

$16.99

23

BOLT(62Y)

97013-06025-00

Unavailable

24

WASHER, PLAIN (646)

92990-06600-00

Unavailable

25

JOINT, EXHAUST 2

62T-14625-00-00

$62.23

26

HOSE CLAMP ASSY(62T)

90450-99M06-00

Unavailable

27

JOINT, EXHAUST 1

64X-14615-00-00

Unavailable

28

HOSE CLAMP ASSY

90450-99M18-00

Unavailable

29

JOINT, HOSE 2

64X-12582-00-00

Unavailable

30

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

31

GASKET, EXHAUST OUTER COVER

64X-41124-01-00

Unavailable

32

OUTER COVER, EXHAUST

64X-41123-00-9M

Unavailable

33

SPACER

64X-14763-00-94

Unavailable

34

. GASKET, EXHAUST PIPE

64X-14623-00-00

$5.45

35

SCREW, WITH WASHER

97985-06220-00

$3.18

36

BOLT, WASHER BASED

90105-08M70-00

Unavailable

37

BOLT, WASHER BASED

90105-08M71-00

Unavailable

38

PLATE, STOPPER

64X-14717-01-00

Unavailable

39

BOLT, WITH WASHER

90119-08M37-00

Unavailable

40

GROMMET

90480-20M05-00

$3.26

41

STAY, MUFFLER 1

62T-14771-00-00

$92.41

42

BOLT, WITH WASHER

90119-10M72-00

$5.55

43

BOLT, WASHER BASED

90105-10M45-00

$5.45

44

PIPE, OUTLET

65V-14752-00-00

Unavailable

45

HOSE CLAMP ASSY

90450-90001-00

$36.99

46

HOSE 3

65V-12578-00-00

Unavailable

47

HOSE

90446-27M73-00

Unavailable

48

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

49

HOSE

90445-14M03-00

Unavailable

50

HOSE(61L)

90446-20M31-00

Unavailable

51

JOINT, HOSE 1

64X-12581-00-00

$11.35

52

HOSE CLAMP ASSY(62T)

90450-14M05-00

Unavailable

53

HOSE CLAMP ASSY

90450-18M09-00

$9.82

54

HOSE

90445-14M03-00

Unavailable

55

JOINT ASSY

63M-12580-00-00

$99.98

56

HOSE (L420)

90446-24M89-00

$9.08

57

CAP,1

682-84385-01-00

$9.08

58

CONDUCTION ASSY (US)

67X-E2590-00-00

$2.08

59

NUT

EU0-61652-00-00

$11.48

60

BAND, HOSE 18

90601-118UF-00

$2.07

61

NUT, THRU-HULL

GP7-672A4-00-00

Unavailable

62

THROUGH HULL CONNECTION 3/8-12

90604-80797-00

Unavailable

63

GASKET(GJ1)

90430-16910-00

Unavailable

64

HOSE CLAMP ASSY(62T)

90450-14M05-00

Unavailable
