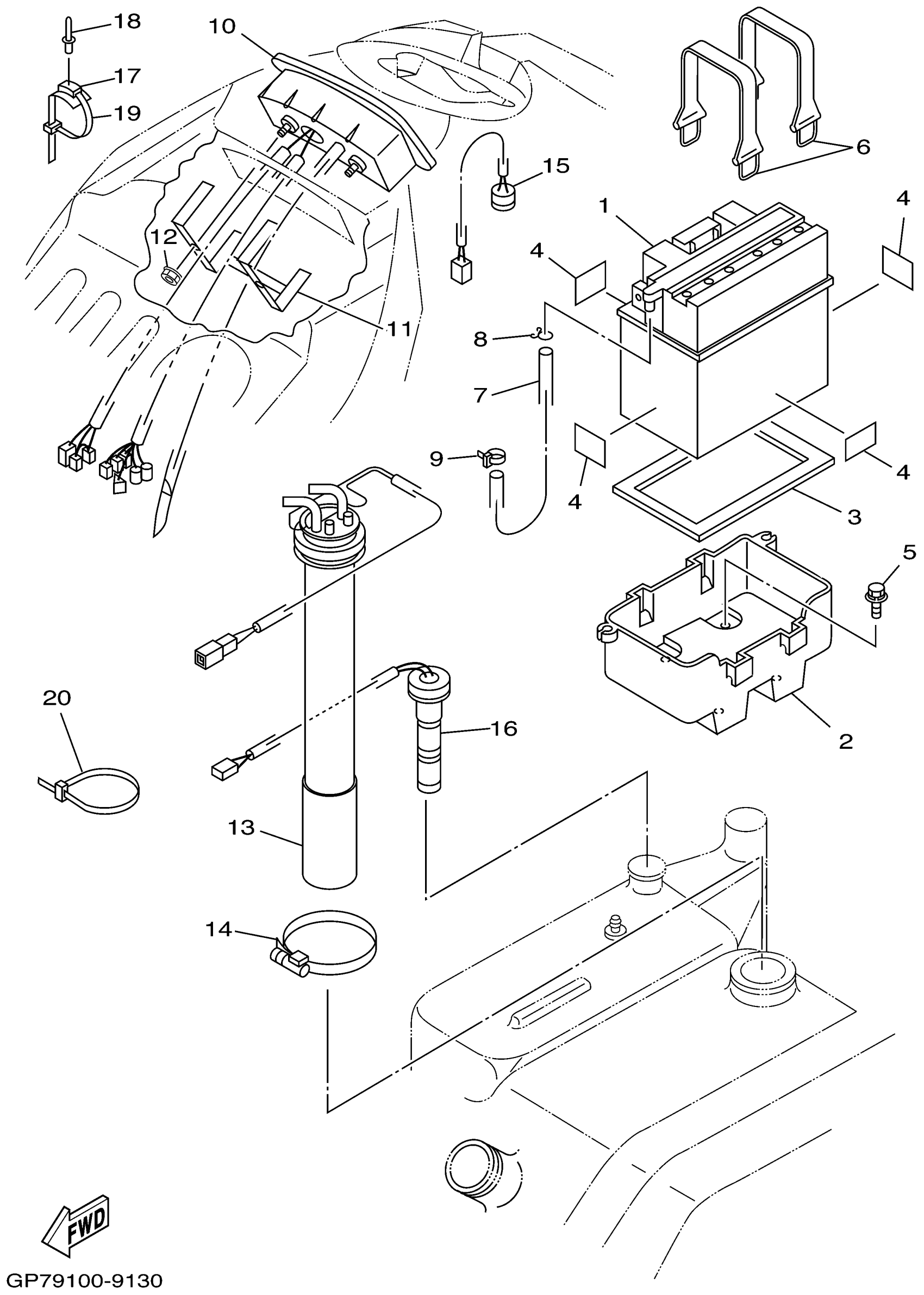

Yamaha GP760X (WAVE RUNNER GP760) GP79 1999 ELECTRICAL 2 Diagram
#
Description
Price
1
YB16CLB YUASA BATTERY
YB1-6CLB0-00-00
Unavailable
2
CASE, BATTERY
GP7-U8211-00-00
Unavailable
3
PAD, BATTERY
F1S-U8221-00-00
Unavailable
5
BOLT, WITH WASHER
90119-069US-00
Unavailable
6
BAND,BATTERY 1
EU0-U821D-00-00
Unavailable
7
HOSE AIR VENT
GP7-U785J-00-00
Unavailable
8
CLIP
90467-089U1-00
Unavailable
9
CLAMP
90465-10098-00
Unavailable
10
METER ASSY (MPH)
GP7-6820A-06-00
Unavailable
11
BRACKET, METER
GP7-68238-10-00
Unavailable
12
NUT, FLANGE
95720-05300-00
Unavailable
13
SENDER, FUEL
F0V-U824B-04-00
Unavailable
14
BAND, HOSE 62
90601-162U5-00
Unavailable
15
BUZZER
GP7-U8341-00-00
Unavailable
16
SENDER, OIL
F0D-U824C-21-00
Unavailable
17
CLAMP COMP (EU0)
90600-91736-00
Unavailable
18
RIVET, BLIND
90267-48802-00
Unavailable
19
BAND (EU0)
90601-20009-00
Unavailable
20
BAND
90601-200U1-00
Unavailable
