- GP760X (WAVE RUNNER GP760) GP79 1999
CYLINDER CRANKCASE

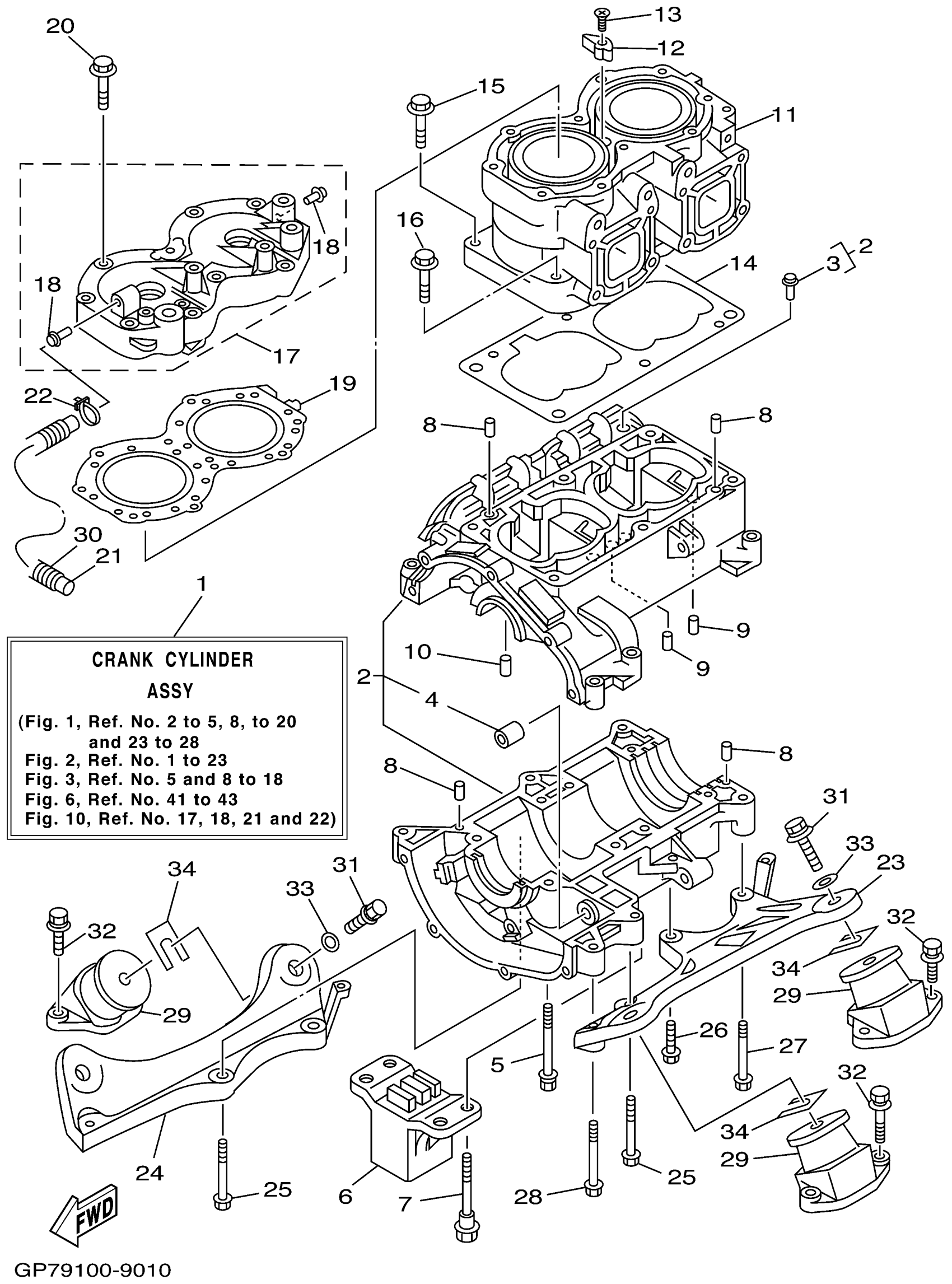

Yamaha GP760X (WAVE RUNNER GP760) GP79 1999 CYLINDER CRANKCASE Diagram
#
1
CRANK CYLINDER ASSY
65V-W0090-01-8S
Unavailable
2
CRANKCASE ASSY
64X-15100-00-00
Unavailable
3
NIPPLE
62T-14251-10-00
Unavailable
4
. BUSH, SOLID
90380-12M29-00
Unavailable
5
BOLT, WITH WASHER
90119-08M55-00
Unavailable
6
STOPPER, UPPER MOUNT
65V-44532-00-00
Unavailable
7
BOLT
90109-08M56-00
Unavailable
8
PIN, DOWEL (614)
93606-12019-00
$4.24
9
PIN (2H7)
93603-10049-00
Unavailable
10
PIN, DOWEL (8H1)
93604-07141-00
$2.17
11
CYLINDER 1
64X-11311-00-8S
Unavailable
12
ANODE
6E5-11325-00-00
Unavailable
13
SCREW, FLAT HEAD(GA5)
98780-04014-00
$3.29
14
GASKET, CYLINDER
6M6-11351-A2-00
Unavailable
15
BOLT, WITH WASHER
90119-10M56-00
Unavailable
16
BOLT (6F5)
90119-10M07-00
Unavailable
17
HEAD, CYLINDER 1
64X-11111-09-8S
Unavailable
18
. NIPPLE
6K8-51129-00-00
Unavailable
19
GASKET, CYLINDER HEAD
64X-11181-00-00
Unavailable
20
BOLT, WITH WASHER
90119-08019-00
Unavailable
21
HOSE (L1300)
90445-14M22-00
Unavailable
22
HOSE CLAMP ASSY(62T)
90450-14M05-00
Unavailable
23
BRACKET, FRONT UPPER 1
6R7-21415-01-00
Unavailable
24
BRACKET, REAR UPPER 1
6R7-21425-01-00
Unavailable
25
BOLT, WITH WASHER
90119-10M23-00
Unavailable
26
BOLT, WITH WASHER
90119-10M00-00
Unavailable
27
BOLT, WITH WASHER
90119-10M03-00
Unavailable
28
BOLT, WITH WASHER
90119-10M01-00
Unavailable
29
MOUNT RUBBER
63M-44517-01-94
Unavailable
30
HOSE(65R)
90446-20M70-00
Unavailable
31
BOLT, WITH WASHER
90119-08856-00
Unavailable
32
BOLT, WITH WASHER
90119-08826-00
Unavailable
33
WASHER, PLATE
90201-099U3-00
Unavailable
34
SHIM (T=0.1)
EU0-67354-A0-00
Unavailable
34
SHIM (T=0.3)
EU0-67354-B0-00
Unavailable
34
SHIM (T=0.5)
EU0-67354-C0-00
Unavailable
34
SHIM (T=1.0)
EU0-67354-D0-00
Unavailable
34
SHIM (T=2.0)
EU0-67354-E0-00
Unavailable
