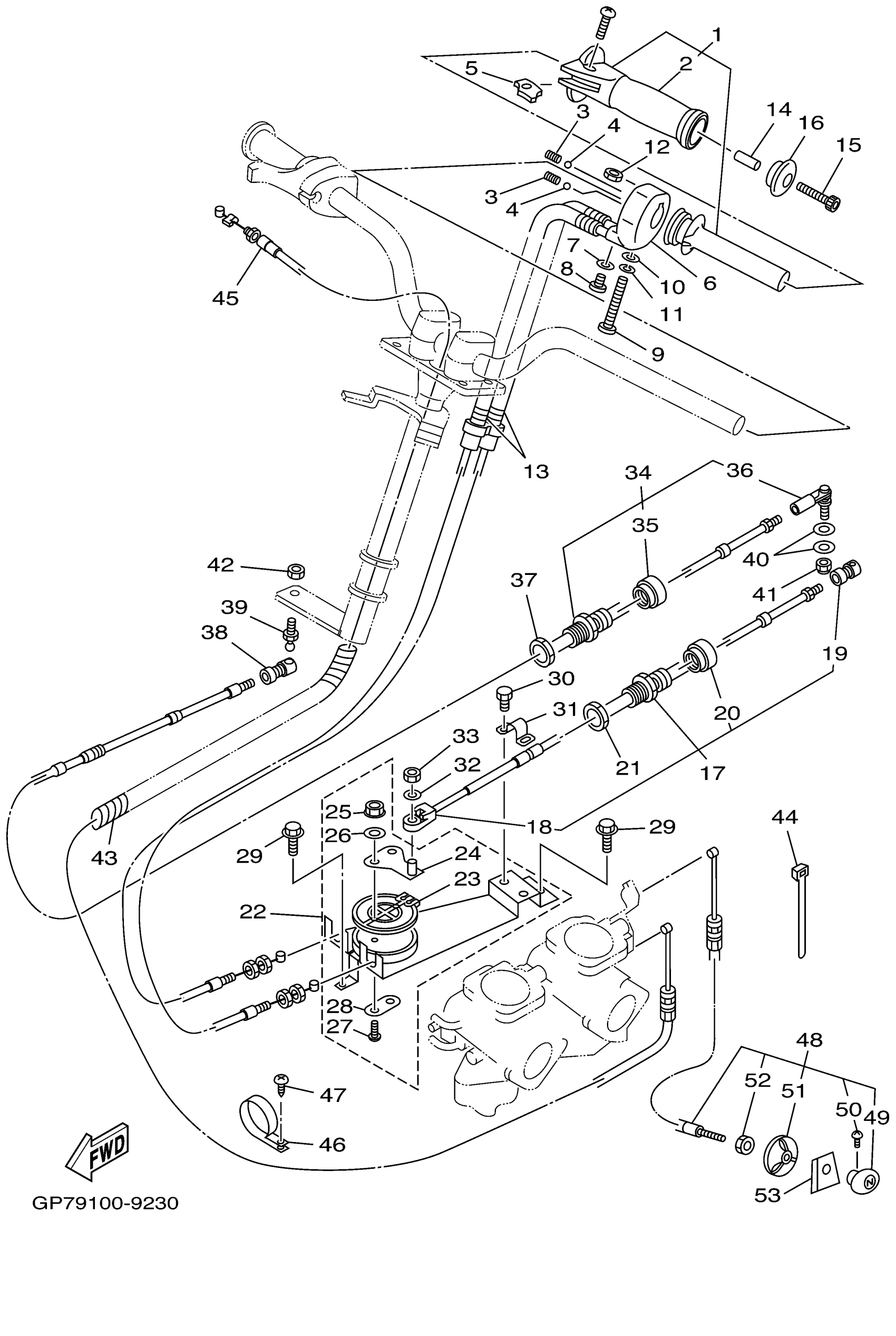

Yamaha GP760X (WAVE RUNNER GP760) GP79 1999 CONTROL CABLE Diagram

#

Description
Price

1

GRIP, HANDLE ASSY.

GP7-U157A-00-00

Unavailable

2

. GRIP, HANDLE

GP7-U155C-00-00

Unavailable

3

SPRING

GP7-U152P-00-00

Unavailable

4

BALL

GP7-U152R-00-00

Unavailable

5

LEVER ASSY

GP7-U151M-00-00

Unavailable

6

HOUSING ASSY

GP7-U152M-00-00

Unavailable

7

WASHER, PLAIN (646)

92990-04600-00

$5.99

8

SCREW, BINDING (M01)

98980-04010-00

$6.99

9

SCREW PAN HEAD

98580-06565-00

Unavailable

10

WASHER, PLAIN (646)

92990-06600-00

$2.80

11

WASHER, SPRING

92995-06100-00

Unavailable

12

NUT, SPECIAL

GH1-U143B-00-00

Unavailable

13

CABLE, NOZZLE CONTROL 2

GP7-U153D-00-00

Unavailable

14

COLLAR

90387-05800-00

Unavailable

15

BOLT, HEXAGON SOCKET HEAD

90110-05908-00

Unavailable

16

GRIP, END

GP7-U155F-00-00

Unavailable

17

CABLE,NOZZLE CONTROL 3

GP7-6153E-09-00

Unavailable

18

. END, CABLE

GH1-U046C-00-00

Unavailable

19

SHAFT,JOINT BALL

EU0-61461-30-00

Unavailable

20

. CONNECTOR, CABLE

EU0-67267-10-00

Unavailable

21

. NUT, DRAIN 1

EU0-62241-30-00

Unavailable

22

REMOTE CONTROL, NOZZLE 2

GP7-U153J-00-00

Unavailable

23

. WHEEL

GP7-U153N-00-00

Unavailable

24

. ARM ASSY

GP7-U153R-00-00

Unavailable

25

NUT, FLANGE

95720-05300-00

Unavailable

26

WASHER, TOOTH

92990-05300-00

Unavailable

27

SCREW, PAN HEAD(6A1)

97885-05020-00

Unavailable

28

. WASHER

GP7-U153P-00-00

Unavailable

29

BOLT, WITH WASHER

90119-069UJ-00

Unavailable

30

BOLT(GH1)

97080-06012-00

Unavailable

31

CLAMP, CABLE

GH1-U043H-00-00

Unavailable

32

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

33

NUT, FLANGE

95780-06300-00

Unavailable

34

CABLE, STEERING

GP7-U1481-00-00

Unavailable

35

CONNECTOR, CABLE

GK5-67267-00-00

Unavailable

36

. STUD, JOINT BALL

F1B-61461-02-00

Unavailable

37

. NUT, DRAIN 1

EU0-62241-30-00

Unavailable

38

SHAFT,JOINT BALL

GK5-U146F-00-00

Unavailable

39

SHAFT, JOINT BALL

EU0-U1461-10-00

Unavailable

40

WASHER, PLATE

90201-06906-00

Unavailable

41

NUT(650)

95380-06700-00

Unavailable

42

NUT, SELF-LOCKING

95720-06300-00

Unavailable

43

SPI-RAP 25

90699-38U03-00

Unavailable

44

BAND

90601-200U1-00

Unavailable

45

CABLE, THROTTLE

GP7-U7252-00-00

Unavailable

46

CLIP, NYLON 18

90600-918U3-00

Unavailable

47

SCREW, PANHEAD TAPPING (J20)

97780-60116-00

Unavailable

48

CABLE, CHOKE

GP7-U7242-01-00

Unavailable

49

KNOB, CHOKE

GP7-U724C-00-00

Unavailable

50

SCREW, KNOB

GP7-U724D-00-00

Unavailable

51

. NUT, COMPRESSION

GP7-U724E-00-00

Unavailable

52

. NUT

GA9-U724F-01-00

Unavailable

53

PLATE,CHOKE

GJ1-6824D-01-00

Unavailable
