1998 Yamaha Wave Runner GP760 (GP760W) JET Unit 2 Diagram

← All diagrams

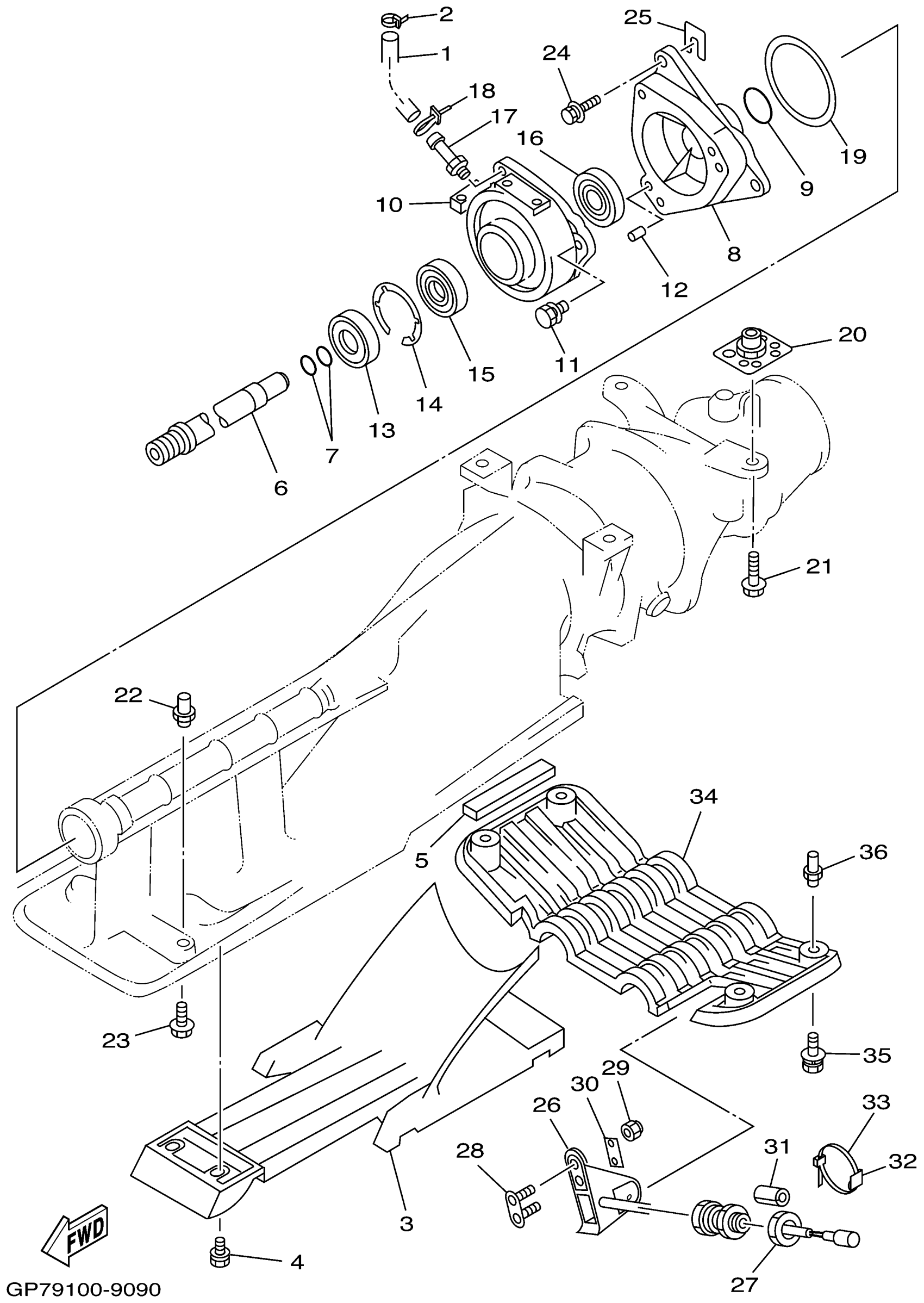

Find the part on the JET Unit 2 diagram for your 1998 Yamaha Wave Runner GP760 (GP760W), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Yamaha Wave Runner GP760 (GP760W) JET Unit 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE (L445)

90445-09M21-00

1

$22.46

In stock

2

CLAMP

90465-10098-00

1

$2.24

In stock

3

SCREEN, INTAKE

63N-51333-02-94

1
Out of stock

4

BOLT, WITH WASHER

90119-069UC-00

1

$3.77

In stock

5

. FELT, PACKING

63N-51368-00-00

1
Out of stock

6

SHAFT, COUPLER

65V-51323-00-00

1
Out of stock

7

O-RING(6R7)

93210-17MA4-00

1

$4.84

In stock

8

HOUSING, BEARING

65A-G5331-00-00

1
Out of stock

9

O-RING

93210-35M72-00

1

$11.57

In stock

10

HOUSING, BEARING

65U-45332-02-94

1

$259.98

In stock

11

BOLT, WITH WASHER

90119-08841-00

1

$1.15

In stock

12

PIN, DOWEL (614)

93606-12019-00

1
Out of stock

13

OIL SEAL(62T)

93101-25M55-00

1

$26.00

In stock

14

CIRCLIP

93430-47M04-00

1

$5.53

In stock

15

BEARING(62G)

93306-205U6-00

1

$49.89

In stock

16

OIL SEAL

93101-24001-00

—

$31.99

In stock

17

NIPPLE, HOSE

61L-45378-00-00

1

$9.10

In stock

18

CLAMP

90465-10098-00

1

$2.24

In stock

19

SEAL

6K8-45127-00-00

1

$15.49

In stock

20

NUT

90179-10925-00

1

$5.08

In stock

21

BOLT, WITH WASHER

90119-109U8-00

1
Out of stock

22

NUT(FJ0)

90179-06947-00

—

$3.98

In stock

23

BOLT, WITH WASHER

90119-06896-00

1

$5.62

In stock

24

BOLT, WITH WASHER

90119-08907-00

1

$5.34

In stock

25

SHIM (0.5)

GD0-U7249-00-05

1

$22.37

In stock

25

SHIM (0.5)

GD0-U7249-00-05

1

$22.37

In stock

26

SPEED SENSOR

GP7-U8K31-02-00

1
Out of stock

27

. NUT, DRAIN 1

EU0-62241-30-00

1

$10.49

In stock

28

BRACKET, SPEED SENSOR

GP7-U8K33-00-00

1
Out of stock

29

NUT, SELF-LOCKING

95720-06300-00

1

$1.85

In stock

30

PLATE, SPEED SENSOR

GP7-U8K35-00-00

1
Out of stock

31

PACKING, HOSE 2

GJ1-U7578-12-00

—

$1.31

In stock

32

BASE, CLAMP

90600-900U6-00

1
Out of stock

33

CLAMP(JN6)

90464-40825-00

—

$1.77

In stock

34

PLATE 2

GU0-U273B-00-00

1
Out of stock

35

BOLT, WITH WASHER

90119-08829-00

1

$4.38

In stock

36

NUT

90179-08815-00

1
Out of stock
