1998 Yamaha Wave Runner GP760 (GP760W) Jet Unit 1 Diagram

← All diagrams

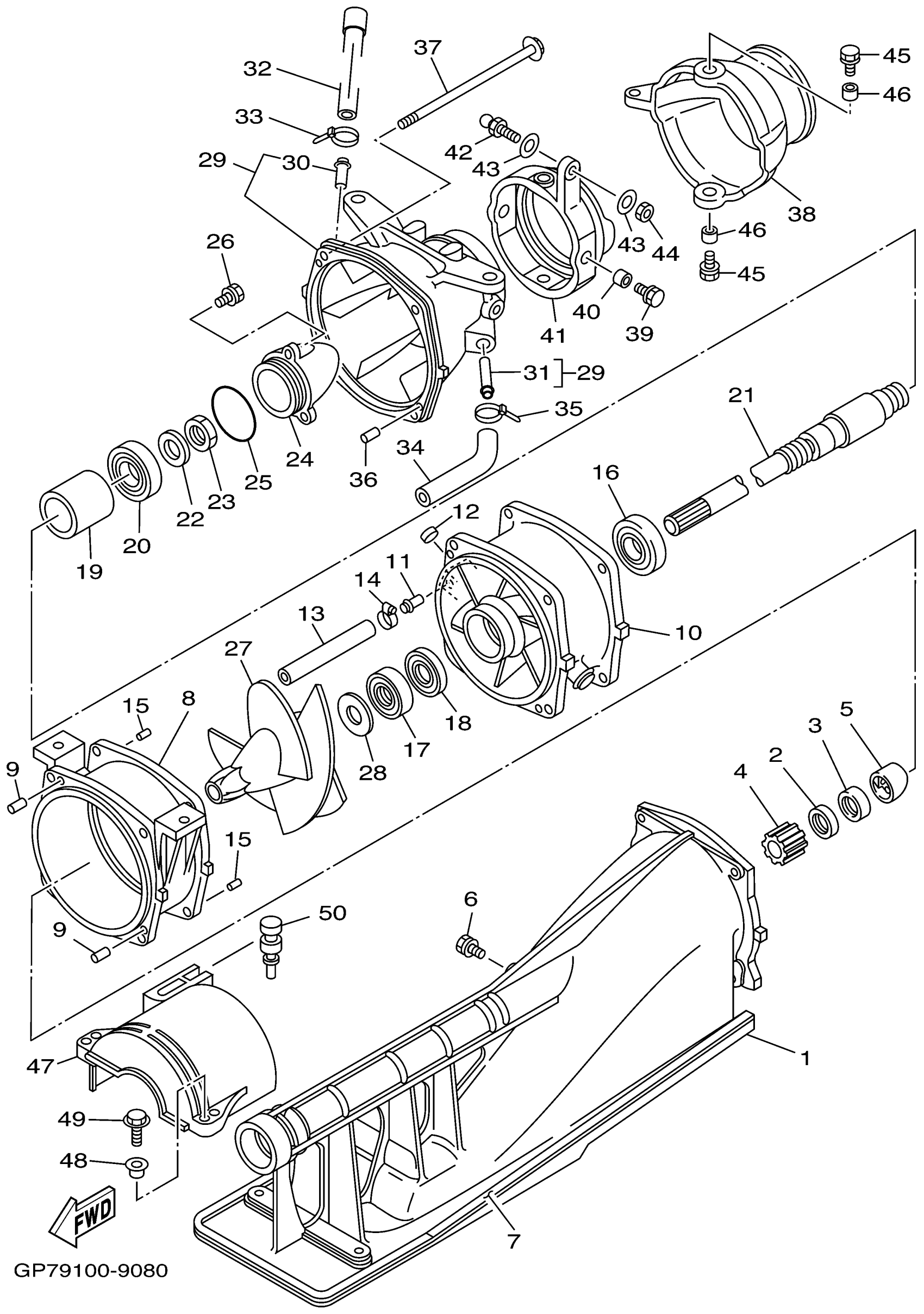

Find the part on the Jet Unit 1 diagram for your 1998 Yamaha Wave Runner GP760 (GP760W), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Yamaha Wave Runner GP760 (GP760W) Jet Unit 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DUCT, INTAKE

65V-51311-01-94

1
Out of stock

2

OIL SEAL

93102-17M49-00

1

$9.94

In stock

3

OIL SEAL

93102-17M50-00

1
Out of stock

4

BUSHING, DRIVE SHAFT

65V-45318-00-00

1

$85.99

In stock

5

SPACER

65U-R1348-01-00

1
Out of stock

6

BOLT, WITH WASHER

90119-06892-00

1

$4.31

In stock

7

. FELT, PACKING

6R8-51367-01-00

1

$11.08

In stock

8

HOUSING, IMPELLER

6R8-51312-03-94

1

$397.49

In stock

9

PIN, DOWEL (614)

93606-12019-00

1
Out of stock

10

DUCT, IMPELLER

62T-51315-10-94

1
Out of stock

11

. NIPPLE

65A-R1129-00-00

1
Out of stock

12

PLUG

90331-12M05-00

1
Out of stock

13

HOSE

90445-14M17-00

1
Out of stock

14

BAND, HOSE 18

90601-118UF-00

1

$2.38

In stock

15

PIN, DOWEL (614)

93606-12019-00

1
Out of stock

16

BEARING (6K8)

93306-205U1-00

—

$21.14

In stock

17

OIL SEAL(6R7)

93102-25M34-00

—

$14.64

In stock

18

OIL SEAL(6R7)

93101-25M50-00

—

$22.28

In stock

19

SPACER 1

65V-45338-00-00

1
Out of stock

20

BEARING

93306-304XB-00

1

$19.22

In stock

21

SHAFT, DRIVE

65V-45511-00-00

1
Out of stock

22

958-58204-00 WASHER,PLAIN

92990-16200-00

—
Out of stock

23

NUT

95317-16700-00

1

$4.45

In stock

24

CAP

65A-R1326-00

1
Out of stock

25

. O-RING

93210-46M16-00

1

$7.91

In stock

26

BOLT,WITH WASHER

90119-06890-00

1

$1.23

In stock

27

IMPELLER

65V-51321-00-00

1
Out of stock

28

SPACER

62T-51348-00-00

1

$48.10

In stock

29

NOZZLE

65V-51318-00-94

1
Out of stock

30

. NIPPLE

6K8-51129-00-00

1

$12.99

In stock

31

. NIPPLE

62T-51129-00-00

1

$18.49

In stock

32

PIPE 1

61X-51673-00-00

1
Out of stock

33

BAND, HOSE 18

90601-118UF-00

1

$2.38

In stock

34

HOSE (L380)

90445-14M25-00

—

$19.46

In stock

35

CLAMP

90465-10098-00

1

$2.24

In stock

36

PIN, DOWEL (614)

93606-12019-00

1
Out of stock

37

BOLT, WITH WASHER

90119-06829-00

1
Out of stock

38

NOZZLE, DEFLECTOR

65V-51313-00-00

1

$60.18

In stock

39

BOLT, WITH WASHER

90119-08852-00

1

$4.31

In stock

40

COLLAR

90387-08M08-00

1

$12.11

In stock

41

RING,TRIM

64Y-51190-00-94

1

$118.99

In stock

42

STUD, JOINT BALL

GH3-U146E-00-00

1

$7.85

In stock

43

WASHER, PLATE

90201-06M31-00

1

$2.92

In stock

44

NUT(650)

95380-06700-00

—

$6.17

In stock

45

BOLT, WITH WASHER

90119-08852-00

1

$4.31

In stock

46

COLLAR(6R7)

90387-08M06-00

—

$8.97

In stock

47

COVER

65A-R1381-00-00

1
Out of stock

48

COLLAR

90387-06M60-00

1

$8.99

In stock

49

BOLT, WITH WASHER

90119-06892-00

1

$4.31

In stock

50

GROMMET(6R7)

90480-06M46-00

—

$9.97

In stock
