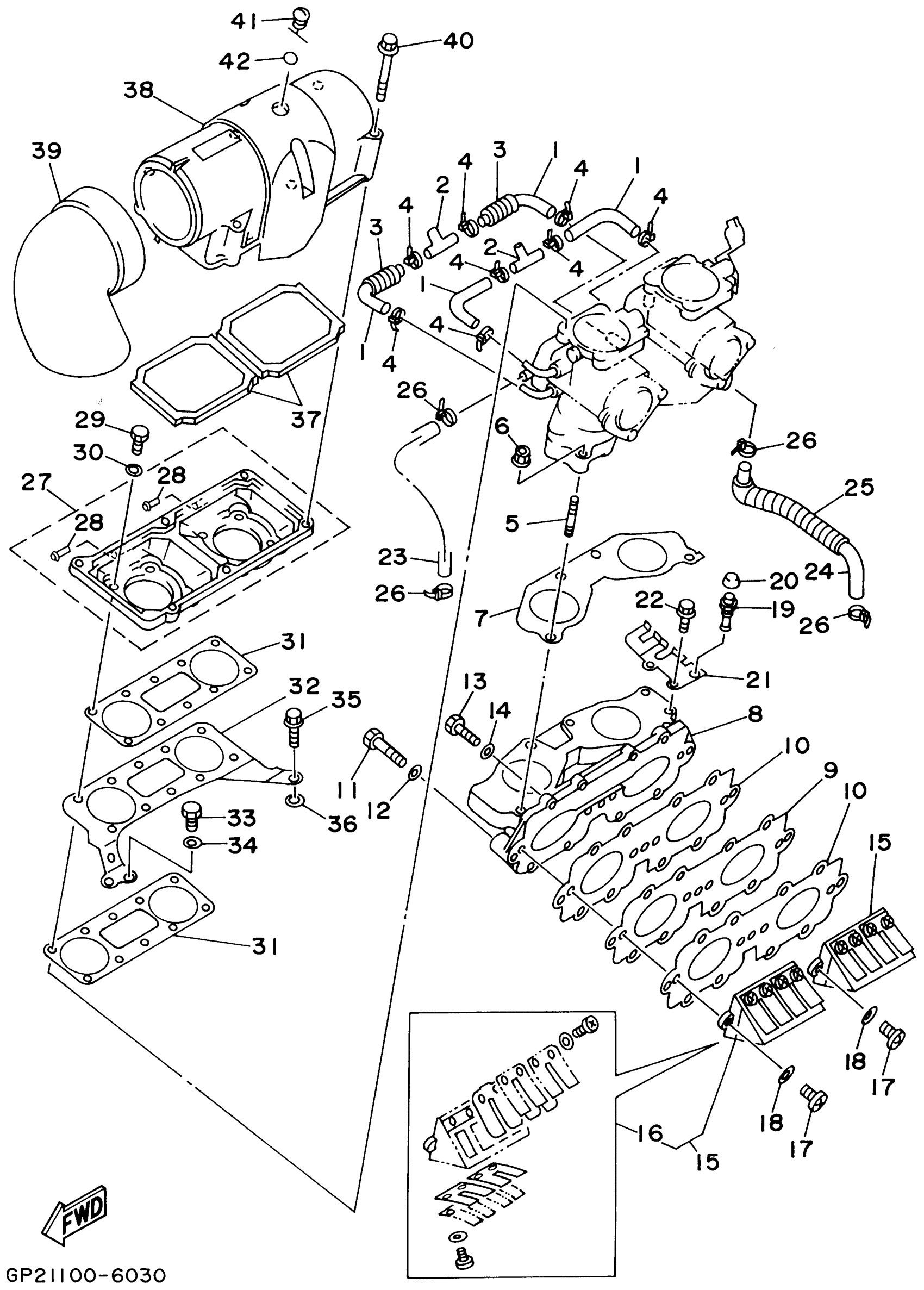

Yamaha GP760W (WAVE RUNNER GP760) GP75 1998 INTAKE Diagram
#
1
PIPE 3
64X-24313-01-00
Unavailable
2
PIPE, JOINT 3
688-24378-00-00
Unavailable
3
HOSE(64X)
90446-14M66-00
$10.49
4
CLAMP
90465-10098-00
Unavailable
5
BOLT, STUD
9016-08M60-00
Unavailable
6
NUT
90179-08M15-00
Unavailable
7
. GASKET, MANIFOLD
64X-13556-00-00
Unavailable
8
MANIFOLD, INTAKE
64X-13555-00-94
Unavailable
9
. PLATE,REED VALVE
62T-13624-00-00
Unavailable
10
. GASKET
62T-13566-00-00
Unavailable
11
BOLT
97013-060635-00
Unavailable
12
WASHER, PLAIN (646)
92990-06600-00
$2.80
13
BOLT(62Y)
97013-06025-00
$1.06
14
WASHER, PLAIN (646)
92990-06600-00
$2.80
15
REED VALVE ASY
64X-13610-01-00
Unavailable
16
REED SET
64X-W0004-01-00
Unavailable
17
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
18
WASHER, PLAIN (646)
92990-05600-00
Unavailable
19
NIPPLE, GREASE
61L-5169A-00-00
Unavailable
20
CAP, GREASE NIPPLE
663-45119-01-00
Unavailable
21
PLATE
64X-14527-00-00
Unavailable
22
BOLT, WITH WASHER(61B)
97513-06516-00
Unavailable
23
HOSE (L200)
90445-10752-00
Unavailable
24
PIPE 4
64X-24314-01-00
Unavailable
25
HOSE(6TC)
90446-14M51-00
Unavailable
26
HOSE
90445-11M10-00
Unavailable
27
COVER, CARBURETOR
64X-14284-01-8P
Unavailable
28
NIPPLE, HOSE
6E5-11372-01-00
Unavailable
29
BOLT(62Y)
97013-06020-00
Unavailable
30
WASHER, PLAIN (646)
92990-06600-00
$2.80
31
. GASKET, AIR COOLER COVER 1
64X-13674-00-00
Unavailable
32
PLATE
64X-14255-00-00
Unavailable
33
BOLT (661)
97013-06012-00
Unavailable
34
WASHER, PLAIN (646)
92990-06600-00
$2.80
35
BOLT
90109-06M66-00
Unavailable
36
WASHER, PLATE
90201-06M31-00
Unavailable
37
ELEMENT, AIR CLEANER
62T-14451-00-00
Unavailable
38
COVER, CARBURETOR 1
64X-14283-01-00
Unavailable
39
PIPE
62T-14419-00-00
Unavailable
40
BOLT, WITH WASHER
90119-05M02-00
Unavailable
41
GROMMET
62T-14435-00-00
Unavailable
42
. O-RING
93210-13M63-00
Unavailable
