1998 Yamaha Wave Runner GP760 (GP760W) Fuel Diagram

← All diagrams

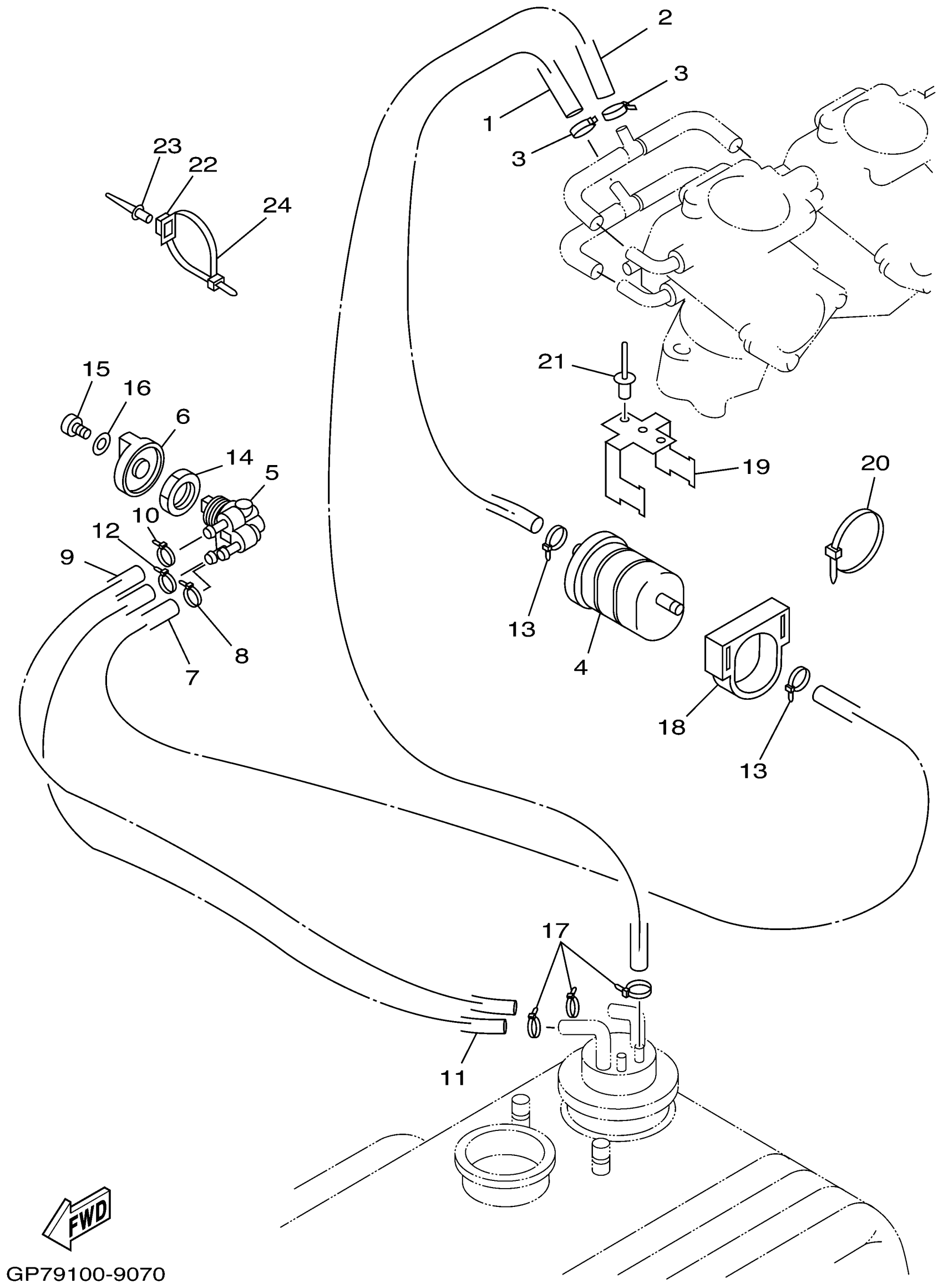

Find the part on the Fuel diagram for your 1998 Yamaha Wave Runner GP760 (GP760W), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Yamaha Wave Runner GP760 (GP760W) Fuel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE (L1040)

90445-10MA9-00

1

$58.64

In stock

2

HOSE (L1040)

90445-10MA9-00

1

$58.64

In stock

3

CLAMP

90465-10098-00

1

$2.24

In stock

4

FILTER ASSY

6K8-24560-21-00

1

$25.83

In stock

5

FUEL COCK ASSY 1

6K8-24500-03-00

1
Out of stock

6

LEVER, COCK

6K8-24524-10-00

1

$10.68

In stock

7

HOSE (L400)

90445-10M43-00

1

$5.88

In stock

8

CLAMP

90465-10098-00

1

$2.24

In stock

9

HOSE (L1040)

90445-10MA9-00

1

$58.64

In stock

10

CLAMP

90465-10098-00

1

$2.24

In stock

11

HOSE (L400)

90445-10M43-00

1

$5.88

In stock

12

CLAMP

90465-10098-00

1

$2.24

In stock

13

CLAMP

90465-10098-00

1

$2.24

In stock

14

NUT

90170-22M11-00

1
Out of stock

15

SCREW, PAN HEAD (E56)

98580-04010-00

1

$6.17

In stock

16

WASHER, PLAIN (646)

92990-04600-00

—

$0.92

In stock

17

CLAMP

90465-10098-00

1

$2.24

In stock

18

HOLDER, FILTER

EU0-U7817-00-00

1

$15.37

In stock

19

BRACKET, FUEL FILTER

FN8-67816-00-00

1

$16.99

In stock

20

BAND

90601-200U1-00

1

$2.89

In stock

21

RIVET (EU0)

90267-48938-00

1

$5.08

In stock

22

CLAMP COMP (EU0)

90600-91736-00

—

$6.68

In stock

23

RIVET, BLIND

90267-48802-00

1

$2.06

In stock

24

BAND

90601-20042-00

1
Out of stock
