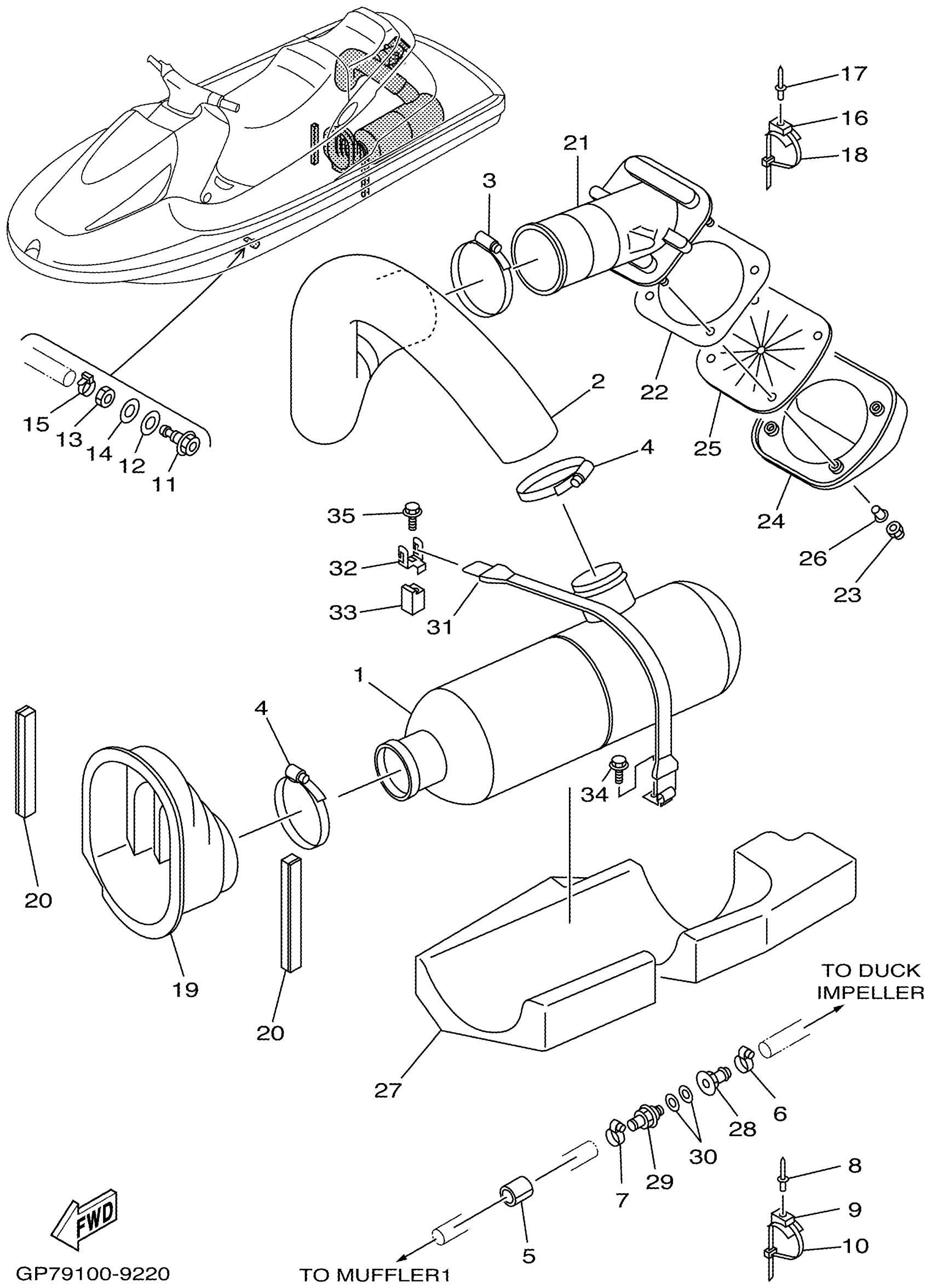

Yamaha GP760W (WAVE RUNNER GP760) GP75 1998 EXHAUST 2 Diagram
#
1
WATER LOCK COMP
GP7-U7550-00-00
Unavailable
2
HOSE, EXHAUST
GP7-U7555-00-00
Unavailable
3
BAND, HOSE 95
90601-195UD-00
Unavailable
4
BAND, HOSE 70
90601-170UG-00
Unavailable
5
HOSE
90446-24M83-00
Unavailable
6
BAND, HOSE 18
90601-118UF-00
Unavailable
7
BAND, HOSE 11
90601-110UC-00
Unavailable
8
RIVET, BLIND
90267-48802-00
Unavailable
9
CLAMP COMP (EU0)
90600-91736-00
$8.49
10
BAND
90601-20012-00
Unavailable
11
PILOT, WATER
GJ1-6753B-02-00
Unavailable
12
WASHER
94990-14200-00
Unavailable
13
NUT
GP7-61652-00-00
Unavailable
14
WASHER, PLAIN
92990-14200-00
$5.49
15
CLAMP
90465-10098-00
Unavailable
16
CLAMP COMP (EU0)
90600-91736-00
$8.49
17
RIVET, BLIND
90267-489U7-00
Unavailable
18
BAND
90601-20012-00
Unavailable
19
SEAL, BULKHEAD 1
GP7-64536-00-00
Unavailable
20
SEAL, BULKHEAD 2
GP7-U4537-00-00
Unavailable
21
EXHAUST, THRU-HULL COMP.
GP7-U7560-00-00
Unavailable
22
PACKING
GP8-U7525-00-00
Unavailable
23
NUT
90179-08978-00
Unavailable
24
COVER, EXHAUST
GP7-6751F-00-00
Unavailable
25
VALVE, EXHAUST
GP8-6751G-00-00
Unavailable
26
COLLAR
90387-08802-00
Unavailable
27
BASE FLOATATION 1
GP7-U8921-00-00
Unavailable
28
THROUGH HULL CONNECTION 3/8-12
90604-80795-00
Unavailable
29
THROUGH HULL CONNECTION 3/8-12
90604-80796-00
Unavailable
30
GASKET(GJ1)
90430-16910-00
Unavailable
31
C HOOK COMP.
GJ3-U7570-00-00
Unavailable
32
HOOK A
EW2-U5772-00-00
Unavailable
33
SPACER 2
GP7-U755C-00-00
Unavailable
34
BOLT, WITH WASHER
90119-069UJ-00
Unavailable
35
BOLT, WITH WASHER
90119-06808-00
Unavailable
