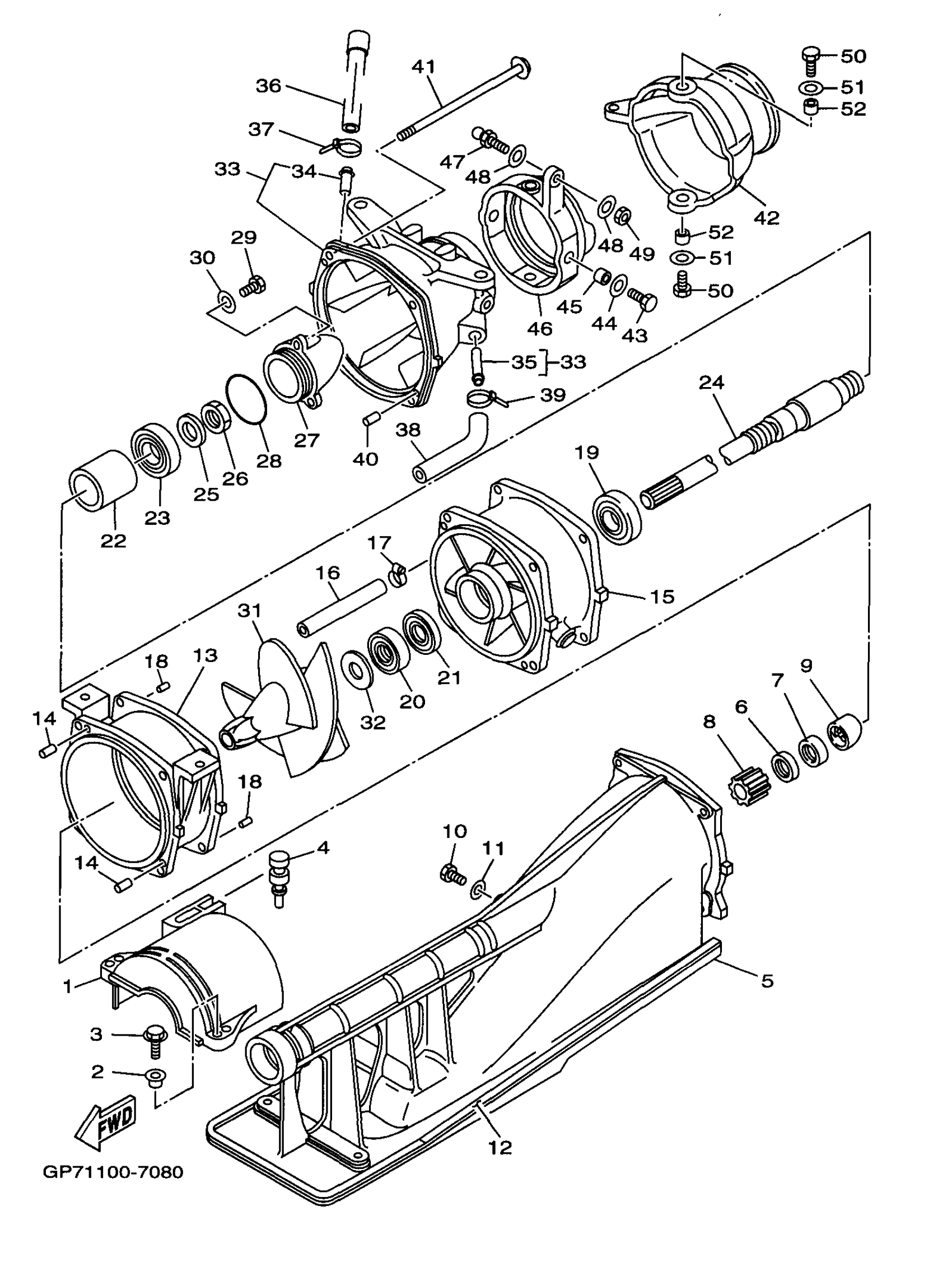

Yamaha GP760V (WAVE RUNNER GP760) 65V 1997 JET UNIT 1 Diagram
#
1
COVER
65A-R1381-00-00
Unavailable
2
COLLAR
90387-06M60-00
Unavailable
3
BOLT, HEXAGON W/W DEEP RECESS
97E95-06525-00
Unavailable
4
GROMMET(6R7)
90480-06M46-00
$12.49
5
DUCT, INTAKE
65V-51311-01-94
Unavailable
6
OIL SEAL
93102-17M49-00
$12.49
7
OIL SEAL
93102-17M50-00
$26.99
8
BUSHING, DRIVE SHAFT
65V-45318-00-00
Unavailable
9
SPACER
65V-51348-01-94
Unavailable
10
BOLT
90101-06M27-00
Unavailable
11
WASHER, PLAIN (646)
92990-06600-00
$2.80
12
. FELT, PACKING
6R8-51367-01-00
Unavailable
13
HOUSING, IMPELLER
6R8-51312-03-94
Unavailable
14
PIN, DOWEL (614)
93606-12019-00
$4.24
15
DUCT, IMPELLER
62T-51315-01-00
Unavailable
16
HOSE
90445-14M17-00
Unavailable
17
HOSE CLAMP ASSY(62T)
90450-14M05-00
Unavailable
18
PIN, DOWEL (614)
93606-12019-00
$4.24
19
BEARING (6K8)
93306-205U1-00
Unavailable
20
OIL SEAL(6R7)
93102-25M34-00
Unavailable
21
OIL SEAL(6R7)
93101-25M50-00
Unavailable
22
SPACER 1
65V-45538-00-00
Unavailable
23
BEARING
93306-304XB-00
Unavailable
24
SHAFT, DRIVE
65V-45511-00-00
Unavailable
25
958-58204-00 WASHER,PLAIN
92990-16200-00
Unavailable
26
NUT
95317-16700-00
Unavailable
27
CAP
62T-51326-00-00
Unavailable
28
. O-RING
93210-46M16-00
Unavailable
29
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
30
WASHER, PLAIN (646)
92990-06600-00
$2.80
31
IMPELLER
65V-51321-00-00
Unavailable
32
SPACER
62T-51348-00-00
Unavailable
33
NOZZLE
65V-51318-00-94
Unavailable
34
. NIPPLE
6K8-51129-00-00
Unavailable
35
. NIPPLE
62T-51129-00-00
Unavailable
36
PIPE 1
61X-51673-00-00
Unavailable
37
CLAMP
90465-10098-00
Unavailable
38
HOSE (L380)
90445-14M25-00
Unavailable
39
CLAMP
90465-10098-00
Unavailable
40
PIN, DOWEL (614)
93606-12019-00
$4.24
41
BOLT(6R8)
90101-06M04-00
Unavailable
42
NOZZLE, DEFLECTOR
65V-51313-00-00
Unavailable
43
BOLT, HEXAGON
97095-08018-00
Unavailable
44
.. WASHER, PLATE
92990-08600-00
Unavailable
45
COLLAR
90387-08M08-00
Unavailable
46
RING,TRIM
64Y-51190-00-94
Unavailable
47
. BOLT, JOINT
6R7-42316-00-00
Unavailable
48
WASHER, PLATE
90201-06M31-00
Unavailable
49
NUT(650)
95380-06700-00
Unavailable
50
BOLT, HEXAGON
97095-08020-00
Unavailable
51
.. WASHER, PLATE
92990-08600-00
Unavailable
52
COLLAR(6R7)
90387-08M06-00
Unavailable
