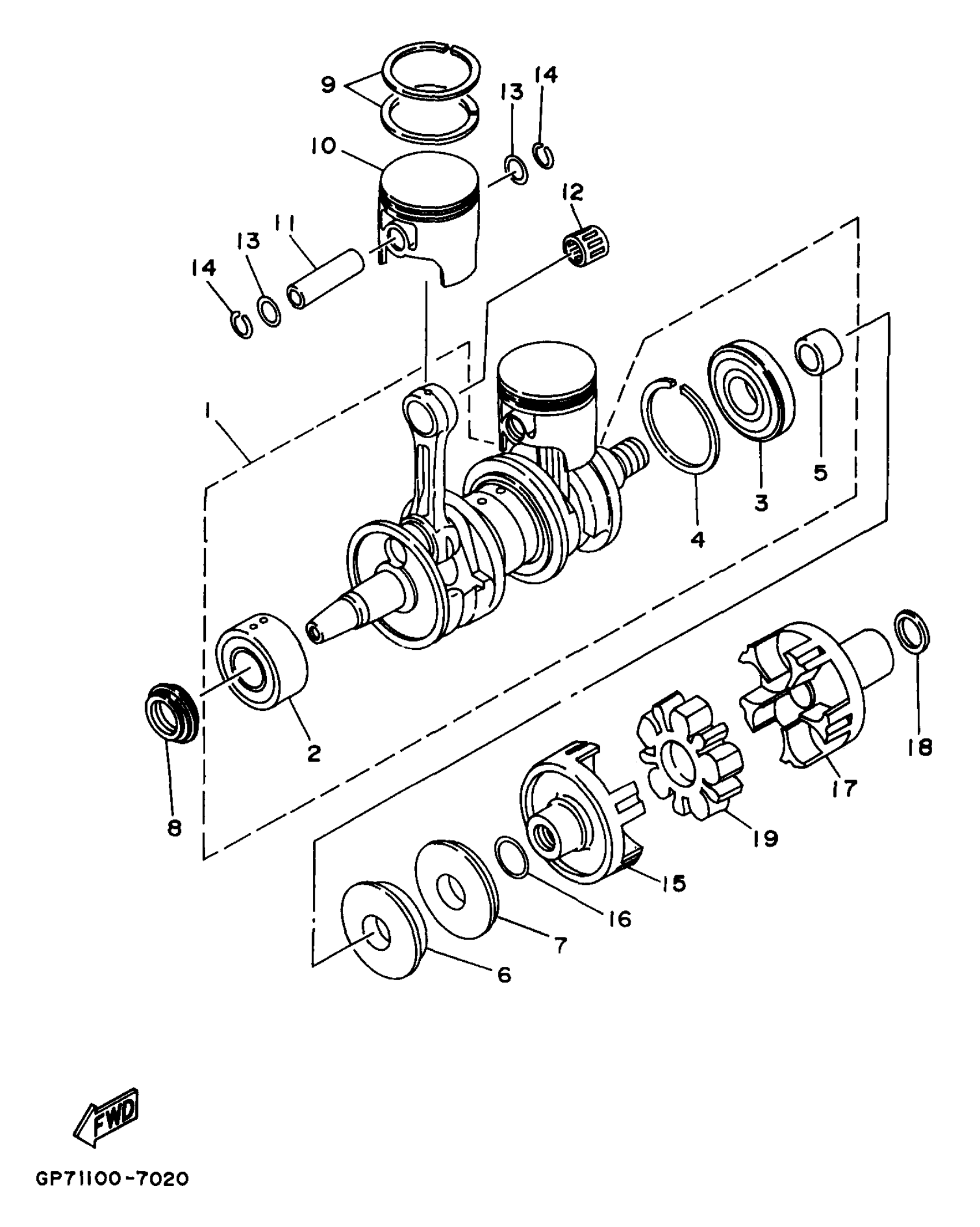

Yamaha GP760V (WAVE RUNNER GP760) 65V 1997 CRANKSHAFT PISTON Diagram

#

Description

Price

1

CRANKSHAFT ASSY

65V-Y117P-01-00

Unavailable

2

BEARING(8AB)

93305-30601-00

$193.99

3

BEARING(6M6)

93306-307U3-00

Unavailable

4

CIRCLIP (834)

93440-80023-00

$15.99

5

. COLLAR, DRIVE SHAFT

62T-45526-00-00

Unavailable

6

. OIL SEAL

93102-36M33-00

Unavailable

7

. OIL SEAL

93101-36M46-00

Unavailable

8

. OIL SEAL

93103-32M01-00

Unavailable

9

PISTON RING SET (STD)

64X-11603-00-00

Unavailable

9

PISTON RING SET (0.25MM O/S)

64X-11604-00-00

Unavailable

9

PISTON RING SET (0.50MM O/S)

64X-11605-00-00

Unavailable

10

PISTON (STD)

64X-11631-00-91

Unavailable

10

PISTON (0.25MM O/S)

64X-11635-00-00

Unavailable

10

PISTON (0.50MM O/S)

64X-11636-00-00

Unavailable

11

PIN, PISTON

62T-11633-00-00

Unavailable

12

BEARING, CYLINDRICAL(62T)

93310-320U2-00

Unavailable

13

WASHER, PLATE(61X)

90201-20M04-00

Unavailable

14

CIRCLIP (8H0)

93450-21053-00

Unavailable

15

FLANGE, COUPLING

63M-45813-01-94

Unavailable

16

SEAL

62T-45127-01-00

Unavailable

17

FLANGE, COUPLING

64T-45813-00-8P

Unavailable

18

WASHER, PLATE(61X)

90201-24M02-00

Unavailable

19

RUBBER SHAFT COUPLING

63M-4581J-00-00

Unavailable
