1973 Yamaha GP643B Steering Gate Diagram

← All diagrams

Find the part on the Steering Gate diagram for your 1973 Yamaha GP643B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

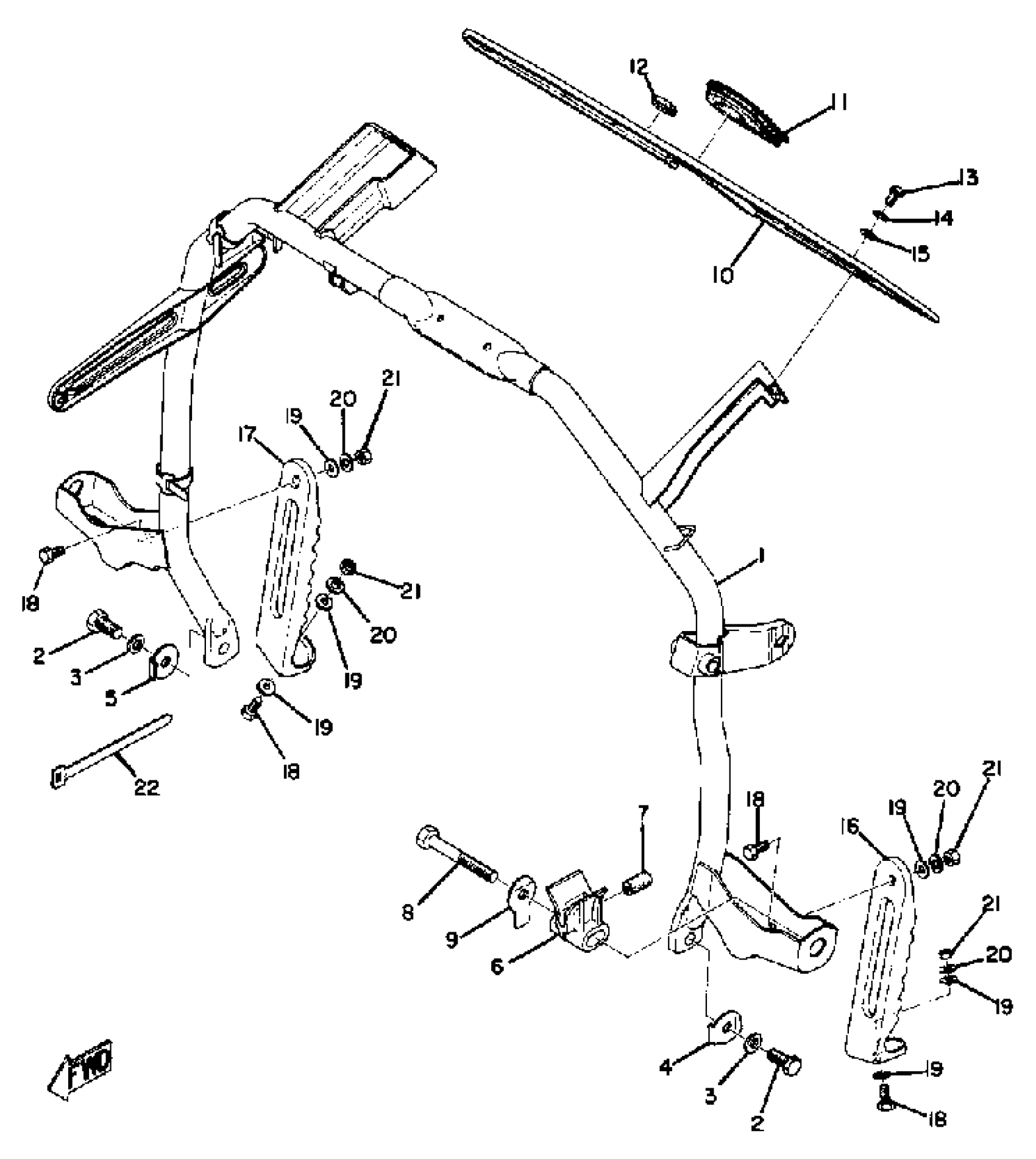

1973 Yamaha GP643B Steering Gate Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GATE, STEERING

(847-23871-00-00)

1
Out of stock

2

BOLT, HEXAGON

97027-08018-00

—

$1.62

In stock

3

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock

4

WASHER, LOCK 2

(861-23895-00-00)

1
Out of stock

5

WASHER, LOCK

(90215-08066-00)

1
Out of stock

6

CLAMP

(90464-09003-00)

1
Out of stock

7

STOPPER

821-77188-01-00

1
Out of stock

8

BOLT (810-77537-00)

90101-08039-00

1
Out of stock

9

WASHER, LOCK

(90215-08039-00)

1
Out of stock

10

PANEL, INSTRUMENT

(835-77711-00-00)

1
Out of stock

11

GROMMET

(834-77746-00-00)

1
Out of stock

12

GROMMET

(102-82598-00-00)

1
Out of stock

13

BOLT

97027-05010-00

—

$5.62

In stock

14

WASHER(3SX)

92907-05100-00

1

$6.18

In stock

15

WASHER, PLAIN LARGE

92907-05200-00

1
Out of stock

16

FOOTREST 1

(810-27411-00-00)

1
Out of stock

17

FOOTREST 2

(810-27421-00-00)

1
Out of stock

18

BOLT (661)

97013-06012-00

—

$4.71

In stock

19

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

20

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

21

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

22

BAND, SWITCH CORD

437-83936-11-00

—

$3.20

In stock
