1973 Yamaha GP643B SKI Diagram

← All diagrams

Find the part on the SKI diagram for your 1973 Yamaha GP643B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

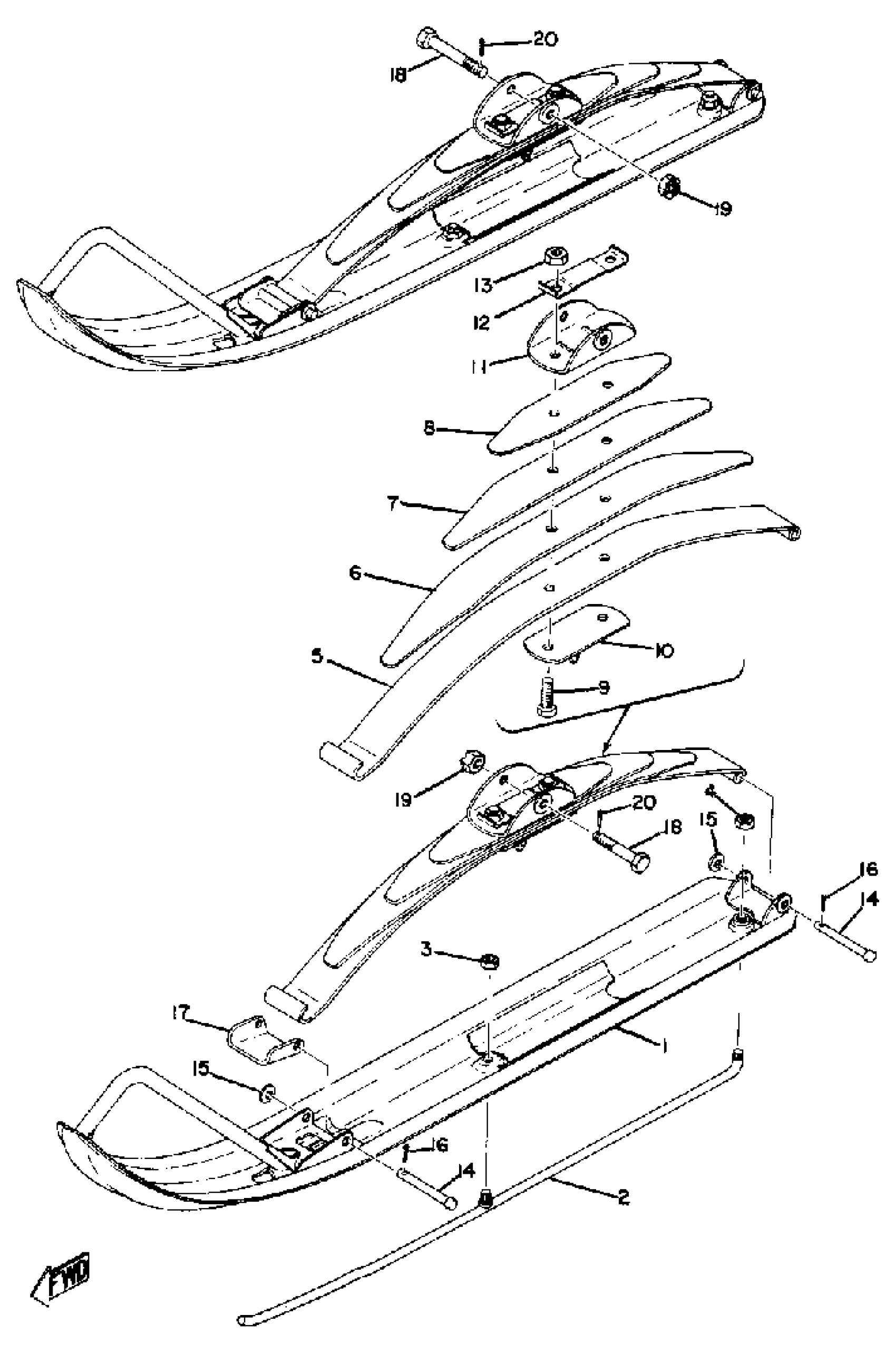

1973 Yamaha GP643B SKI Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPRING ASSEMBLY 1

(834-23760-00-00)

1
Out of stock

1

SKI 1

(838-23710-01-00)

1
Out of stock

2

SPRING ASSEMBLY 2

(834-23770-00-00)

1
Out of stock

2

RUNNER 1

838-23731-03-00

1
Out of stock

3

NUT, HEXAGON SMALL

95317-08700-00

1

$7.05

In stock

4

NUT(6TA)

95337-08600-00

1

$6.17

In stock

5

. LEAF 1

834-23761-00-00

1
Out of stock

6

LEAF 2

(834-23762-00-00)

1
Out of stock

7

LEAF 3

(834-23763-00-00)

1
Out of stock

8

LEAF 4

(834-23764-00-00)

1
Out of stock

9

. BOLT

90101-10060-00

1
Out of stock

10

. SEAT, SPRING 1

802-23768-00-00

1
Out of stock

11

. SADDLE 1

806-23766-00-00

1
Out of stock

12

. WASHER, SPEC''L SHAP

90209-10069-00

1
Out of stock

13

NUT(6TD)

95337-10600-00

1

$6.98

In stock

14

PIN, CLEVIS (801-23733-00)

90240-08035-00

1
Out of stock

15

WASHER(6TC)

92907-08200-00

—
Out of stock

16

PIN COTTER

91490-30025-00

—
Out of stock

17

PLATE, WEAR 1

802-23735-00-00

1
Out of stock

18

BOLT, WITH HOLE

90102-10023-00

1
Out of stock

19

NUT, SLOTTED

95306-10900-00

1
Out of stock

20

PIN, COTTER

91490-20025-00

—

$1.31

In stock
