PUMP DRIVE GEAR

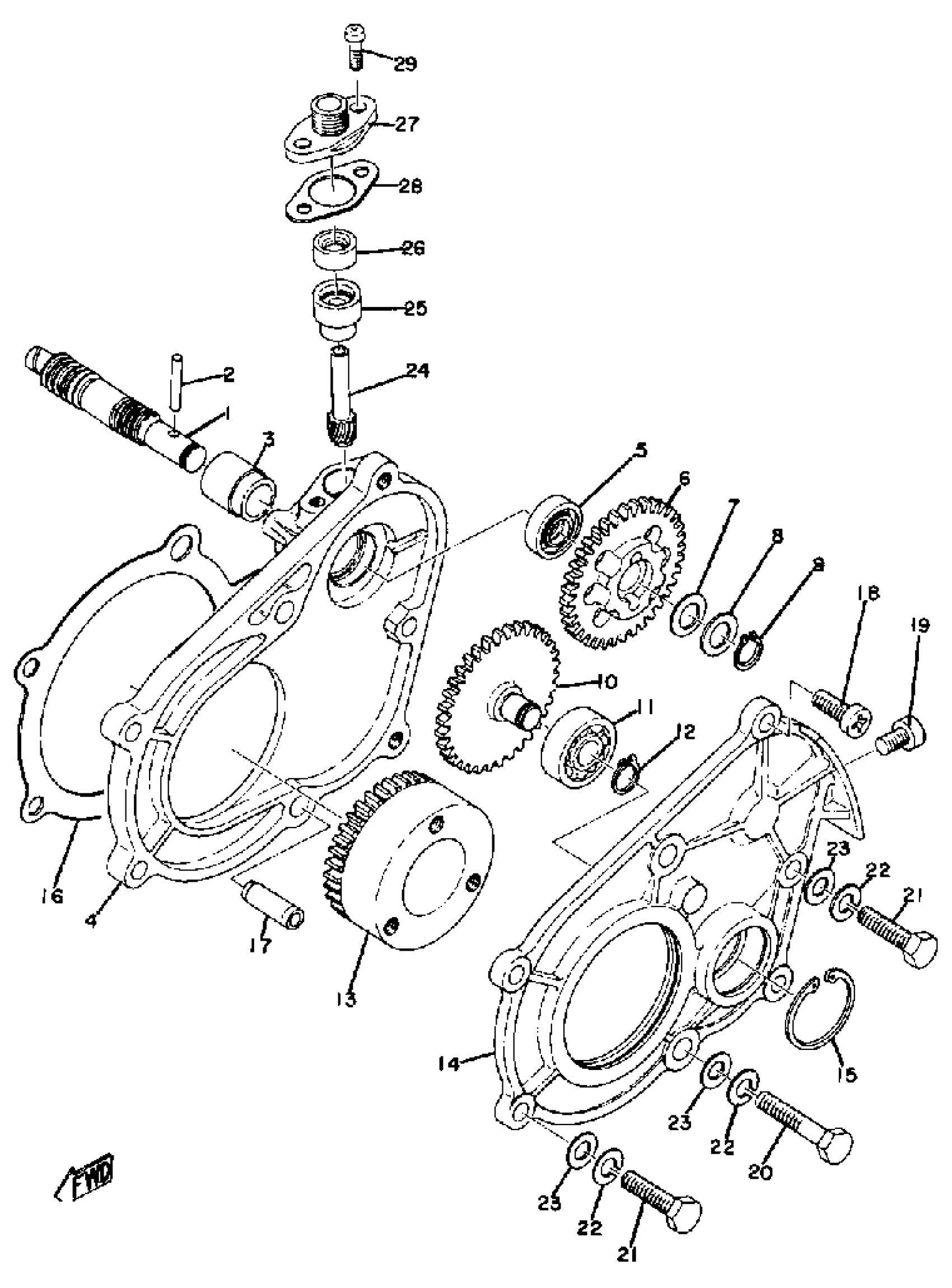

Yamaha GP643B 1973 PUMP DRIVE GEAR Diagram
#
1
SHAFT, WORM
826-13175-00-00
Unavailable
2
PIN,DOWEL (137)
93603-22028-00
$3.76
3
METAL, WORM SHAFT OUTER
821-13176-00-00
$17.49
4
COVER, OIL PUMP
(834-15416-00-00)
Unavailable
5
OIL SEAL (J10)
93101-10090-00
$8.49
6
GEAR, DRIVE
(834-13188-00-00)
Unavailable
7
WASHER, WAVE (137)
90206-11016-00
Unavailable
8
PLATE, CAM THRUST
137-13148-00-00
Unavailable
9
CIRCLIP(10W)
99009-10400-00
$4.73
10
GEAR, IDLE
(821-13179-00-00)
Unavailable
11
BRG,R-B 6000RS 32MM 30G KY
93306-00002-00
Unavailable
12
CIRCLIP(10W)
99009-10400-00
$4.73
13
GEAR, PUMP DRIVE
(834-13178-00-00)
Unavailable
14
COVER, OIL PUMP R
(834-15426-00-00)
Unavailable
15
CIRCLIP, R-TYPE (R-26)
93420-26024-00
Unavailable
16
GASKET, O/PMP CVR 1
(834-15456-00-00)
Unavailable
17
PIN, DOWEL
91810-18022-00
Unavailable
18
SCREW, PAN
98507-06014-00
Unavailable
19
SCREW PAN HEAD
98580-06010-00
Unavailable
20
BOLT(3RV)
97014-06035-00
Unavailable
21
BOLT(JF7)
97080-06030-00
Unavailable
22
WASHER, SPRING
92995-06100-00
Unavailable
23
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
24
GEAR, DRIVEN (10T)
813-17841-00-00
Unavailable
25
BUSH, DRIVEN GEAR OUTER
821-17843-00-00
Unavailable
26
OIL SEAL (6X12X4-821)
93104-06033-00
Unavailable
27
CAP, HOUSING
821-17819-00-00
Unavailable
28
GASKET
821-17818-02-00
Unavailable
29
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
