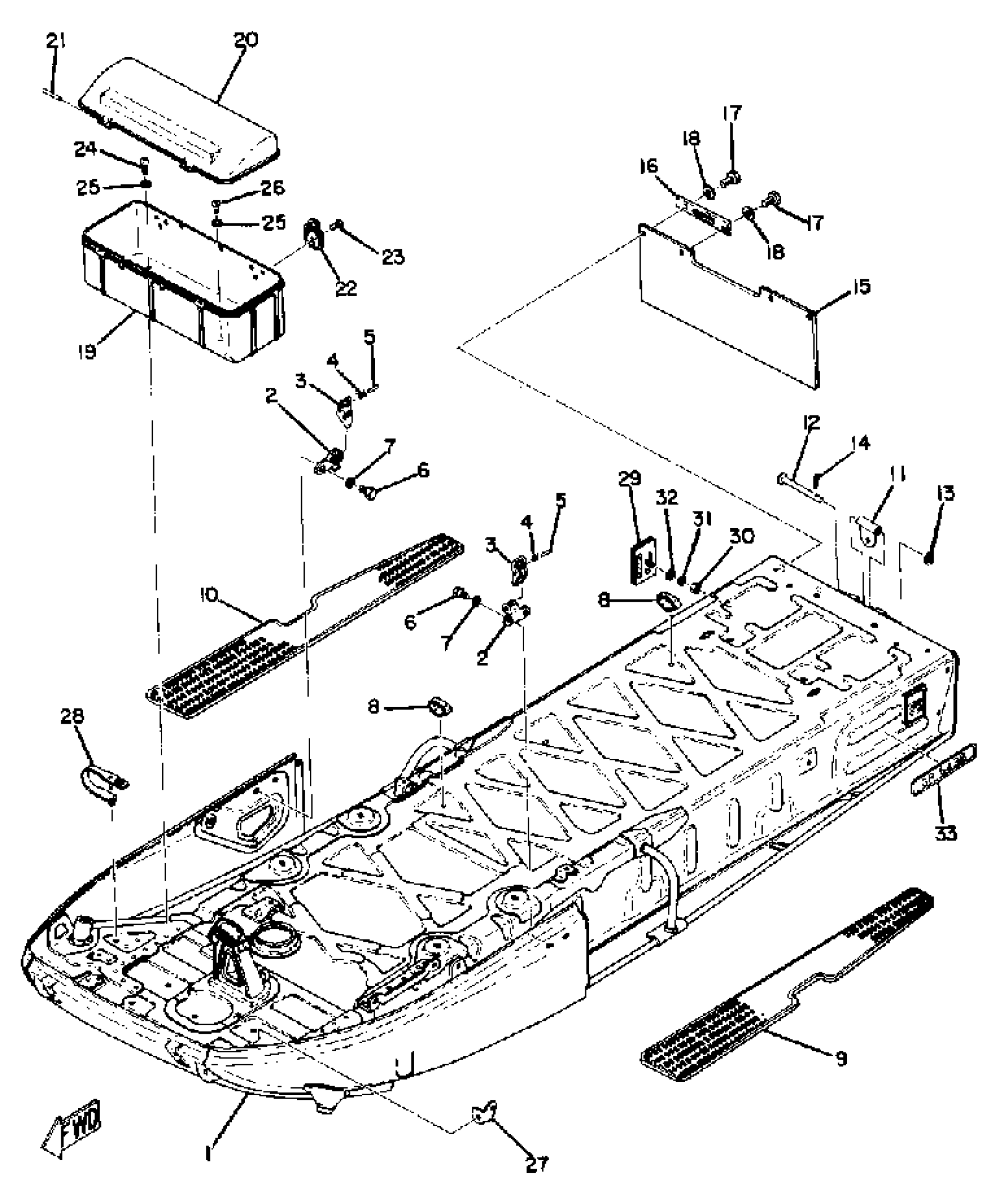

Yamaha GP643B 1973 FRAME Diagram
#
1
LATCH ASSEMBLY
807-77170-00-00
Unavailable
1
FRAME
(847-21910-00-00)
Unavailable
2
LUGGAGE BOX ASSEMBLY
(822-77301-00-00)
Unavailable
2
TOOL
UNA-VAILA-BL-EI
Unavailable
3
. LEVER, LATCH 1
806-77173-00-00
Unavailable
4
. SPRING, TORSION
90508-10012-00
Unavailable
5
. PIN, SPECIAL SHAPE
90249-04068-00
Unavailable
6
BOLT, HEXAGON
97313-05016-00
Unavailable
7
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
8
CLAMP
(90464-13008-00)
Unavailable
9
COVER, FOOTREST
(806-27413-00-00)
Unavailable
10
COVER, FOOTREST
(806-27423-00-00)
Unavailable
11
BRACKET, HITCH 1
802-77591-00-00
Unavailable
12
PIN, CLEVIS
(91701-08102-00)
Unavailable
13
WASHER, PLAIN
92990-08200-00
Unavailable
14
PIN, COTTER
91490-25020-00
Unavailable
15
FLAP
(807-77595-02-00)
Unavailable
16
PLATE, FLAP 1
(807-77593-00-00)
Unavailable
17
BOLT (661)
97013-06012-00
Unavailable
18
WASHER, SPRING
92995-06100-00
Unavailable
19
LUGGAGE BOX ASSEMBLY
(822-77301-00-00)
Unavailable
20
COVER, LUGGAGE BOX
(822-77392-00-00)
Unavailable
21
PIN, SPEC''L SHAPE
90249-03021-00
Unavailable
22
LUGGE BOX LTCH ASSEMBLY
(822-77340-00-00)
Unavailable
23
SCREW, FLAT
98707-03008-00
Unavailable
24
SCREW, PAN
98507-06014-00
Unavailable
25
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
26
SCREW, PAN HEAD (76T)
98517-06025-00
Unavailable
27
BRACKET, CHAIN HSNG
(836-21939-00-00)
Unavailable
28
BAND
(841-82591-00-00)
Unavailable
29
REFLECTOR, REAR 1
(821-85131-00-00)
Unavailable
30
NUT, NYLON
95707-06300-00
Unavailable
31
WASHER, SPRING
92995-06100-00
Unavailable
32
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
33
EMBLEM 4
(847-77354-00-00)
Unavailable
