FLYWHEEL MAGNETO

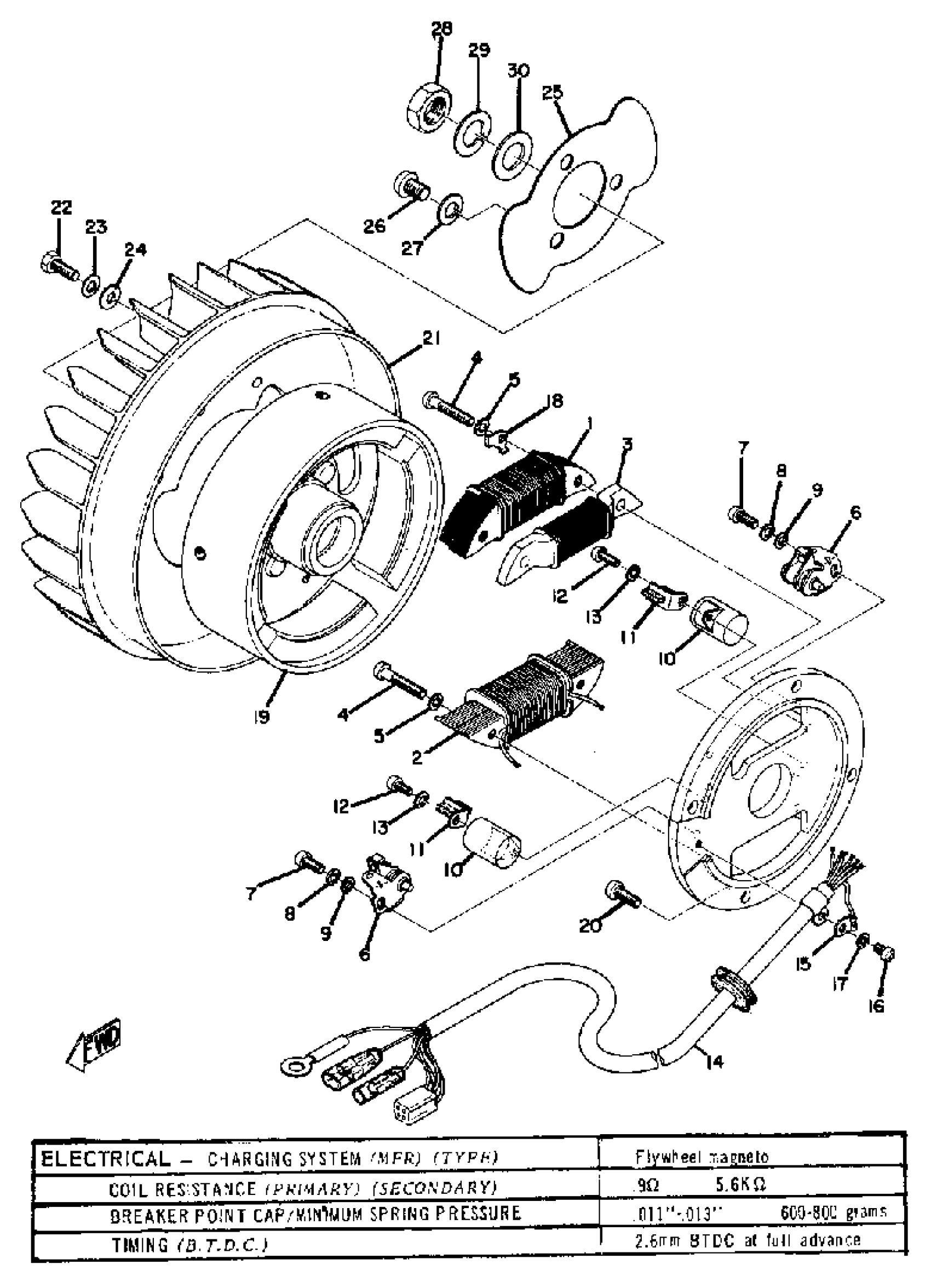

Yamaha GP643B 1973 FLYWHEEL MAGNETO Diagram
#
1
FLYWHL MAGNETO ASSEMBLY
(847-81300-20-00)
Unavailable
1
. COIL, SOURCE
8A0-81312-20-00
Unavailable
2
COIL, LIGHTING 1
(839-81313-20-00)
Unavailable
3
COIL, LIGHTING 2
(838-81314-20-00)
Unavailable
4
. SCREW, PAN HEAD
802-81345-20-00
Unavailable
5
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
6
. CONTACT BRKR ASSEMBLY
806-81321-20-00
Unavailable
7
SCREW, PAN HEAD
110-81346-21-00
$5.49
8
YBS67-4 WASHER, SPRING
92990-04100-00
$0.86
9
YBS66-4 WASHER, PLAIN
92990-04200-00
$1.86
10
. CONDENSER 1
802-81325-90-00
Unavailable
11
. LUBRICATOR
116-81331-20-00
Unavailable
12
SCREW, PAN HEAD
110-81346-21-00
$5.49
13
YBS67-4 WASHER, SPRING
92990-04100-00
$0.86
14
LEAD WIRE ASSEMBLY
(847-81315-20-00)
Unavailable
15
CLAMP
(104-81328-21-00)
Unavailable
16
SCREW, PAN HEAD (713)
98580-04008-00
Unavailable
17
YBS67-4 WASHER, SPRING
92990-04100-00
$0.86
18
PLATE, TIMING
(812-81332-20-00)
Unavailable
19
ROTOR ASSEMBLY
(847-81350-20-00)
Unavailable
20
SCREW, PAN
98507-06014-00
Unavailable
21
FAN
(834-12611-00-00)
Unavailable
22
BOLT
(90101-06004-00)
Unavailable
23
WASHER, SPRING
92995-06100-00
Unavailable
24
WASHER, PLATE
90201-06M08-00
Unavailable
25
COVER, HOLE
(812-81362-00-00)
Unavailable
26
SCREW, PAN
98507-08010-00
Unavailable
27
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
28
NUT
90170-16425-00
Unavailable
29
WASHER(JN5)
92907-16100-00
Unavailable
30
WASHER, PLATE (32N)
90201-163G6-00
Unavailable
