Description

Price

1

CASE, FAN

847-12621-01-00

Unavailable

2

CASE, FAN 2

(847-12622-00-00)

Unavailable

3

PIN,DOWEL (137)

93604-14012-00

$1.81

4

WASHER, LOCK

(90215-08070-00)

Unavailable

5

BOLT (682)

97013-08025-00

$8.49

6

STOPPER

847-15794-00-00

Unavailable

7

WASHER, SPRING

92907-06100-00

$4.25

8

SCREW, PAN

98517-06012-00

$3.78

9

PIN,DOWEL (137)

93604-14012-00

$1.81

10

BOLT, HEXAGON

(97306-06060-00)

Unavailable

11

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

12

COVER, MAGNETO

(834-12617-01-00)

Unavailable

13

WASHER, SPRING

92907-06100-00

$4.25

14

BOLT(3JP)

97017-06010-00

$3.76

15

PAD, FAN CASE

(835-12626-00-00)

Unavailable

16

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

17

AIR SHROUD, CYLINDER 1

(847-12651-00-00)

Unavailable

18

AIR SHROUD, CYLINDER 2

847-12652-00-00

Unavailable

19

SCREW, PAN

98507-06014-00

Unavailable

20

WASHER, SPRING

92907-06100-00

$4.25

21

WASHER(6TA)

92907-06200-00

Unavailable

22

NO LONGER AVAILABLE

835-12633-00-00

Unavailable

23

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

24

EMBLEM

(838-12629-00-00)

Unavailable

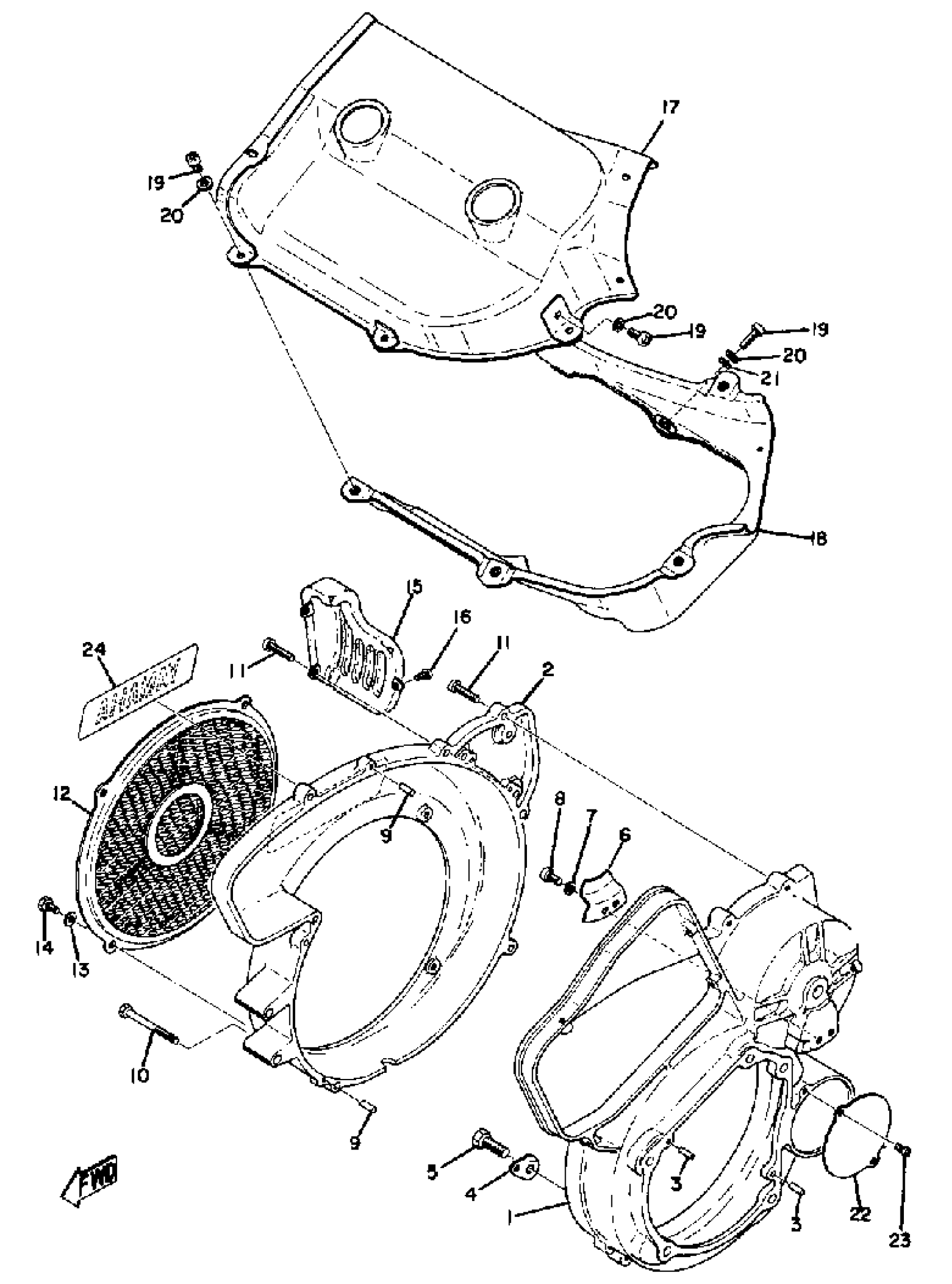

Yamaha GP643B 1973 FAN CASE-AIR SHROUD Diagram

CASE, FAN

CASE, FAN 2

PIN,DOWEL (137)

WASHER, LOCK

BOLT (682)

STOPPER

WASHER, SPRING

SCREW, PAN

PIN,DOWEL (137)

BOLT, HEXAGON

SCREW, PAN HEAD (76T)

COVER, MAGNETO

WASHER, SPRING

BOLT(3JP)

PAD, FAN CASE

SCREW, PAN HEAD(3LA)

AIR SHROUD, CYLINDER 1

AIR SHROUD, CYLINDER 2

SCREW, PAN

WASHER, SPRING

WASHER(6TA)

NO LONGER AVAILABLE

SCREW, PAN HEAD(3LA)

EMBLEM
