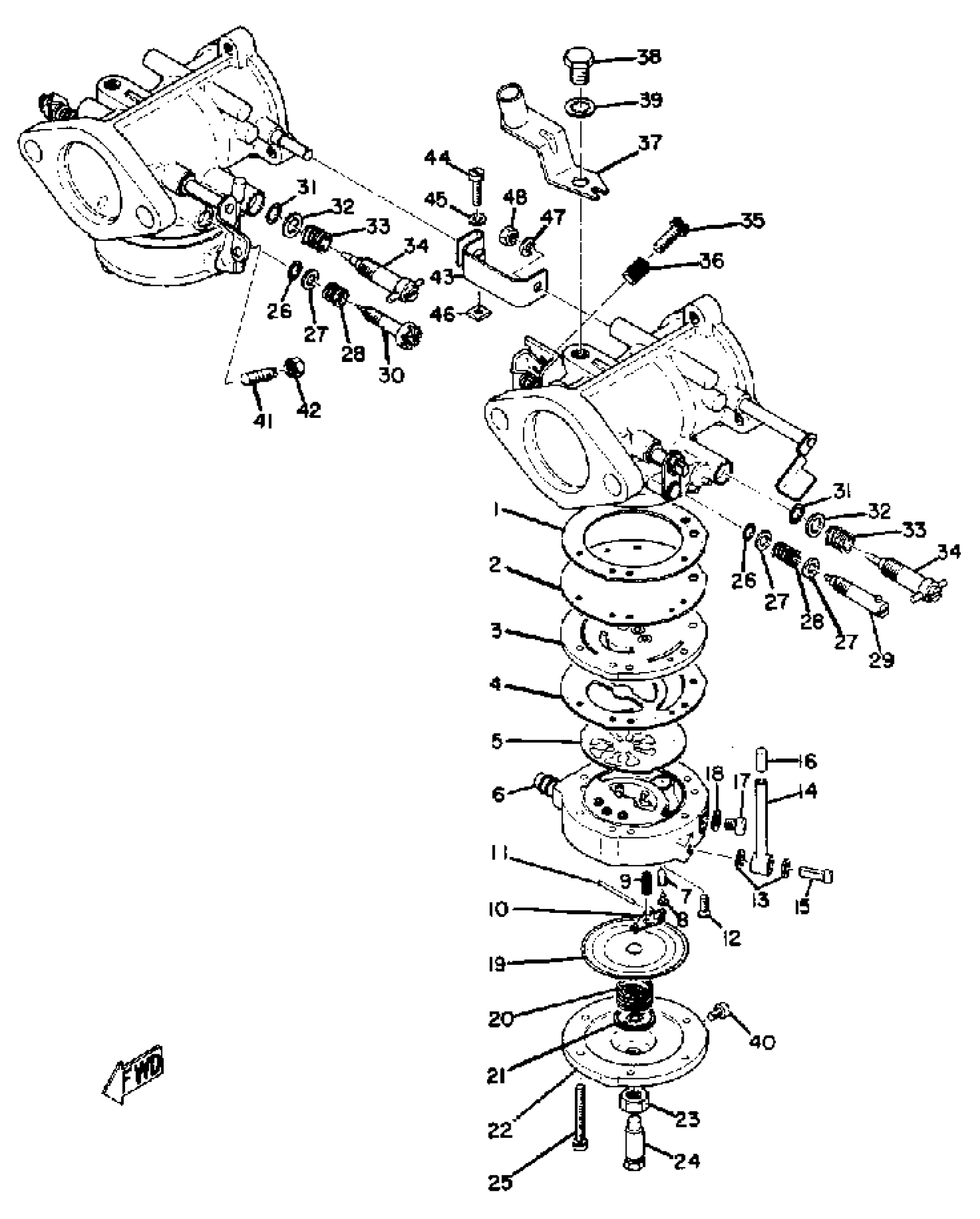

Yamaha GP643B 1973 CARBURETOR Diagram

#

Description
Price

1

GASKET

838-14536-09-00

Unavailable

1

CARBURETOR ASSEMBLY 1

847-14501-00-00

Unavailable

2

. DIAPHRAGM, PUMP

834-14541-00-00

Unavailable

2

CARBURETOR ASSEMBLY 2

(847-14502-00-00)

Unavailable

3

BODY, PUMP 1

(838-14542-00-00)

Unavailable

4

GASKET

834-14553-09-00

Unavailable

5

VALVE,CHECK

806-14552-01-00

$56.99

6

BODY, PUMP 2

(847-14543-00-00)

Unavailable

7

VALVE

838-14546-00-00

$43.99

8

. PIN, FLOAT

676-14186-00-00

Unavailable

9

. SPRING

810-14556-00-00

Unavailable

10

ARM, FLOAT

(810-14547-00-00)

Unavailable

11

PIN, FLOAT ARM

(806-14548-00-00)

Unavailable

12

SCREW, FLAT

98707-03008-00

$7.49

13

. WASHER

806-14559-00-00

Unavailable

14

. PIPE, AIRVENT

810-14197-02-00

Unavailable

15

. SCREW

8A1-14592-00-00

Unavailable

16

. CAP, BLIND

810-24462-01-00

Unavailable

17

SCREW

(806-14567-01-00)

Unavailable

18

. WASHER

810-14597-00-00

Unavailable

19

DIAPHRAGM

810-14545-00-00

Unavailable

20

SPRING

(810-14555-00-00)

Unavailable

21

SEAT, SPRING

(810-14136-00-00)

Unavailable

22

BODY, PUMP 3

(810-14544-00-00)

Unavailable

23

. NUT

95380-08700-00

Unavailable

24

. SCREW, STOP

824-14565-00-00

Unavailable

25

SCREW

(824-14567-00-00)

Unavailable

26

. O-RING

824-14563-00-00

Unavailable

27

. WASHER

838-14596-00-00

Unavailable

28

SPRING, AJST SCREW

(824-14531-00-00)

Unavailable

29

SCREW, ADJUST

(839-14522-00-00)

Unavailable

30

SCREW, ADJUST

(847-14522-00-00)

Unavailable

31

. O-RING

824-14564-00-00

Unavailable

32

. WASHER

838-14597-00-00

Unavailable

33

SPRING, AJST SCREW

(824-14533-00-00)

Unavailable

34

. SCREW, MAIN ADJUSTER

828-14521-00-00

Unavailable

35

SCREW, STOP

(810-14523-00-00)

Unavailable

36

SPRING, AJST SCREW

(806-14533-00-00)

Unavailable

37

BRACKET, THROTTLE

(823-14571-00-00)

Unavailable

38

BOLT(62E)

97013-08012-00

Unavailable

39

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

40

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

41

SCREW

(813-14591-00-00)

Unavailable

42

NUT

(806-14594-00-00)

Unavailable

43

CONNECTOR

(806-14588-00-00)

Unavailable

44

SCREW, STOP

(844-14566-00-00)

Unavailable

45

YBS66-4 WASHER, PLAIN

92990-04200-00

Unavailable

46

NUT

(806-14595-00-00)

Unavailable

47

WASHER

(806-14598-00-00)

Unavailable

48

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable
