TRACK DRIVE

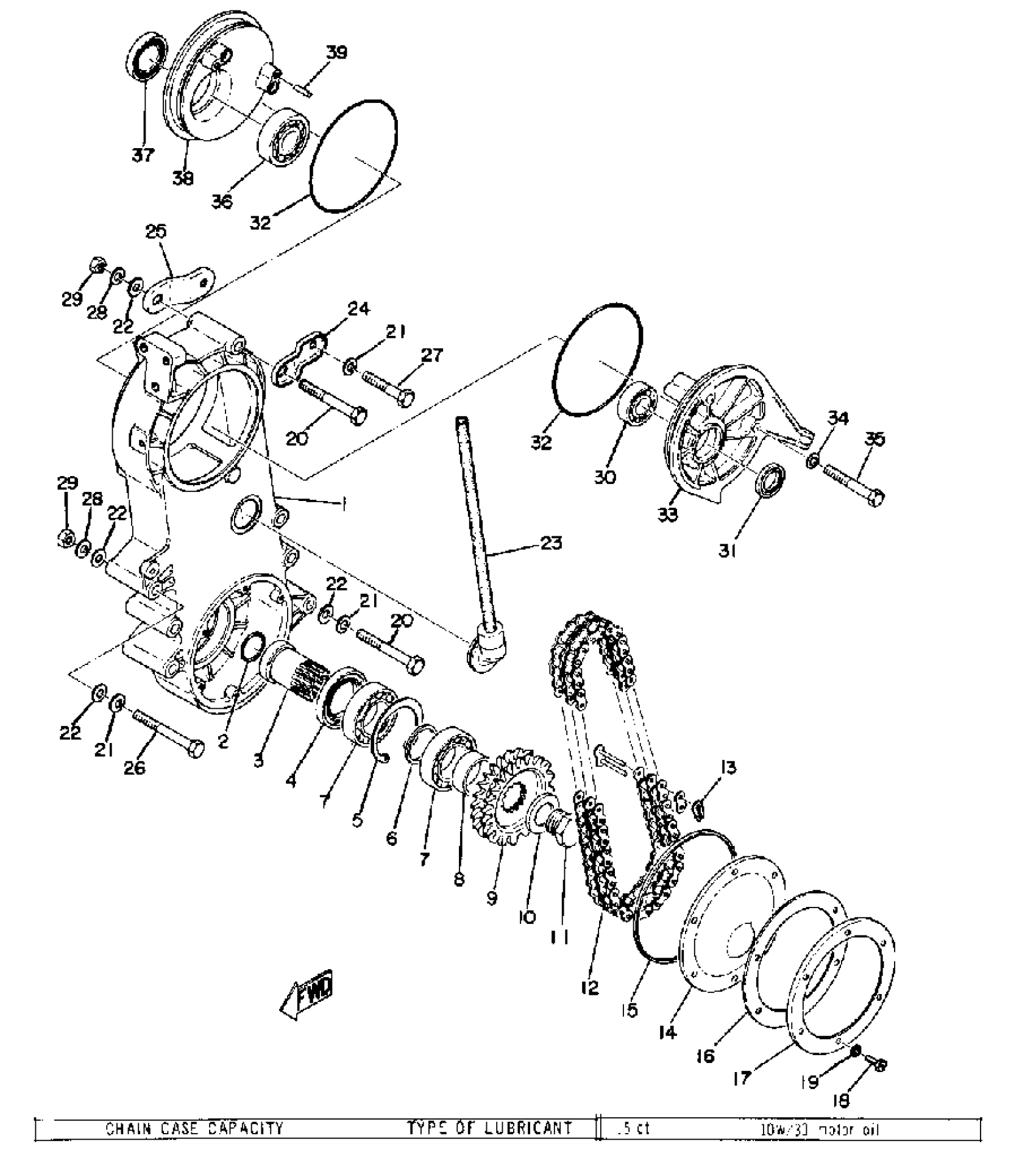

Yamaha GP643 1972 TRACK DRIVE Diagram
#
1
HOUSING, CHAIN
(835-47541-00-00)
Unavailable
2
O-RING (437)
93210-24235-00
$7.49
3
JOURNAL 1
(835-47571-00-00)
Unavailable
4
OIL SEAL, SD-TYPE
(93102-40101-00)
Unavailable
5
CIRCLIP(MF1)
99009-62500-00
$8.49
6
SPACER
90560-35050-00
Unavailable
7
BEARING (B6007)
93306-00701-00
Unavailable
8
COLLAR
(90387-35207-00)
Unavailable
9
SPROCKET, CHN DRVN
(835-47548-00-00)
Unavailable
9
SPROCKET, CHN DRVN
(835-47548-10-00)
Unavailable
9
SPROCKET, CHN DRVN
(835-47548-80-00)
Unavailable
9
SPROCKET, CHN DRVN
(835-47548-90-00)
Unavailable
10
SPRING, BELLEVILLE
821-47582-00-00
Unavailable
11
BOLT (802-47553-00)
90109-24202-00
Unavailable
12
CHAIN (DK425-2 62L)
94804-25062-00
Unavailable
13
. JOINT CHAIN
94904-25001-00
Unavailable
14
CAP, HOUSING
(835-47543-00-00)
Unavailable
15
RING, HOUSING
(806-47558-00-00)
Unavailable
16
GASKET
821-47544-00-00
Unavailable
17
PLATE
(821-47591-00-00)
Unavailable
18
SCREW
90143-05004-00
Unavailable
19
WASHER, SEAL
90210-05005-00
Unavailable
20
BOLT(6TC)
97027-08070-00
Unavailable
21
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
22
WASHER, PLAIN
92990-08200-00
Unavailable
23
CAP 2
JN3-47559-01-00
Unavailable
24
STAY 1
(820-47565-00-00)
Unavailable
25
STAY 2
(820-47566-00-00)
Unavailable
26
BOLT (6K8)
97013-08075-00
Unavailable
27
BOLT, HEXAGON
97013-08050-00
Unavailable
28
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
29
NUT(6L2)
95333-08600-00
Unavailable
30
BRG,R-B 6203RS 40MM 63.3G KY
93306-20310-00
Unavailable
31
OIL SEAL (22X32X5-818)
93102-22087-00
Unavailable
32
O-RING
93211-13109-00
Unavailable
33
HOUSING, SEC SHAFT
(835-47561-00-00)
Unavailable
34
WASHER (821)
90210-08002-00
Unavailable
35
BOLT (663)
97013-08060-00
Unavailable
36
BRG,R-B 6304 52MM 144G NT
93306-30407-00
Unavailable
37
OIL SEAL (30X47X7-810)
93102-30083-00
Unavailable
38
HOUSING, SEC SHAFT
810-47562-00-00
Unavailable
39
PIN, DOWEL(4SS)
93604-18251-00
Unavailable
