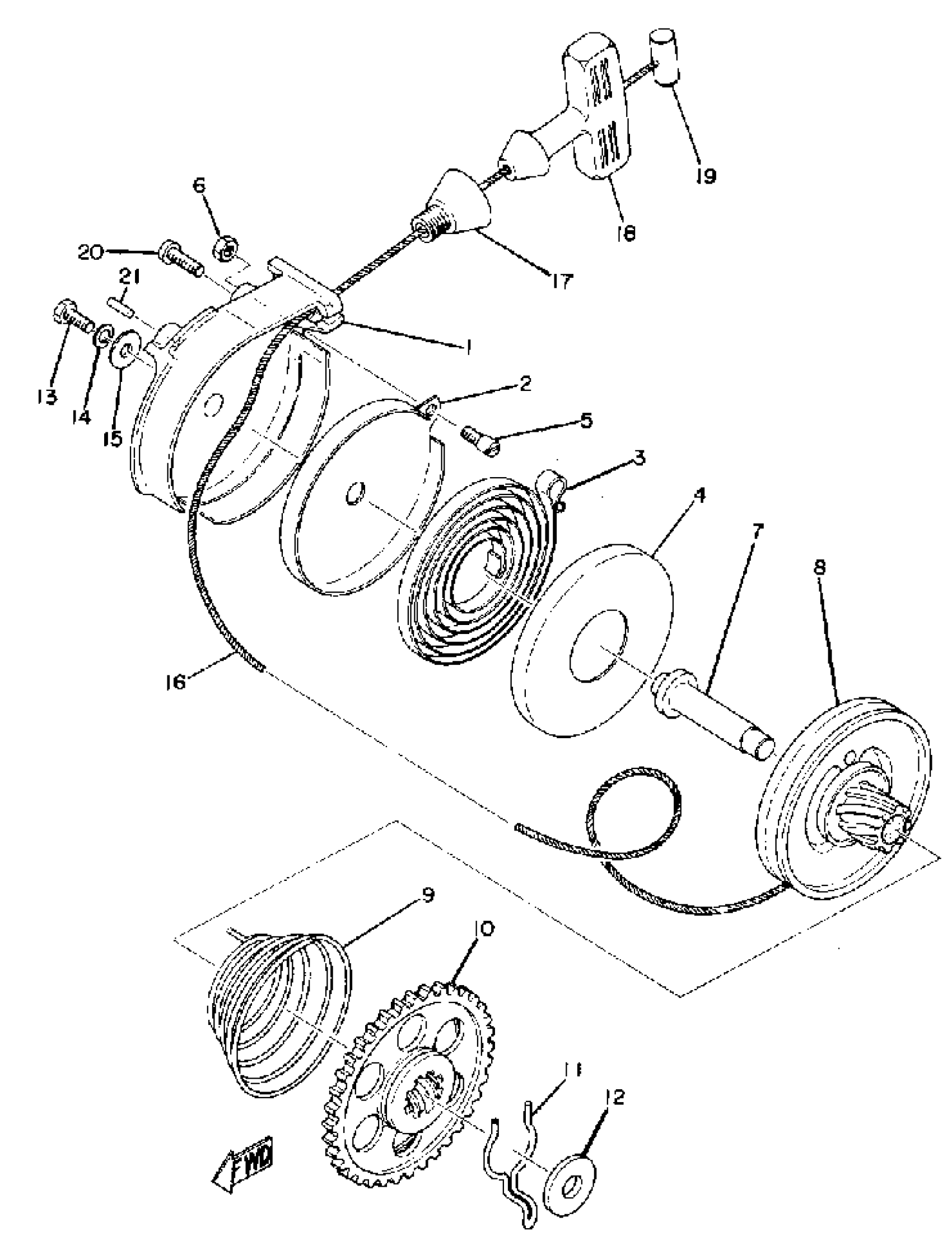

Yamaha GP643 1972 STARTER Diagram

#

Description
Price

1

STARTER ASSEMBLY

(834-15710-00-00)

Unavailable

1

CASE, STARTER

(834-15711-00-00)

Unavailable

2

CASE, SPRING R

(834-15769-00-00)

Unavailable

3

SPRING, SPIRAL

(90510-08003-00)

Unavailable

4

CASE, SPRING L

(834-15766-00-00)

Unavailable

5

. PIN, SPEC''L SHAPE (834-15727-00)

90249-06043-00

Unavailable

6

NUT, HEXAGON

95380-06600-00

Unavailable

7

. SHAFT, STARTER

834-15717-00-00

Unavailable

8

DRUM, SHEAVE

(834-15714-00-00)

Unavailable

9

SPRING, CONICAL

(90502-16020-00)

Unavailable

10

GEAR, STARTER

(834-15786-00-00)

Unavailable

11

CLIP

(90468-35041-00)

Unavailable

12

. WASHER, PLATE (834-15726-00)

90201-12311-00

Unavailable

13

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

14

WASHER, SPRING

92995-06100-00

Unavailable

15

WASHER, PLATE

90201-06M02-00

Unavailable

16

ROPE, STARTER

(834-15751-00-00)

Unavailable

17

GUIDE, ROPE

(834-15758-00-00)

Unavailable

18

. HANDLE, STARTER

807-15755-00-00

Unavailable

19

CONNECTOR 1

(834-15756-00-00)

Unavailable

20

SCREW, PAN

98517-06020-00

Unavailable

21

PIN,DOWEL (137)

93604-14012-00

Unavailable
