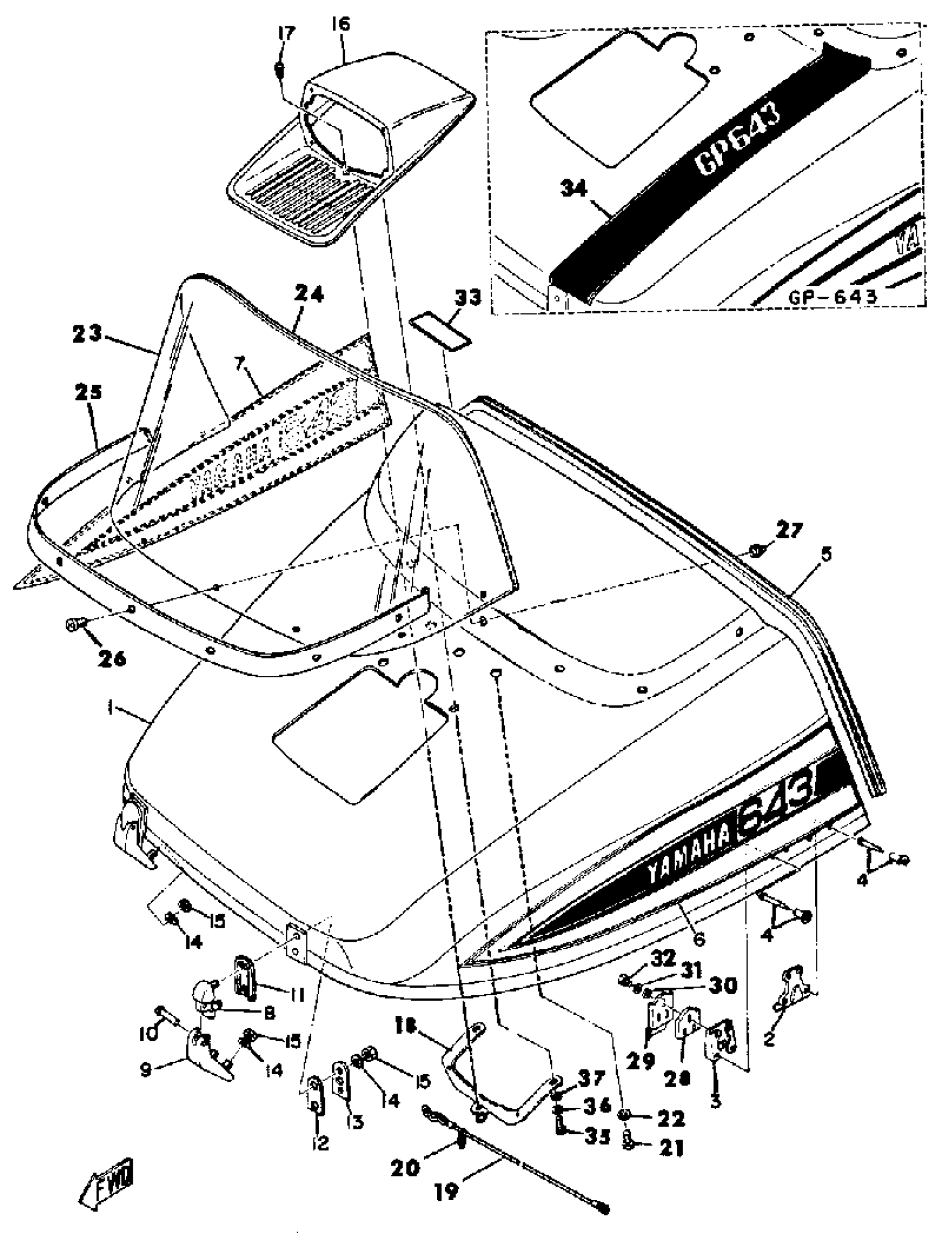

Yamaha GP643 1972 SHROUD Diagram

#

Description

Price

1

SHROUD

(835-77111-00-00)

Unavailable

2

. BODY, LATCH 1

806-77171-00-00

Unavailable

3

CLAMP 4

(811-77138-00-00)

Unavailable

4

. RIVET, BLIND ()806-77175-00)

90267-40026-00

Unavailable

5

TRIM 2

(835-77166-00-00)

Unavailable

6

ORNAMENT 1

(834-77163-00-00)

Unavailable

7

ORNAMENT 2

(834-77164-00-00)

Unavailable

8

HINGE 1

(806-77145-00-00)

Unavailable

9

HINGE 3

806-77147-00-00

Unavailable

10

PIN (806-77157-00)

90243-05002-00

Unavailable

11

DAMPER 1

(806-77198-00-00)

Unavailable

12

DAMPER 2

810-77199-00-00

Unavailable

13

PLATE, BACK UP 1

810-77153-00-00

Unavailable

14

WASHER, SPRING

92995-06100-00

Unavailable

15

NUT, HEXAGON

95380-06600-00

Unavailable

16

BODY, HEADLIGHT

(811-84311-00-00)

Unavailable

17

SCREW, PAN

98517-05012-00

Unavailable

18

HOLDER, ROD 1

(826-77139-00-00)

Unavailable

19

STOPPER, SHROUD

(826-77118-00-00)

Unavailable

20

CLAMP, ROD

(806-77159-00-00)

Unavailable

21

BOLT, HEXAGON

(97306-05015-00)

Unavailable

22

WASHER, PLAIN

(807-84344-00-00)

Unavailable

23

WINDSHIELD

835-77210-00-00

Unavailable

25

TRIM, LOWER

(807-77214-00-00)

Unavailable

26

UNAVAILABLE IN PRICE BOOK

98903-05105-00

Unavailable

27

NUT, T (802-77217-00)

90180-05004-00

Unavailable

28

WASHER 2

810-77179-00-00

Unavailable

29

CLAMP 2

810-77136-00-00

Unavailable

30

WASHER, PLATE 8067717800

90201-05029-00

Unavailable

31

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

32

BOLT, HEXAGON

97013-05010-00

Unavailable

33

LABEL, SAFETY

288-21659-00-00

Unavailable

34

ORNAMENT 3

(835-77169-00-00)

Unavailable

35

BOLT(3JK)

97027-05020-00

Unavailable

36

WASHER(3SX)

92907-05100-00

Unavailable

37

WASHER, PLAIN LARGE

92907-05200-00

Unavailable
