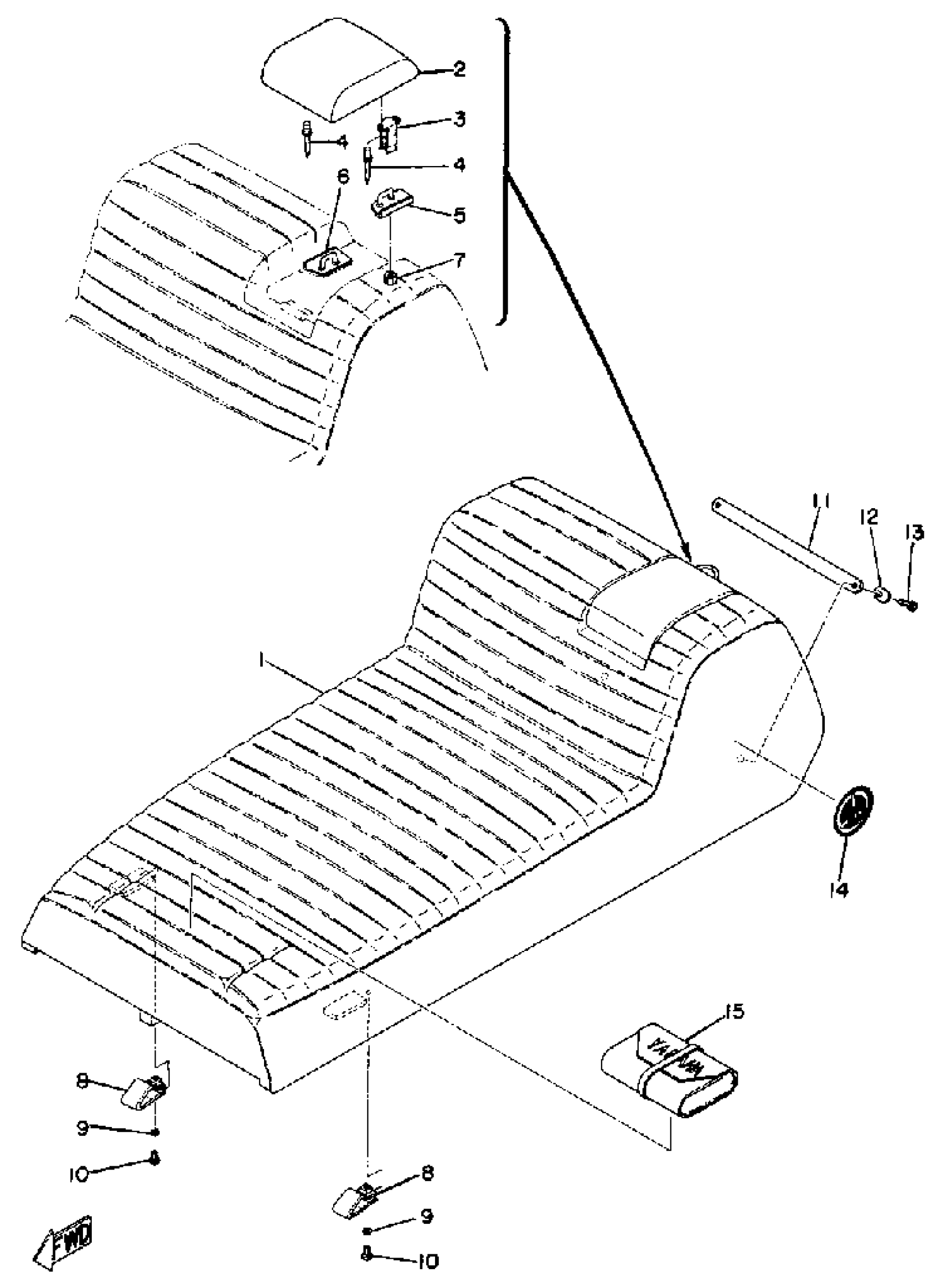

Yamaha GP643 1972 SEAT Diagram

#

Description

Price

1

DOUBLE SEAT ASSEMBLY

(835-24730-00-00)

Unavailable

1

. COVER, DOUBLE SEAT

835-24731-00-00

Unavailable

2

LID, DOUBLE SEAT

(822-24765-00-00)

Unavailable

3

SPRING, SEAT BACK

(821-24794-00-00)

Unavailable

4

. UNAVAILABLE IN PRICE BOOK (821-24789-00)

92067-32016-00

Unavailable

5

PIN

(821-24793-00-00)

Unavailable

6

RIVET, BLIND

(90267-32016-00)

Unavailable

7

NUT(650)

95380-06700-00

$5.75

8

PLATE, SEAT FITTING

(809-24744-00-00)

Unavailable

9

WASHER, SPRING

92995-06100-00

$2.95

10

SCREW, PAN

98507-06014-00

$5.76

11

WASHER, SEAT

(813-24746-00-00)

Unavailable

12

WASHER, LOCK

(90215-07064-00)

Unavailable

13

BOLT(7U8)

97080-06020-00

$3.63

14

EMBLEM 2

821-77352-00-00

Unavailable

15

TOOL KIT

(835-28100-00-00)

Unavailable
