1972 Yamaha GP643 Bumper Diagram

← All diagrams

Find the part on the Bumper diagram for your 1972 Yamaha GP643, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

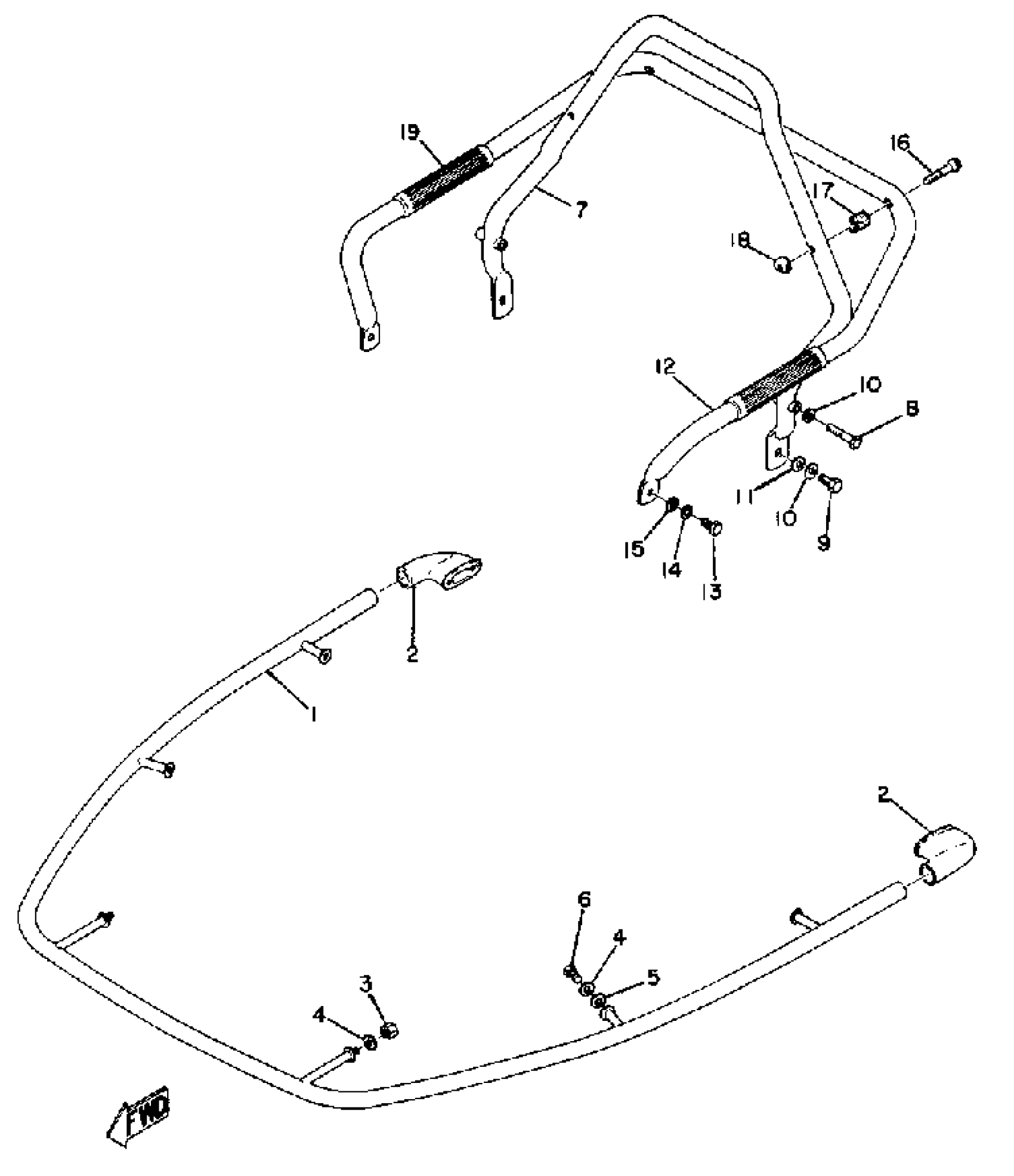

1972 Yamaha GP643 Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT BUMPER

826-77510-00-00

1
Out of stock

2

END, BUMPER

821-77523-00-00

1
Out of stock

3

NUT(6L2)

95333-08600-00

1

$3.20

In stock

4

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

5

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

6

BOLT, HEXAGON

97013-08016-00

1

$1.32

In stock

7

BUMPER, REAR 1

826-77541-00-00

1
Out of stock

8

BOLT

97013-08045-00

—
Out of stock

9

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

10

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

11

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

12

GRIP, ASSIST 1

(826-77571-00-00)

1
Out of stock

13

BOLT, HEXAGON

97013-06018-00

1

$1.54

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

16

SCREW

92601-06050-00

1
Out of stock

17

BUSH, RUBBER 1

(806-77515-00-00)

1
Out of stock

18

NUT, SPECIAL

806-77573-00-00

1
Out of stock

19

COVER, ASSIST GRIP

(807-77575-00-00)

1
Out of stock
← Tail Lamp Frame →
