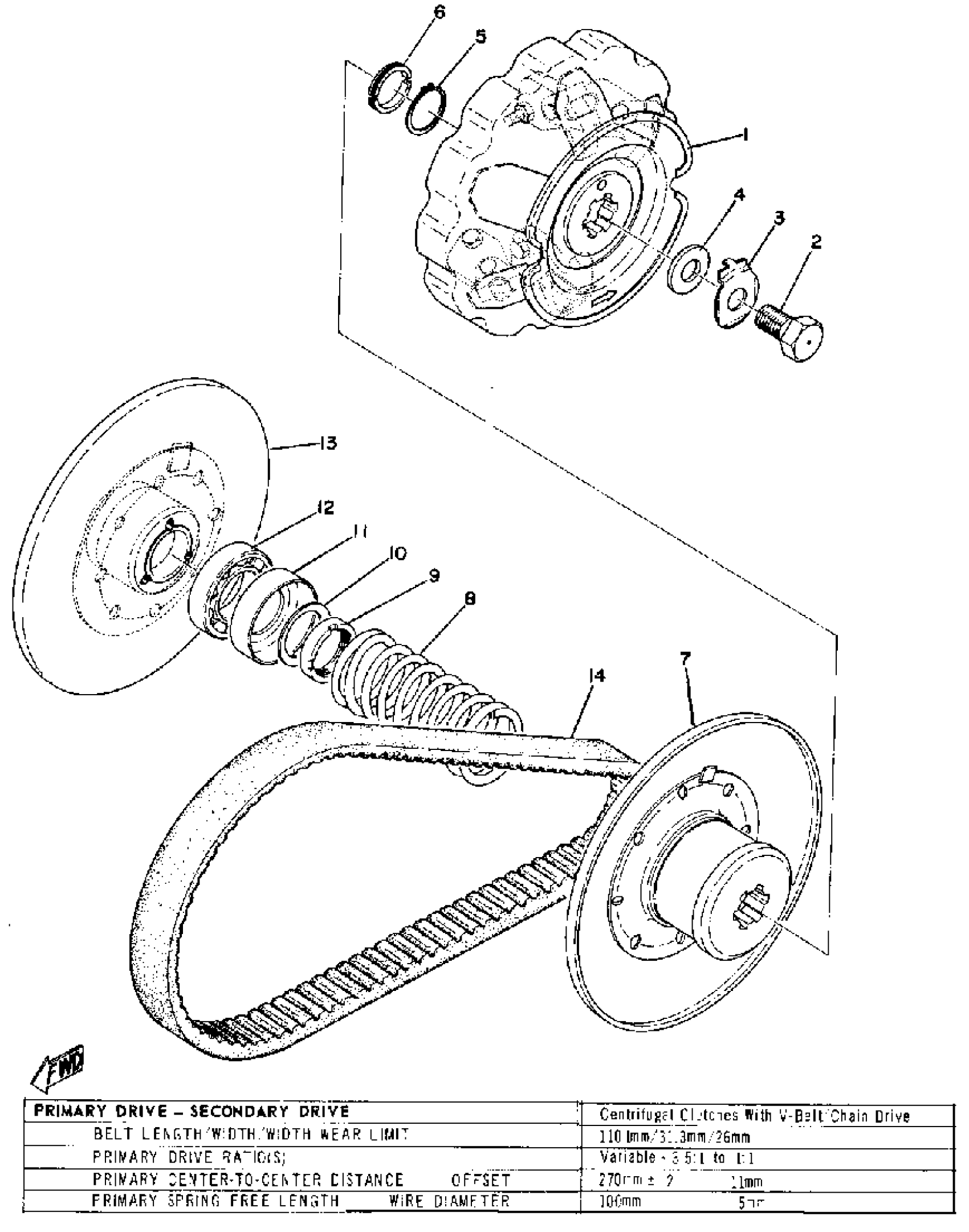

Yamaha GP643 1972 PRIMARY SHEAVE Diagram

#

Description

Price

1

PRI SHV CAP

835-17630-00-00

Unavailable

2

BOLT (835-17647-00)

90109-14081-00

Unavailable

3

WASHER, LOCK

835-17646-00-00

Unavailable

4

WASHER, PLATE(3FC)

90201-142M6-00

$9.49

5

CIRCLIP(4A6)

99009-30400-00

$8.49

6

COLLAR

(835-17645-00-00)

Unavailable

7

PRI SLIDG SHEAVE

(835-17620-00-00)

Unavailable

8

SPRING, COMPRESSION (835-17643-00)

90501-50176-00

Unavailable

9

NUT, SPEC''L SHAPE (835-17642-00)

90179-30091-00

Unavailable

10

WASHER, CONICAL SPR (835-17648-00)

90208-30004-00

Unavailable

11

SEAT, SPRING

(835-17644-00-00)

Unavailable

12

BEARING

(93306-00603-00)

Unavailable

13

PRI FIXED SHEAVE

(835-17610-00-00)

Unavailable

14

V-BELT

820-17641-01-00

Unavailable
