1972 Yamaha GP643 Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1972 Yamaha GP643, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

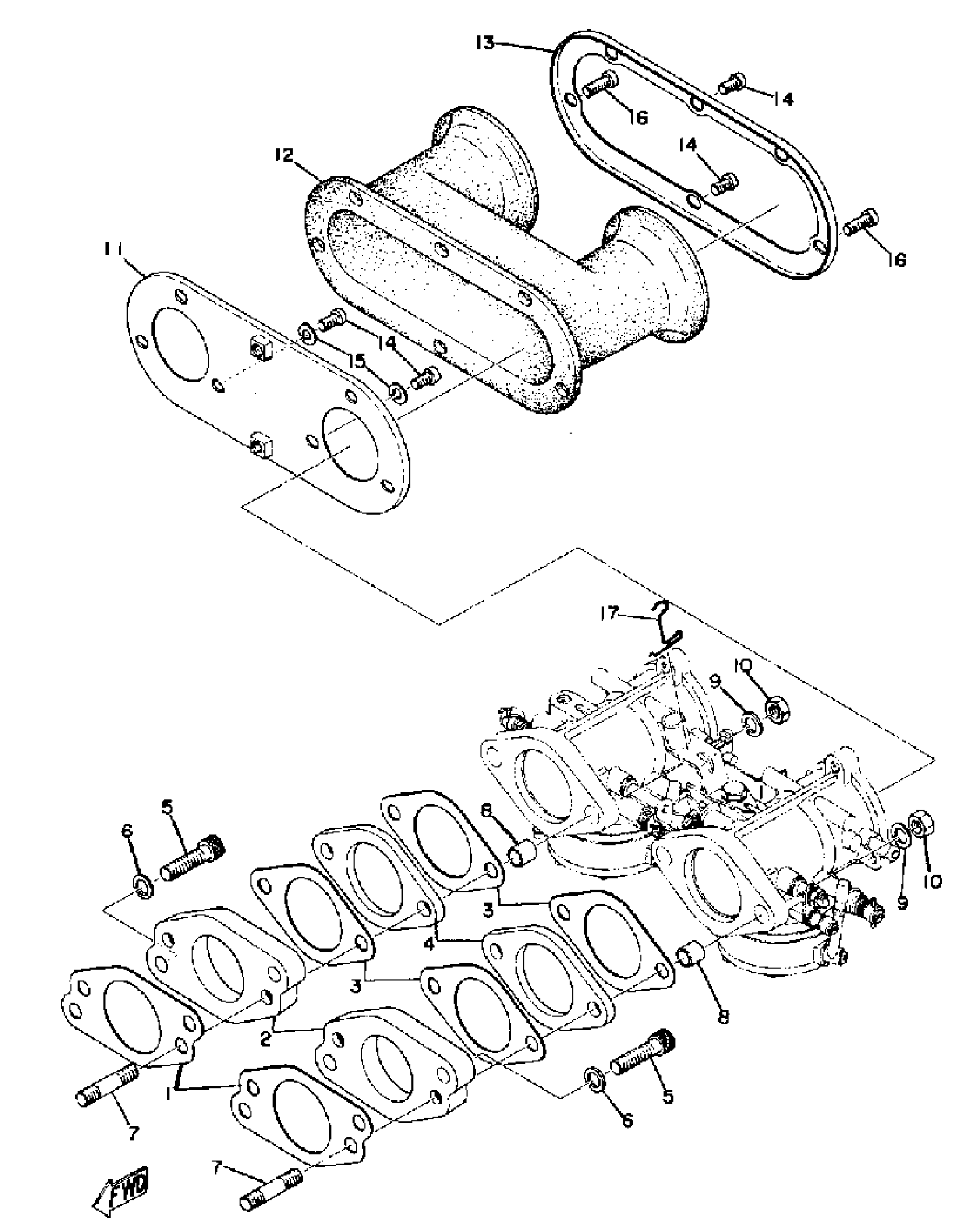

1972 Yamaha GP643 Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET, MANIFOLD

835-13556-00-00

1
Out of stock

2

JOINT, CARBURETOR

(835-13565-00-00)

1
Out of stock

3

GASKET, MANIFOLD

812-13556-09-00

1
Out of stock

4

JOINT, CARBURETOR

(835-13585-00-00)

1
Out of stock

5

BOLT, SOCKET

91317-08030-00

1

$6.17

In stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

BOLT, STUD

(90116-08045-00)

1
Out of stock

8

SPACER

(810-13576-00-00)

1
Out of stock

9

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

10

. NUT

95380-08700-00

1

$3.07

In stock

11

PLATE

(835-14477-00-00)

1
Out of stock

12

FUNNEL

(835-14479-00-00)

1
Out of stock

13

HOLDER, GUIDE

(835-14459-00-00)

1
Out of stock

14

SCREW PAN HEAD

98580-06010-00

1

$6.17

In stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

SCREW, PAN

98507-06014-00

—

$6.18

In stock

17

CLAMP, THROTTLE

822-41222-00-00

1
Out of stock
