1972 Yamaha GP643 Carburetor Diagram

← All diagrams

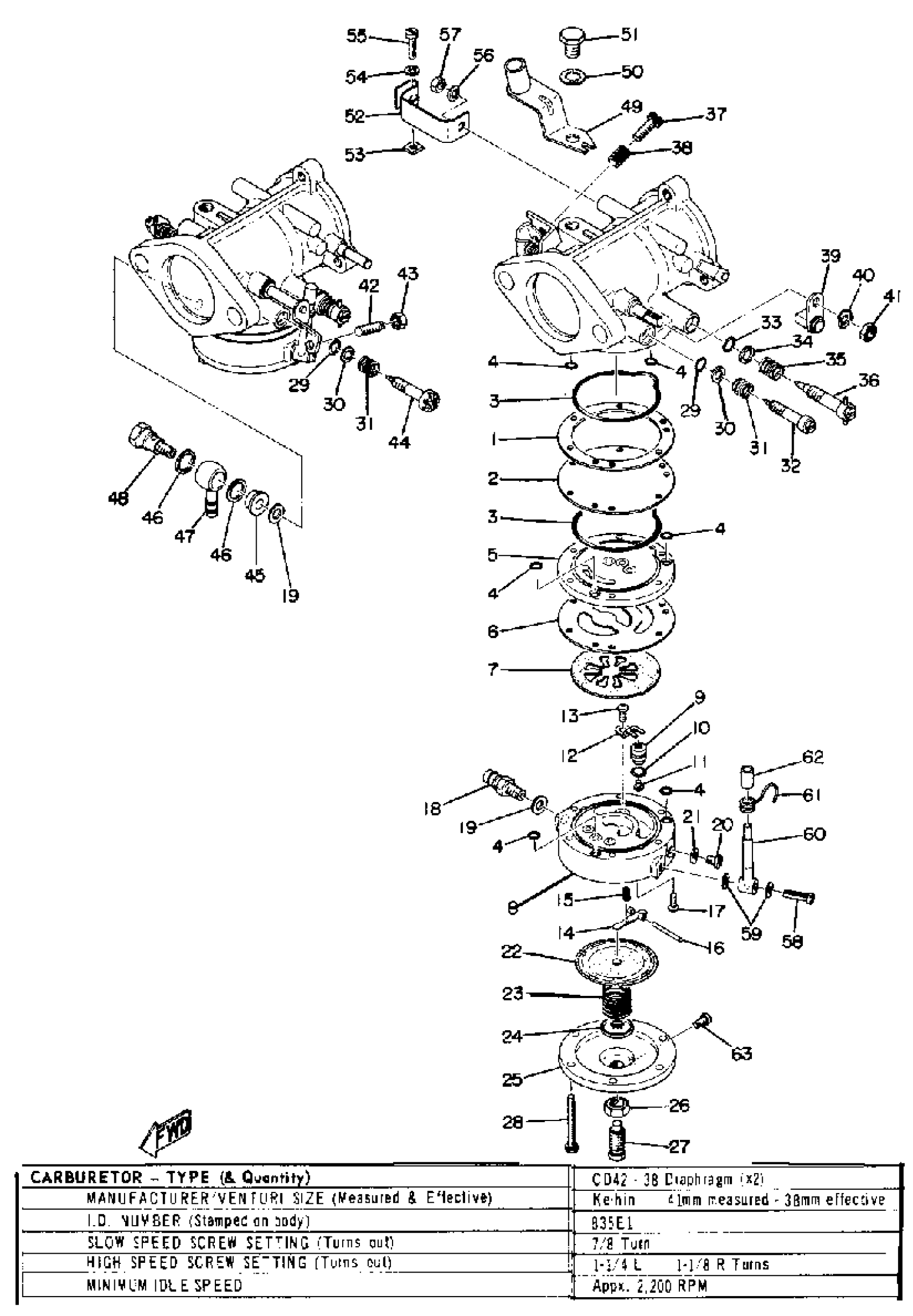

Find the part on the Carburetor diagram for your 1972 Yamaha GP643, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha GP643 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

. GASKET

806-14536-00-00

1
Out of stock

1

CARBURETOR ASSEMBLY 1

(835-14501-00-00)

1
Out of stock

2

. DIAPHRAGM, PUMP

806-14541-00-00

1
Out of stock

2

CARBURETOR ASSEMBLY 2

(835-14502-00-00)

1
Out of stock

3

. O-RING

806-14562-00-00

1
Out of stock

4

. O-RING

810-14561-00-00

1
Out of stock

5

BODY, PUMP 1

(824-14542-00-00)

1
Out of stock

6

GASKET

(810-14553-00-00)

1
Out of stock

7

VALVE,CHECK

806-14552-01-00

1

$47.25

In stock

8

BODY, PUMP 2

(810-14543-00-00)

1
Out of stock

9

VALVE SEAT ASSEMBLY

(824-14590-00-00)

1
Out of stock

10

. O-RING

810-24486-00-00

1
Out of stock

11

. PIN, FLOAT

676-14186-00-00

1

$7.15

In stock

12

PLATE, PIN FITTING

(810-14549-00-00)

1
Out of stock

13

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

14

ARM, FLOAT

(810-14547-00-00)

1
Out of stock

15

. SPRING

810-14556-00-00

1
Out of stock

16

PIN, FLOAT ARM

(806-14548-00-00)

1
Out of stock

17

SCREW, FLAT

98707-03008-00

—

$5.62

In stock

18

JOINT

(813-14568-00-00)

1
Out of stock

19

WASHER

(810-14558-00-00)

1
Out of stock

20

SCREW

(806-14567-01-00)

1
Out of stock

21

. WASHER

810-14597-00-00

1
Out of stock

22

DIAPHRAGM

810-14545-00-00

—
Out of stock

23

SPRING

(810-14555-00-00)

1
Out of stock

24

SEAT, SPRING

(810-14136-00-00)

1
Out of stock

25

BODY, PUMP 3

(813-14544-00-00)

1
Out of stock

26

. NUT

95380-08700-00

1

$3.07

In stock

27

. SCREW, STOP

824-14565-00-00

1
Out of stock

28

SCREW

(824-14567-00-00)

1
Out of stock

29

. O-RING

824-14563-00-00

1
Out of stock

30

. WASHER

806-14596-00-00

1
Out of stock

31

SPRING, AJST SCREW

(824-14531-00-00)

1
Out of stock

32

. SCREW, ADJUST

824-14522-00-00

1
Out of stock

33

. O-RING

824-14564-00-00

1
Out of stock

34

. WASHER

824-14597-00-00

1
Out of stock

35

SPRING, AJST SCREW

(824-14533-00-00)

1
Out of stock

36

. SCREW, MAIN ADJUSTER

828-14521-00-00

1
Out of stock

37

SCREW, STOP

(806-14523-00-00)

1
Out of stock

38

SPRING, AJST SCREW

(806-14533-00-00)

1
Out of stock

39

LEVER

(835-14573-00-00)

1
Out of stock

40

WASHER, LOCK

(806-14599-00-00)

1
Out of stock

41

NUT, HEXAGON SMALL

95317-05700-00

—

$6.18

In stock

42

SCREW

(813-14591-00-00)

1
Out of stock

43

NUT

(806-14594-00-00)

1
Out of stock

44

. SCREW, ADJUST

828-14522-00-00

1
Out of stock

45

COLLAR

(835-14534-00-00)

1
Out of stock

46

WASHER

(835-14558-00-00)

1
Out of stock

47

BANJO, FUEL PIPE

(835-14576-00-00)

1
Out of stock

48

JOINT

(835-14568-00-00)

1
Out of stock

49

BRACKET, THROTTLE

(823-14571-00-00)

1
Out of stock

50

WASHER, IN.TOOTH

(92901-08300-00)

1
Out of stock

51

BOLT(8X2)

90101-08344-00

—

$1.12

In stock

52

CONNECTOR

(806-14588-00-00)

1
Out of stock

53

NUT

(806-14595-00-00)

1
Out of stock

54

YBS66-4 WASHER, PLAIN

92990-04200-00

—

$1.10

In stock

55

SCREW, PAN HEAD(GA5)

98580-04014-00

—

$2.78

In stock

56

WASHER

(806-14598-00-00)

1
Out of stock

57

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

58

. SCREW

8A1-14592-00-00

1
Out of stock

59

. WASHER

806-14559-00-00

1
Out of stock

60

. PIPE, AIRVENT

810-14197-02-00

1
Out of stock

61

CLIP

(824-14159-00-00)

1
Out of stock

62

. CAP, BLIND

810-24462-01-00

1
Out of stock

63

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock
