FLYWHEEL MAGNETO

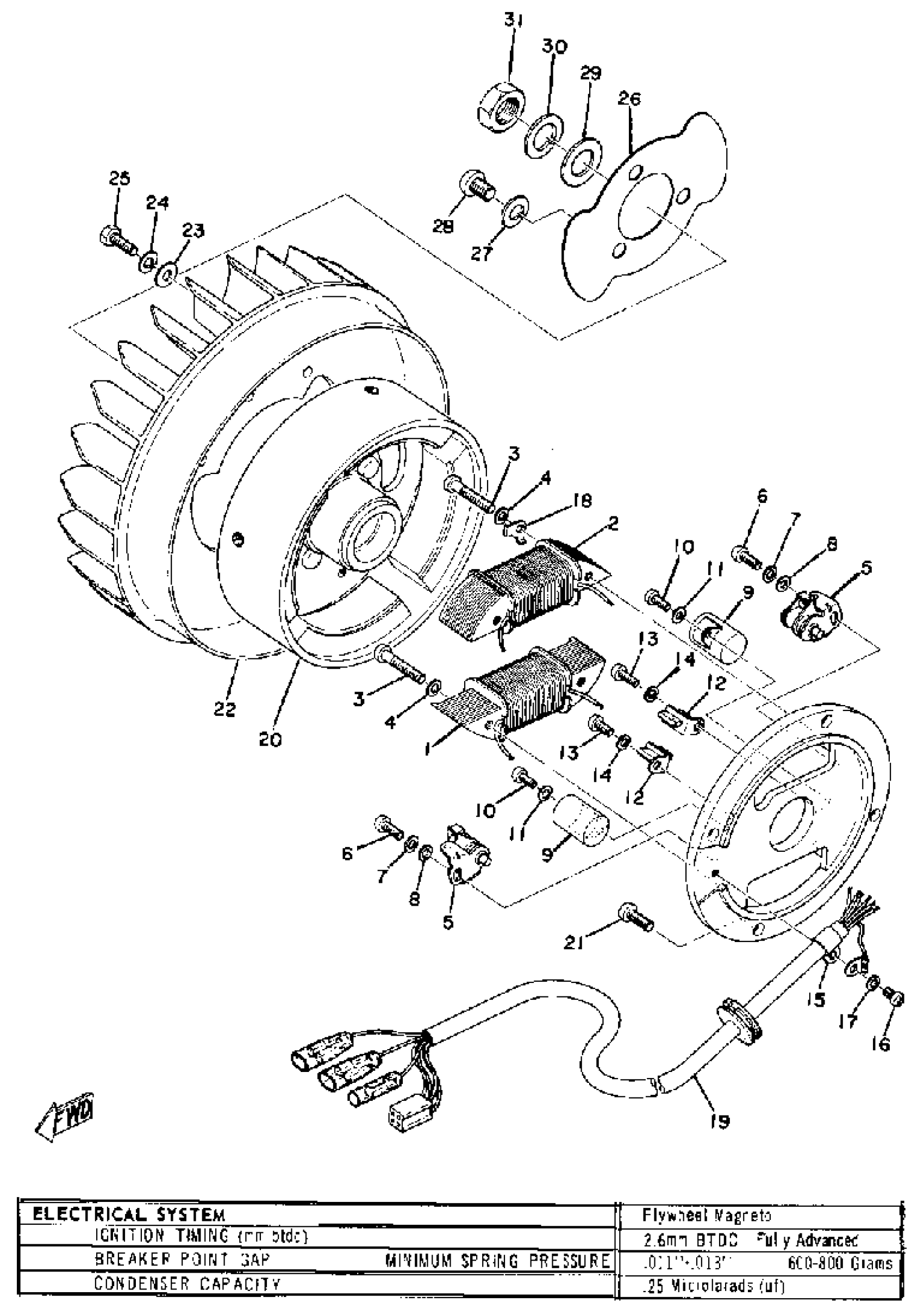

Yamaha GP643 1972 FLYWHEEL MAGNETO Diagram
#
1
FLYWHL MAGNETO ASSEMBLY
(834-81300-20-00)
Unavailable
1
COIL, SOURCE
(834-81312-20-00)
Unavailable
2
COIL, LIGHTING 1
(812-81313-20-00)
Unavailable
3
. SCREW, PAN HEAD
802-81345-20-00
Unavailable
4
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
5
. CONTACT BRKR ASSEMBLY
806-81321-20-00
Unavailable
6
SCREW, PAN HEAD
110-81346-21-00
$5.49
7
YBS67-4 WASHER, SPRING
92990-04100-00
$0.86
8
YBS66-4 WASHER, PLAIN
92990-04200-00
$1.86
9
. CONDENSER 1
802-81325-90-00
Unavailable
10
SCREW, PAN HEAD
110-81346-21-00
$5.49
11
YBS67-4 WASHER, SPRING
92990-04100-00
$0.86
12
. LUBRICATOR
116-81331-20-00
Unavailable
13
SCREW, PAN HEAD
110-81346-21-00
$5.49
14
YBS67-4 WASHER, SPRING
92990-04100-00
$0.86
15
CLAMP, LEAD
104-81328-20-00
Unavailable
16
SCREW, PAN HEAD (713)
98580-04008-00
Unavailable
17
YBS67-4 WASHER, SPRING
92990-04100-00
$0.86
18
PLATE, TIMING
(812-81332-20-00)
Unavailable
19
LEAD WIRE ASSEMBLY
(834-81315-20-00)
Unavailable
20
ROTOR ASSEMBLY
(834-81350-20-00)
Unavailable
21
SCREW, PAN
98507-06014-00
Unavailable
22
FAN
(834-12611-00-00)
Unavailable
23
WASHER, PLATE
90201-06M08-00
Unavailable
24
WASHER, SPRING
92995-06100-00
Unavailable
25
BOLT
(90101-06006-00)
Unavailable
26
COVER, HOLE
(812-81362-00-00)
Unavailable
27
WASHER(JN5)
92907-08100-00
Unavailable
28
SCREW, PAN
98507-08010-00
Unavailable
29
WASHER
(92901-16247-00)
Unavailable
30
WASHER(JN5)
92907-16100-00
Unavailable
31
NUT
90170-16425-00
Unavailable
