1977 Yamaha GP440A Steering Gate Diagram

← All diagrams

Find the part on the Steering Gate diagram for your 1977 Yamaha GP440A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

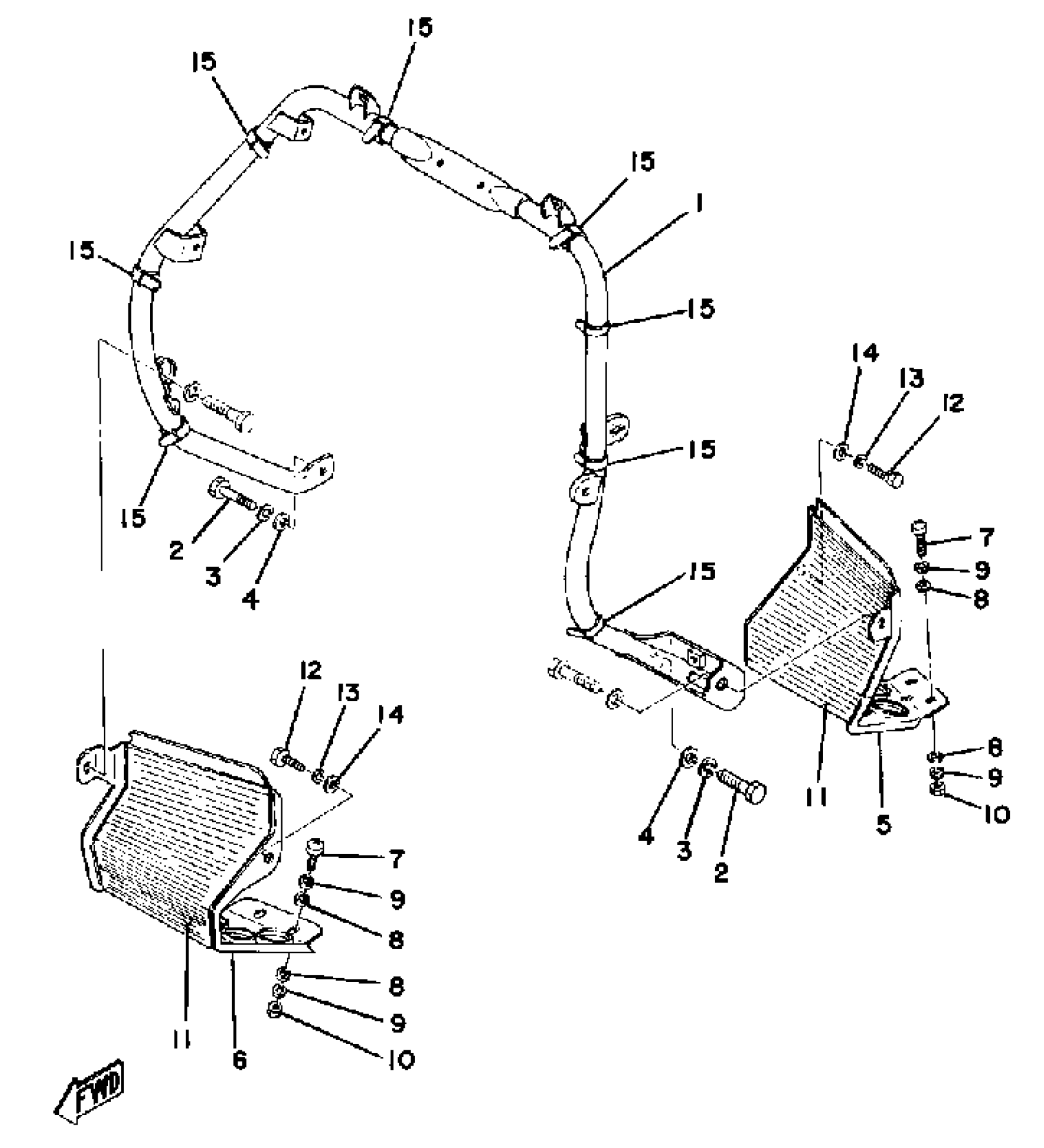

1977 Yamaha GP440A Steering Gate Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEERING GATE

(8A1-23870-00-00)

1
Out of stock

2

BOLT, HEXAGON

97027-08018-00

—

$1.62

In stock

3

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock

4

WASHER, LOCK 2

(861-23895-00-00)

1
Out of stock

5

FOOTREST 1

(8A1-27411-00-00)

1
Out of stock

6

FOOTREST 2

(8A1-27421-00-00)

1
Out of stock

7

SCREW, PAN

98507-06014-00

1

$6.18

In stock

8

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

11

DAMPER, NOISE 11

(8A1-77271-00-00)

1
Out of stock

12

BOLT (661)

97013-06012-00

1

$4.71

In stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

14

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

15

BAND, SWITCH CORD

437-83936-11-00

1

$3.20

In stock
