1977 Yamaha GP440A Electrical Diagram

← All diagrams

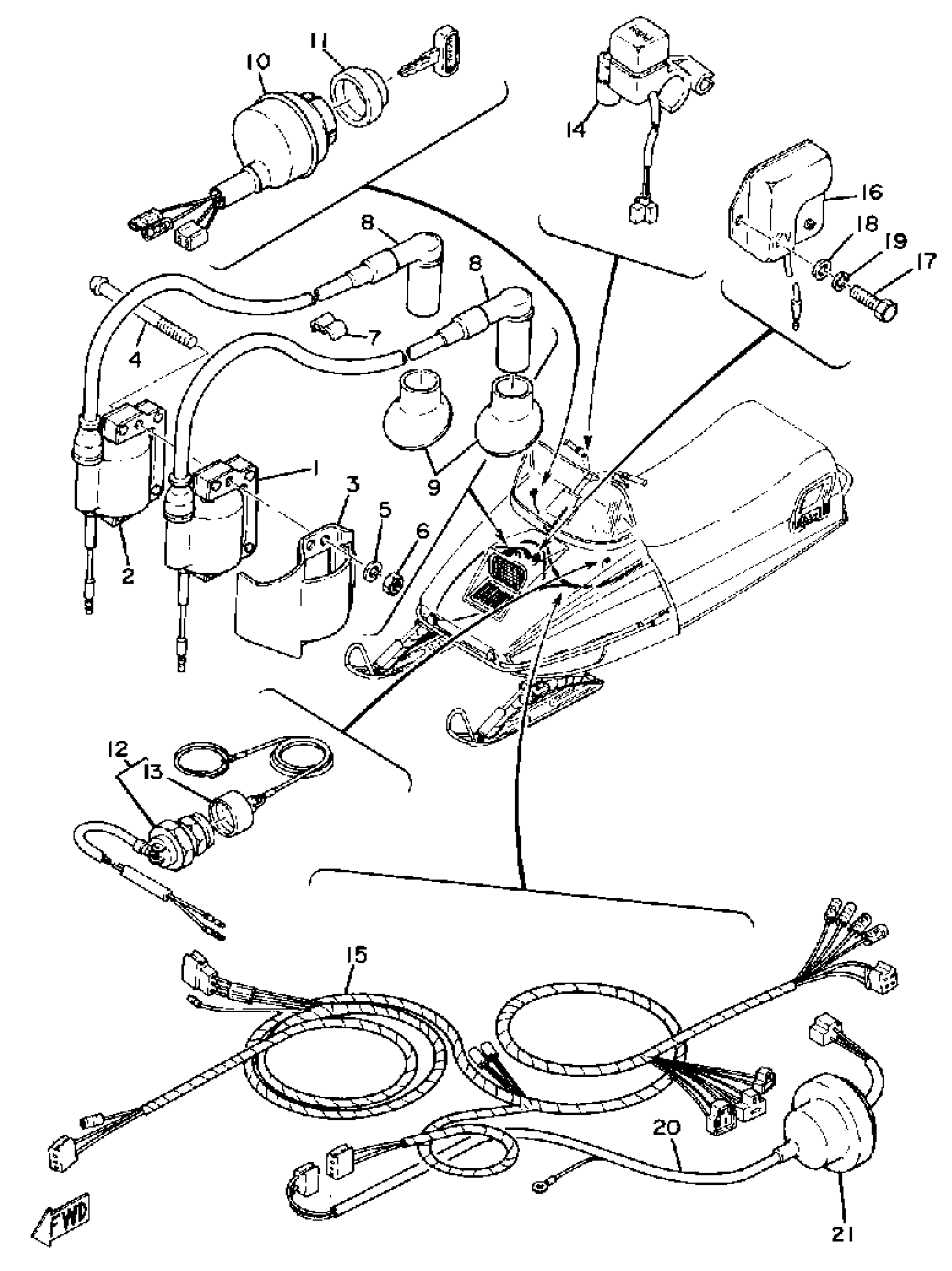

Find the part on the Electrical diagram for your 1977 Yamaha GP440A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha GP440A Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITION COIL ASSEMBLY

838-82310-40-00

1
Out of stock

2

IGNITION COIL ASSEMBLY

(839-82310-40-00)

1
Out of stock

3

COVER, IGNITN COIL

(838-82314-00-00)

1
Out of stock

4

SCREW, PAN HEAD

98507-06070-00

1

$6.91

In stock

5

WASHER, SPRING

92907-06100-00

1
Out of stock

6

NUT(6TA)

95317-06600-00

1

$2.69

In stock

7

CLAMP, CORD

861-82361-00-00

—

$5.34

In stock

8

PLUG CAP ASSEMBLY

8A5-82370-20-00

1
Out of stock

9

SEAL, PLUG CAP

(8A1-82372-00-00)

1
Out of stock

10

MAIN SWITCH ASSEMBLY

898-82508-20-00

1
Out of stock

11

COLLAR, MAIN SWITCH

806-82516-00-00

1
Out of stock

12

STOP SWITCH ASSEMBLY

8J7-82550-01-00

1
Out of stock

13

CAP, SWITCH

8H8-82552-09-00

1

$42.05

In stock

14

SWITCH, HANDLE 1

8E3-83976-02-00

1

$93.69

In stock

15

WIRE HARNESS ASSEMBLY

(8E4-82590-20-00)

1
Out of stock

16

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

—

$50.55

In stock

17

BOLT (661)

97013-06012-00

—

$4.71

In stock

18

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

19

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

20

CORD, HEADLIGHT (865-84359-00)

8E4-84359-00-00

1
Out of stock

21

COVER, CONNECTER

(838-82599-00-00)

1
Out of stock
← Steering Gate Flywheel Magneto →
