1977 Yamaha GP440A Shroud Diagram

← All diagrams

Find the part on the Shroud diagram for your 1977 Yamaha GP440A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

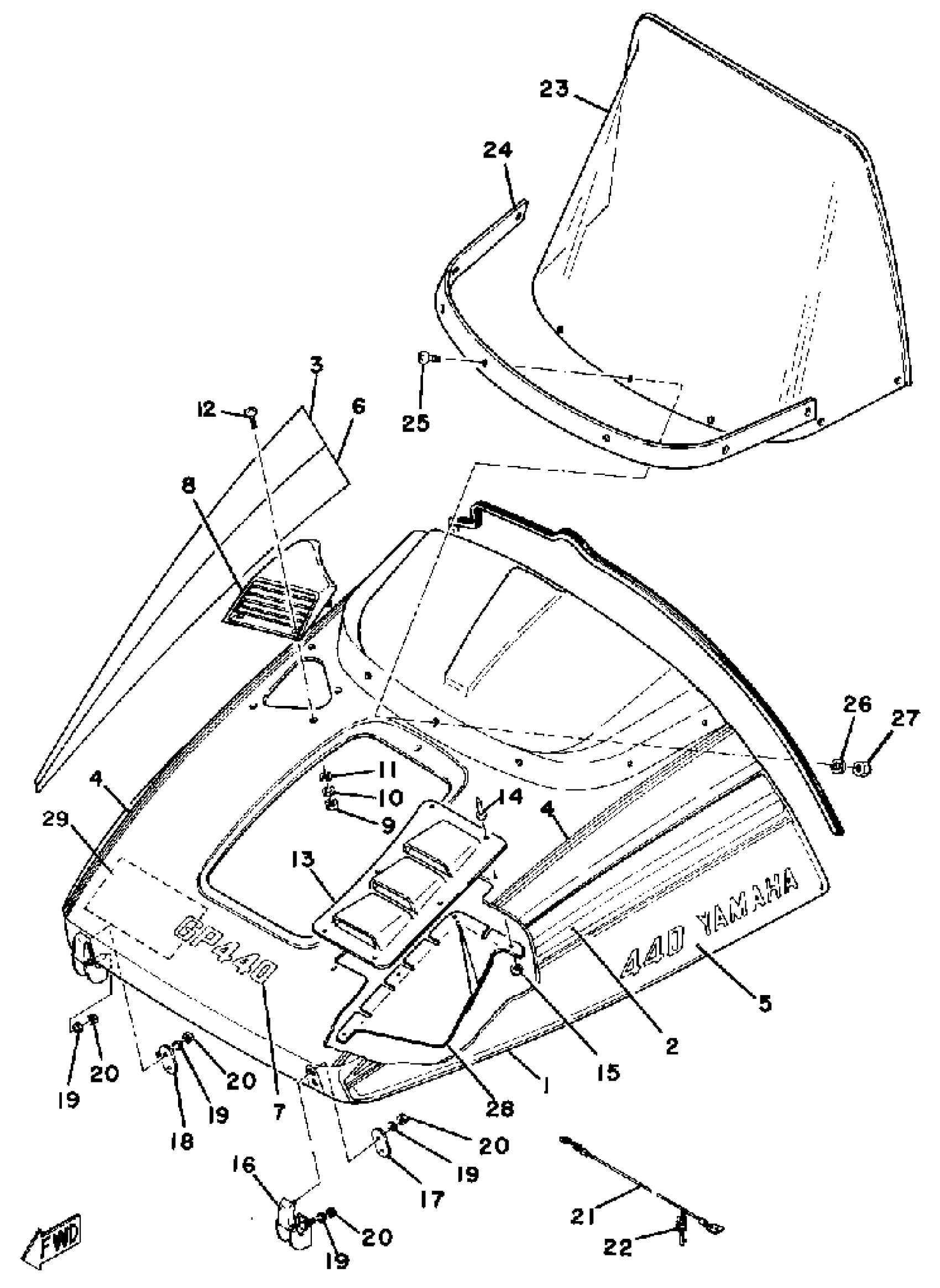

1977 Yamaha GP440A Shroud Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD ASSEMBLY

8E4-W7711-00-00

1
Out of stock

2

ORNAMENT 1

8E4-77163-00-00

1
Out of stock

3

ORNAMENT 2

8E4-77164-00-00

1
Out of stock

4

ORNAMENT 3

(8A1-77169-00-00)

1
Out of stock

5

ORNAMENT 4

8E4-77113-00-00

1
Out of stock

6

ORNAMENT 5

8E4-77114-00-00

1
Out of stock

7

EMBLEM 6

8A1-77356-00-00

1
Out of stock

8

LOUVER 4

(8A1-77134-02-00)

1
Out of stock

9

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

10

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

11

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

12

SCREW, FLAT

98707-05016-00

1

$5.60

In stock

13

LOUVER 3

8A1-77133-00-00

1
Out of stock

14

RIVET (813)

90267-32070-00

1

$2.25

In stock

15

WASHER, PLATE 8077743700

90201-03313-00

1

$5.20

In stock

16

HINGE ASSEMBLY

8E3-77140-00-00

1
Out of stock

17

PLATE, BACK UP 1

(841-77153-00-00)

1
Out of stock

18

PLATE, BACK UP 2

(841-77154-00-00)

1
Out of stock

19

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

20

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

21

STOPPER, SHROUD

8E4-77118-00-00

1
Out of stock

22

CLAMP,ROD

838-77159-00-00

—

$3.49

In stock

23

WINDSHIELD

8A1-77210-00-00

1
Out of stock

24

TRIM, LOWER

(8E4-77214-00-00)

1
Out of stock

25

SCREW, BINDING(3XV)

90154-05059-00

—

$5.21

In stock

26

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

27

NUT, NYLON

95707-05300-00

—

$2.74

In stock

28

DUCT

(8A1-77194-01-00)

1
Out of stock

29

LINING, SHROUD 6 (SILVER 6)

(8E4-77266-01-00)

1
Out of stock
