1977 Yamaha GP440A Engine Cowl Diagram

← All diagrams

Find the part on the Engine Cowl diagram for your 1977 Yamaha GP440A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

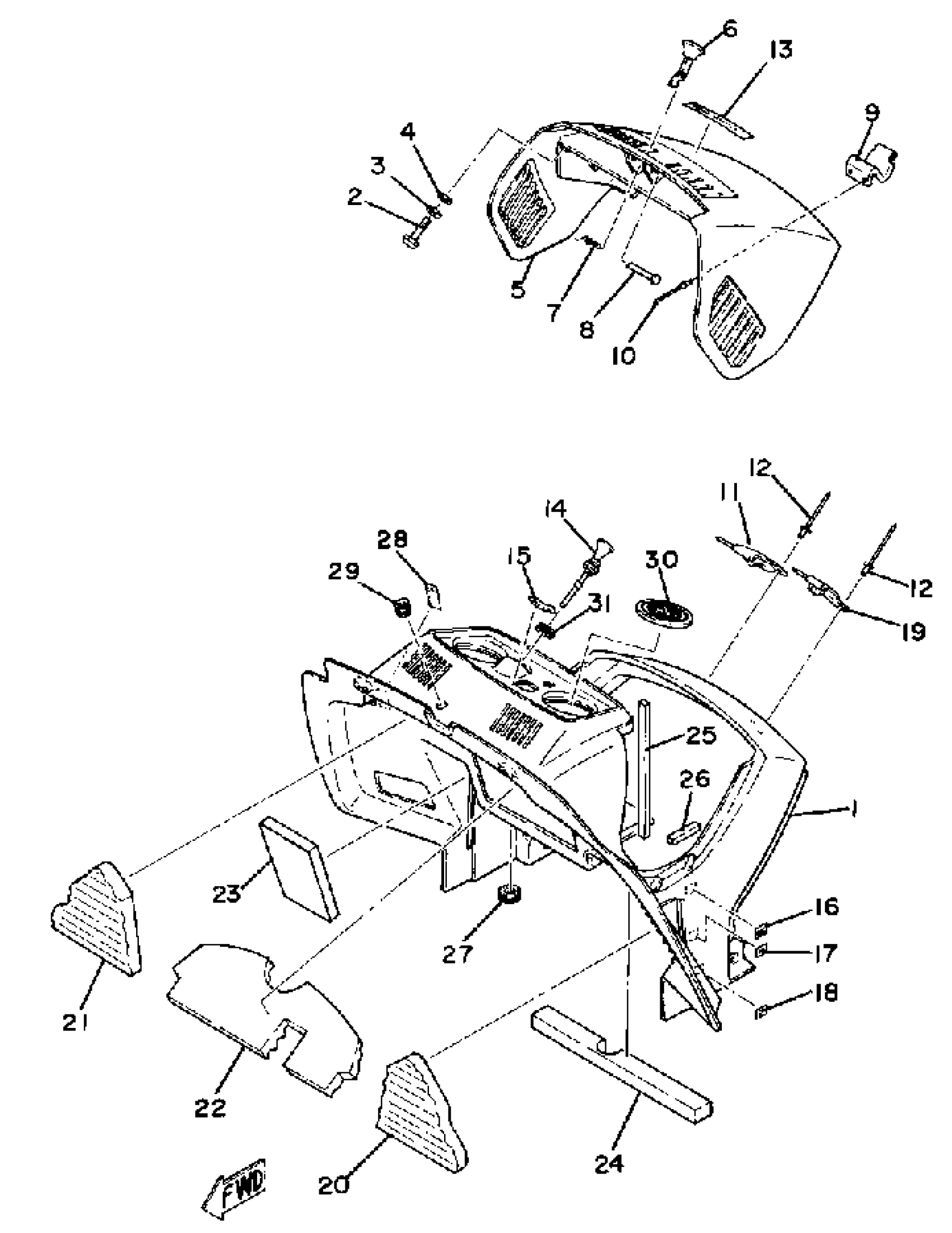

1977 Yamaha GP440A Engine Cowl Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COWL, ENGINE

(8A1-77411-00-00)

1
Out of stock

2

BOLT, HEXAGON

97017-06016-00

1

$6.18

In stock

3

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

4

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

5

LID, ENGINE COWL

8A1-77425-00-00

1
Out of stock

6

KNOB, LATCH

841-77491-00-00

1
Out of stock

7

SPRING, TORSION

90508-08006-00

1
Out of stock

8

PIN

90243-04004-00

1
Out of stock

9

HINGE 3

(8A1-77478-00-00)

1
Out of stock

10

RIVET, BLIND (8K1)

90267-40076-00

1
Out of stock

11

HINGE 2

(8A1-77476-01-00)

1
Out of stock

12

RIVET, BLIND

90267-40029-00

1

$6.68

In stock

13

EMBLEM 1

(8A1-77351-00-00)

1
Out of stock

14

CABLE, STARTER 1

8A1-26331-00-00

1
Out of stock

15

INDICATOR 1

(878-77741-00-00)

1
Out of stock

16

INDICATOR 3

8A1-77743-00-00

1
Out of stock

17

INDICATOR 4

8A1-77744-00-00

1
Out of stock

18

INDICATOR 5

878-77745-00-00

1
Out of stock

19

HINGE 1

8A1-77475-01-00

1
Out of stock

20

DAMPER, NOISE 12

(8A1-77272-00-00)

1
Out of stock

21

DAMPER, NOISE 13

(8A1-77273-00-00)

1
Out of stock

22

DAMPER, NOISE 14

(8A1-77274-00-00)

1
Out of stock

23

DAMPER, NOISE 15

(8A1-77275-00-00)

1
Out of stock

24

DAMPER, NOISE 16

(8A1-77276-00-00)

1
Out of stock

25

DAMPER, NOISE 17

(8A1-77277-00-00)

1
Out of stock

26

DAMPER, NOISE 18

(8A1-77278-00-00)

1
Out of stock

27

GROMMET

90480-20170-00

1
Out of stock

28

INDICATOR 2

(8A1-77742-00-00)

1
Out of stock

29

GROMMET (462)

90480-13018-00

—

$6.25

In stock

30

ORMNT, INSTR PNL 1

(861-77715-00-00)

1
Out of stock

31

GROMMET 1 (SILVER C)

8E4-77431-00-00

1
Out of stock
