PUMP DRIVE GEAR

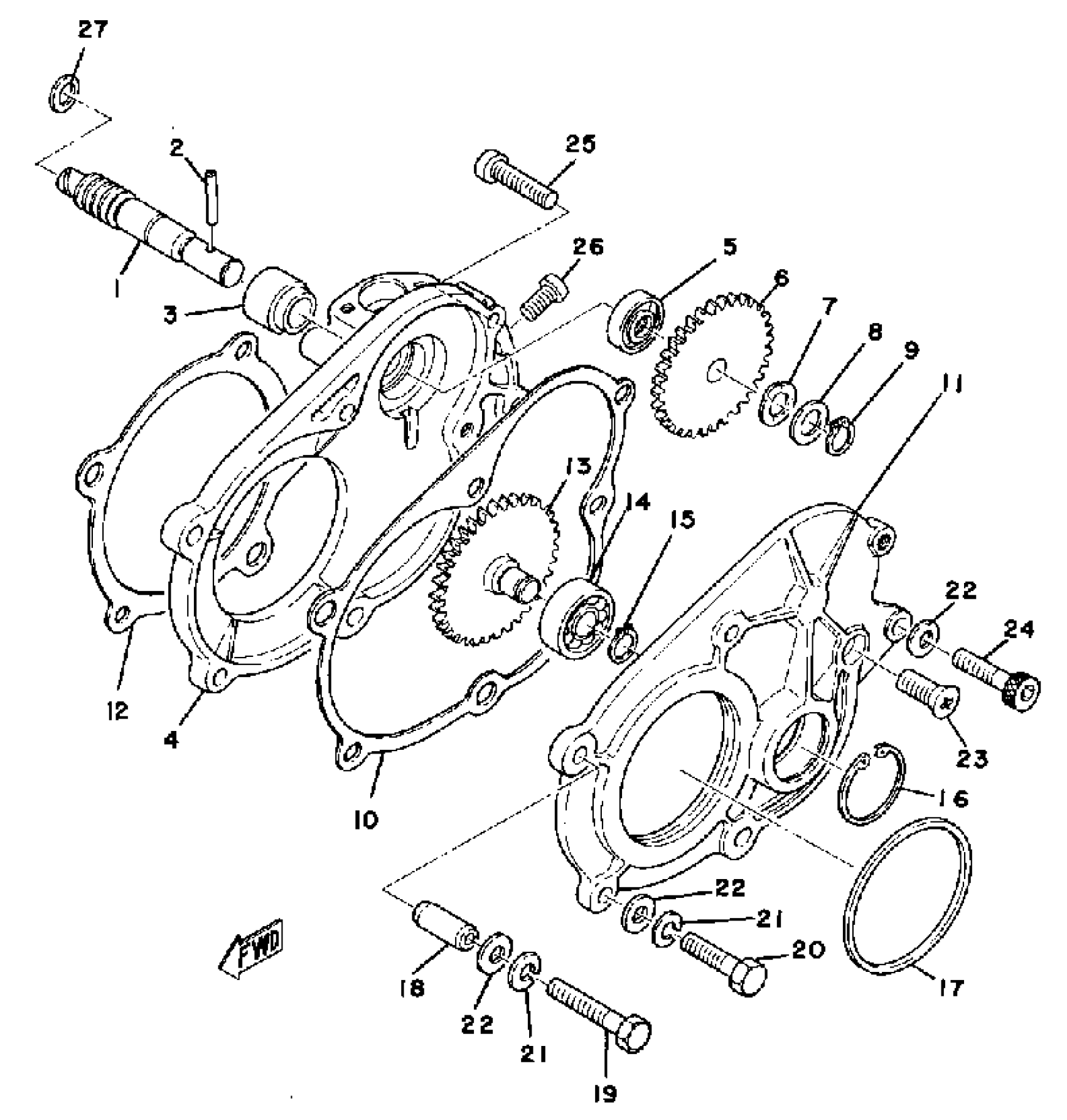

Yamaha GP440A 1977 PUMP DRIVE GEAR Diagram
#
Description
Price
1
SHAFT, WORM
866-13175-00-00
Unavailable
2
PIN,DOWEL (137)
93603-22028-00
$3.76
3
METAL, WORM SHAFT OUTER
821-13176-00-00
$17.49
4
COVER, OIL PUMP
(8E3-15416-00-00)
Unavailable
5
OIL SEAL (J10)
93101-10090-00
$8.49
6
GEAR, DRIVE 2
821-13188-00-00
Unavailable
7
WASHER, WAVE (137)
90206-11016-00
Unavailable
8
PLATE, CAM THRUST
137-13148-00-00
Unavailable
9
CIRCLIP(10W)
99009-10400-00
$4.73
10
GASKET 2
859-15466-09-00
Unavailable
11
COVER, OIL PUMP R
838-15426-00-00
Unavailable
12
GSKT,O PMPCVR
838-15456-09-00
Unavailable
13
GEAR, IDLE
(821-13179-00-00)
Unavailable
14
BRG,R-B 6000RS 32MM 30G KY
93306-00002-00
Unavailable
15
CIRCLIP(10W)
99009-10400-00
$4.73
16
CIRCLIP, R-TYPE (R-26)
93420-26024-00
Unavailable
17
SEAL, GREASE
(838-13119-00-00)
Unavailable
18
PIN, DOWEL
91810-18022-00
Unavailable
19
BOLT(3RV)
97014-06035-00
Unavailable
20
BOLT, HEXAGON
97017-06025-00
Unavailable
21
WASHER, SPRING
92995-06100-00
Unavailable
22
WASHER, PLAIN (646)
92990-06600-00
Unavailable
23
SCREW, FLAT
98707-06014-00
Unavailable
24
BOLT,SOCKET
91317-06025-00
Unavailable
25
SCREW, PAN HEAD (76T)
98517-06025-00
Unavailable
26
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
27
WASHER, PLATE (1E7)
90201-08624-00
Unavailable
