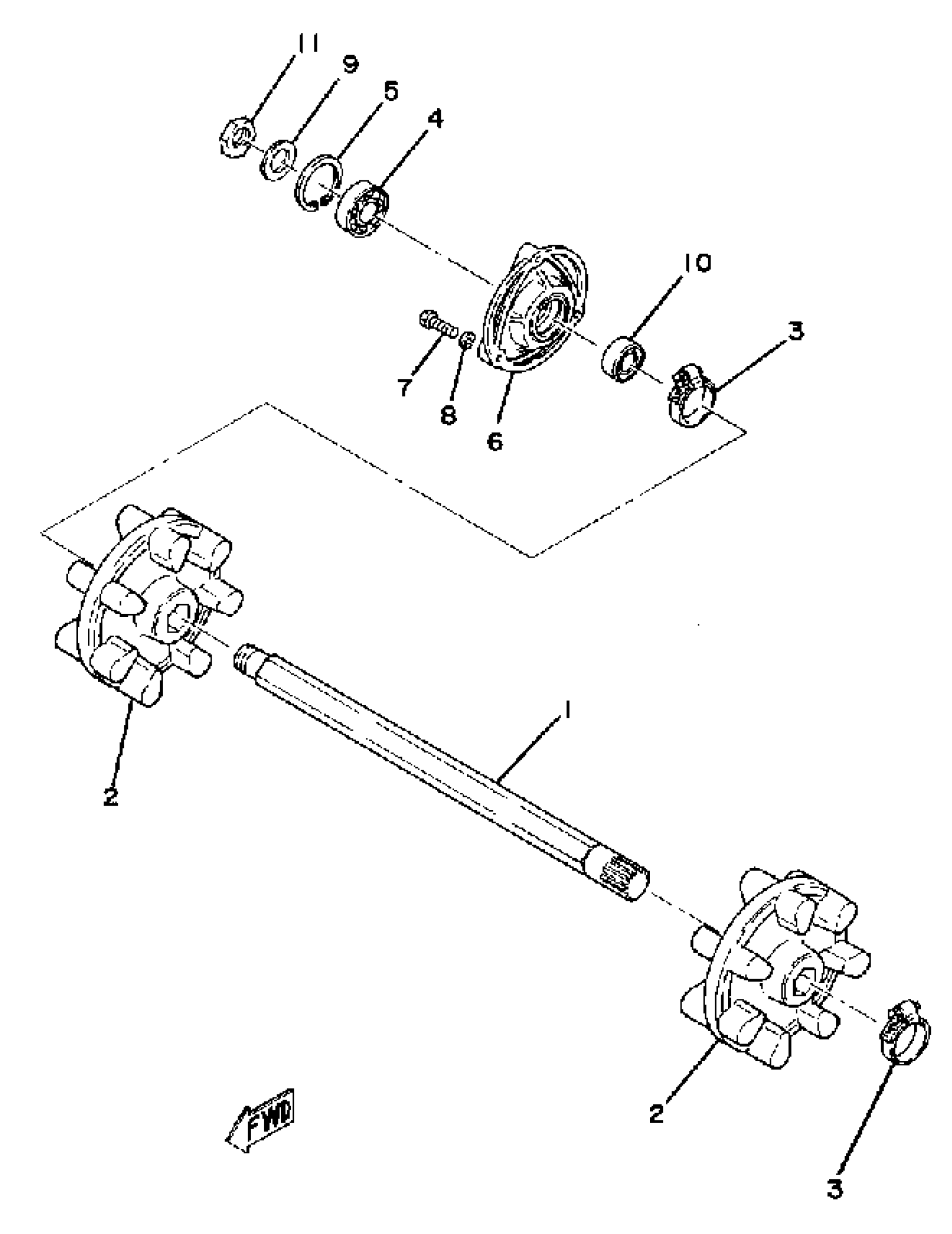

Yamaha GP440A 1977 FRONT AXLE Diagram

#

Description

Price

1

AXLE, FRONT

8E3-W4751-01-00

Unavailable

2

WHEEL SPROCKET ASSY

88L-W4753-00-00

Unavailable

3

BAND (MADE IN CANADA)

90460-50079-00

Unavailable

4

BEARING

93306-00412-00

Unavailable

5

CIRCLIP, R-TYPE

93420-44029-00

Unavailable

6

HOUSING, FRONT AXLE

841-47551-00-00

Unavailable

7

BOLT (682)

97013-08025-00

$8.49

8

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

9

WASHER 810475810000

90208-22001-00

$8.49

10

OIL SEAL,SD-TYPE

93102-25332-00

Unavailable

11

NUT (821-47579-00)

90170-22094-00

$5.60
