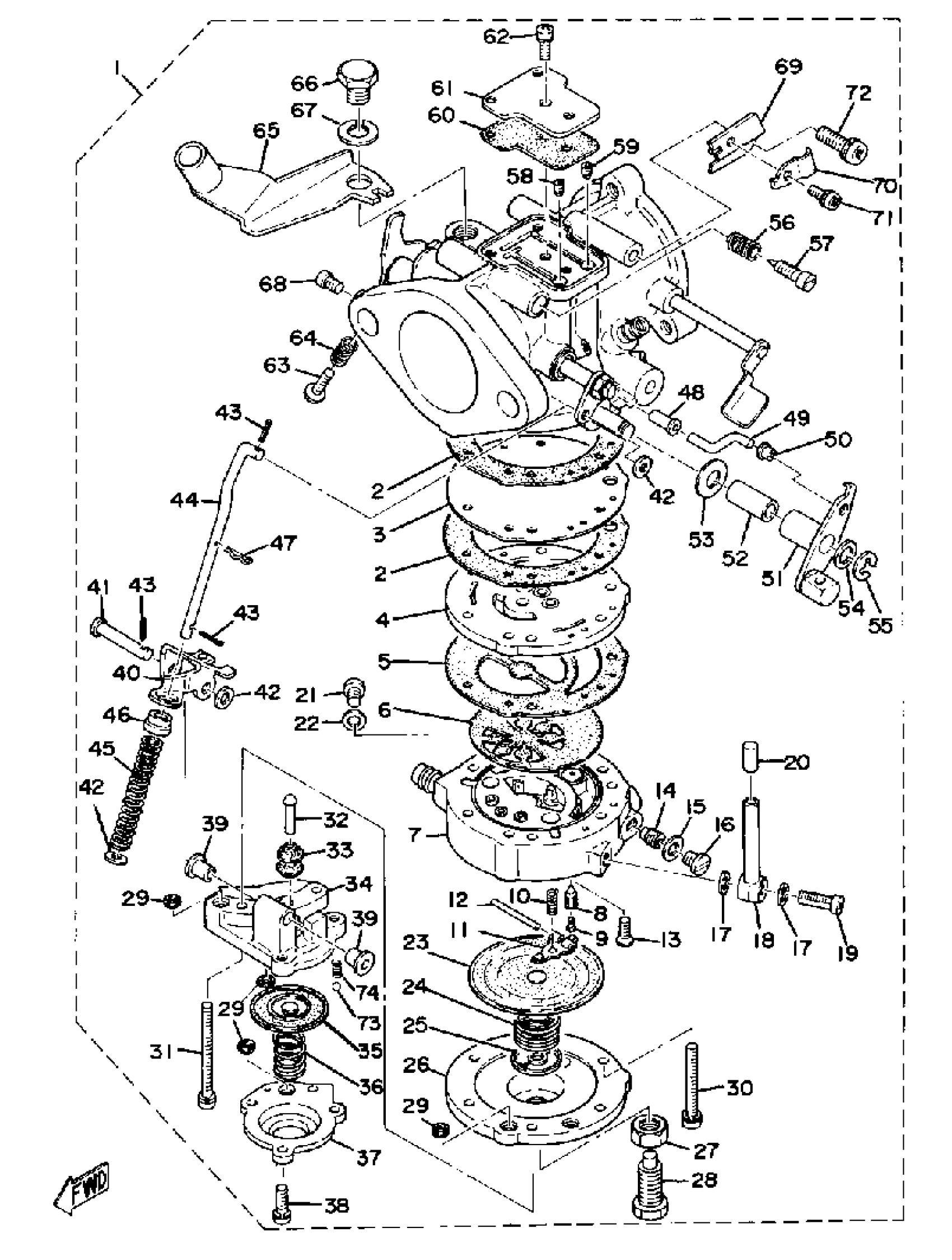

Yamaha GP440A 1977 CARBURETOR Diagram

#

Description

Price

1

CARBURETOR ASSEMBLY 1

8E4-14501-00-00

Unavailable

2

. GASKET

890-14536-00-00

Unavailable

3

. DIAPHRAGM, PUMP

890-14541-00-00

Unavailable

4

BODY, PUMP 1

(890-14542-00-00)

Unavailable

5

GASKET

865-14553-09-00

$16.49

6

VALVE,CHECK

806-14552-01-00

$56.99

7

BODY, PUMP 2

(890-14543-00-00)

Unavailable

8

VALVE

838-14546-00-00

$43.99

9

. PIN, FLOAT

676-14186-00-00

Unavailable

10

. SPRING

810-14556-00-00

Unavailable

11

ARM, FLOAT

(810-14547-00-00)

Unavailable

12

PIN, FLOAT ARM

(806-14548-00-00)

Unavailable

13

SCREW, FLAT

98707-03008-00

$7.49

14

JET, MAIN #190

(888-14516-90-00)

Unavailable

15

WASHER

(810-14558-00-00)

Unavailable

16

SCREW

(845-14567-00-00)

Unavailable

17

. WASHER

806-14559-00-00

Unavailable

18

. PIPE, AIRVENT

810-14197-02-00

Unavailable

19

. SCREW

8A1-14592-00-00

Unavailable

20

. CAP, BLIND

810-24462-01-00

Unavailable

21

SCREW

(806-14567-01-00)

Unavailable

22

. WASHER

810-14597-00-00

Unavailable

23

DIAPHRAGM

810-14545-00-00

Unavailable

24

. SPRING, COMPRESSION

90501-06213-00

Unavailable

25

SEAT, SPRING

(810-14136-00-00)

Unavailable

26

BODY, PUMP 3

(866-14544-00-00)

Unavailable

27

. NUT

95380-08700-00

Unavailable

28

. SCREW, STOP

884-14565-01-00

Unavailable

29

. O-RING

866-14561-00-00

Unavailable

30

SCREW

(824-14567-00-00)

Unavailable

31

SCREW

(858-14567-00-00)

Unavailable

32

. PIN, FLOAT ARM

866-14548-00-00

Unavailable

33

COVER

(866-14967-00-00)

Unavailable

34

BODY, PUMP 4

(866-14551-00-00)

Unavailable

35

DIAPHRAGM

(8A1-14545-00-00)

Unavailable

36

SPRING, COMPRESSION

(90501-07341-00)

Unavailable

37

COVER, FUEL

(866-14540-00-00)

Unavailable

38

SCREW, WITH WASHER

(90159-05006-00)

Unavailable

39

COLLAR

(866-14578-00-00)

Unavailable

40

ARM

(866-14528-00-00)

Unavailable

41

PIN, LEVER

(866-14554-00-00)

Unavailable

42

WASHER, PLATE(3TJ)

90201-08410-00

Unavailable

43

. PIN, COTTER

91490-12012-00

Unavailable

44

ROD

(890-14577-00-00)

Unavailable

45

. SPRING

890-14589-00-00

Unavailable

46

COLLAR

(866-14535-00-00)

Unavailable

47

SPRING

(866-14579-00-00)

Unavailable

48

COLLAR

(865-14535-00-00)

Unavailable

49

ROD

(865-14577-00-00)

Unavailable

50

. COLLAR

865-14534-00-00

Unavailable

51

LEVER

(8E3-14573-00-00)

Unavailable

52

COLLAR

(806-14534-00-00)

Unavailable

53

. WASHER, PLATE

90202-07055-00

Unavailable

54

WASHER, PLATE(3TJ)

90202-06056-00

Unavailable

55

CIRCLIP(22K)

99080-05600-00

Unavailable

56

SPRING, COMPRESSION

(90501-10237-00)

Unavailable

57

SCREW, ADJUST

(865-14522-00-00)

Unavailable

58

JET #48 (#48)

865-14515-48-00

Unavailable

59

JET #95

(890-14515-95-00)

Unavailable

60

GASKET

(865-14537-00-00)

Unavailable

61

PLATE

(8A1-14527-00-00)

Unavailable

62

. SCREW, WITH WASHER

90159-05005-00

Unavailable

63

SCREW, STOP

(8A1-14523-00-00)

Unavailable

64

. SPRING, COMPRESSION

90501-12229-00

Unavailable

65

. BRACKET, THROTTLE

865-14571-01-00

Unavailable

66

BOLT(62E)

97013-08012-00

Unavailable

67

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

68

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

69

PLATE, STAY

(8A1-14580-00-00)

Unavailable

70

. BRACKET

879-14581-00-00

Unavailable

71

SCREW, WITH WASHER

(90159-04008-00)

Unavailable

72

. SCREW, WITH WASHER

90159-05005-00

Unavailable

73

BALL 1/8

(93501-08028-00)

Unavailable

74

. SPRING

8E4-14589-00-00

Unavailable
