STEERING

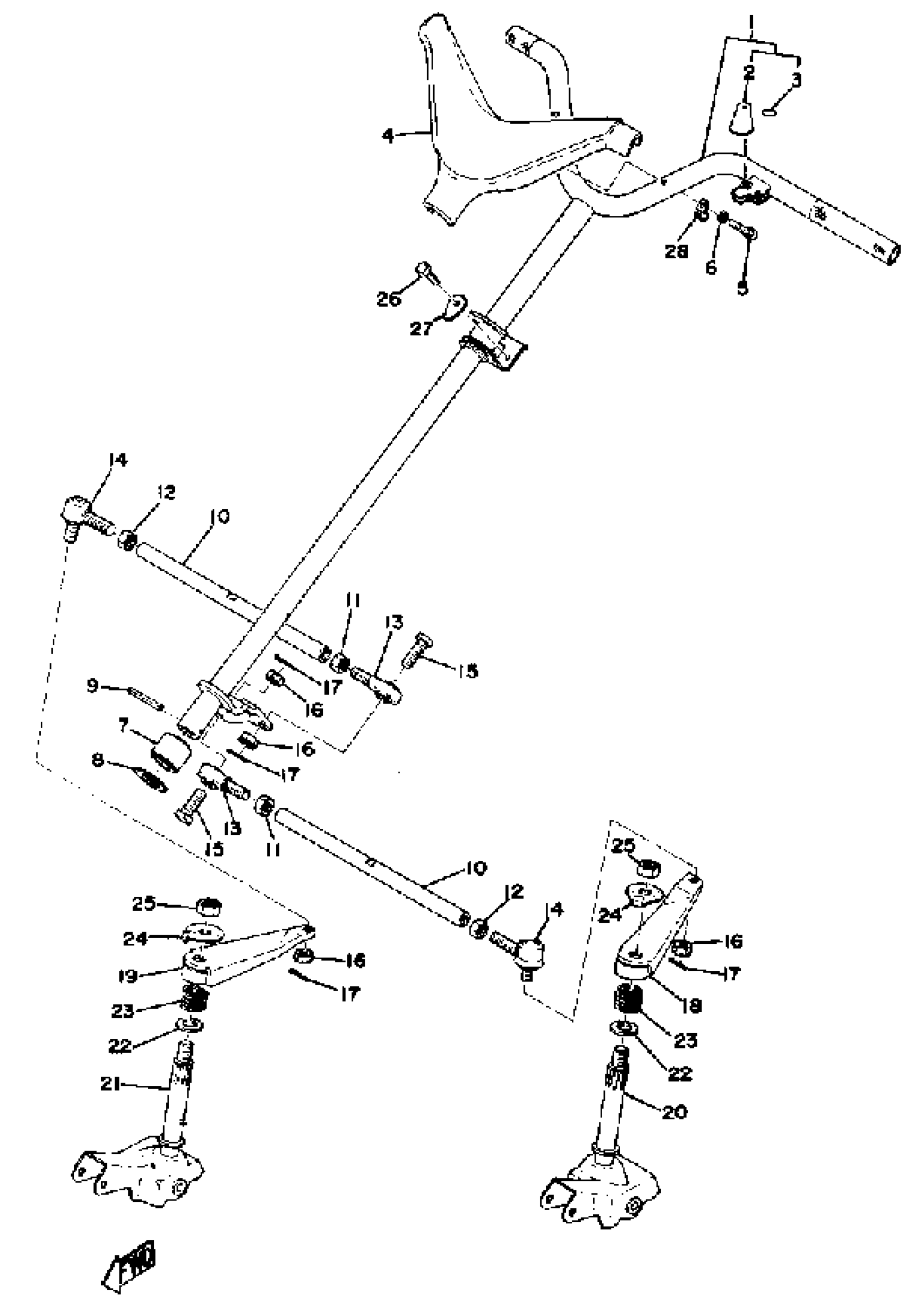

Yamaha GP440 1976 STEERING Diagram
#
1
STRG COLUMN ASSEMBLY
(861-23810-01-00)
Unavailable
2
LEVER, LOCK
(803-83965-00-00)
Unavailable
3
PIN, SPEC''L SHAPE
(90249-04022-00)
Unavailable
4
PAD, STEERING
(863-23815-01-00)
Unavailable
5
SCREW, PAN
98507-05035-00
$8.49
6
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
7
BEARING, STRG LOWER
(806-23875-00-00)
Unavailable
8
BEARING, STEERING
(841-23812-01-00)
Unavailable
9
PIN, SPRING
91609-60045-00
Unavailable
10
ROD, STEERING RELAY
(861-23821-00-00)
Unavailable
11
NUT, HEXAGON SMALL
95317-12700-00
$8.49
12
NUT (821-23834-00)
90170-12054-00
$8.49
13
JOINT, UNIVERSAL 1
861-23841-00-00
Unavailable
14
JOINT, UNIVERSAL 2
(821-23845-90-00)
Unavailable
15
BOLT
90109-10409-00
Unavailable
16
NUT, CASTLE
95307-10900-00
Unavailable
17
PIN, COTTER
91490-25020-00
Unavailable
18
ARM, OUTSIDE 1
899-23851-00-00
Unavailable
19
ARM, OUTSIDE 2
890-23852-00-00
Unavailable
20
COLUMN, SKI 1
865-23853-00-00
Unavailable
21
COLUMN, SKI 2
865-23854-00-00
Unavailable
22
SPACER
90560-20037-00
Unavailable
23
SPRING, COMPRESSION
90501-35154-00
Unavailable
24
WASHER, LOCK (810-23857-00)
90215-12031-00
Unavailable
25
NUT(3DM)
95304-12600-00
Unavailable
26
BOLT, HEXAGON
97017-06020-00
Unavailable
27
WASHER, LOCK
(90215-06038-00)
Unavailable
28
CLAMP
(90462-08003-00)
Unavailable
