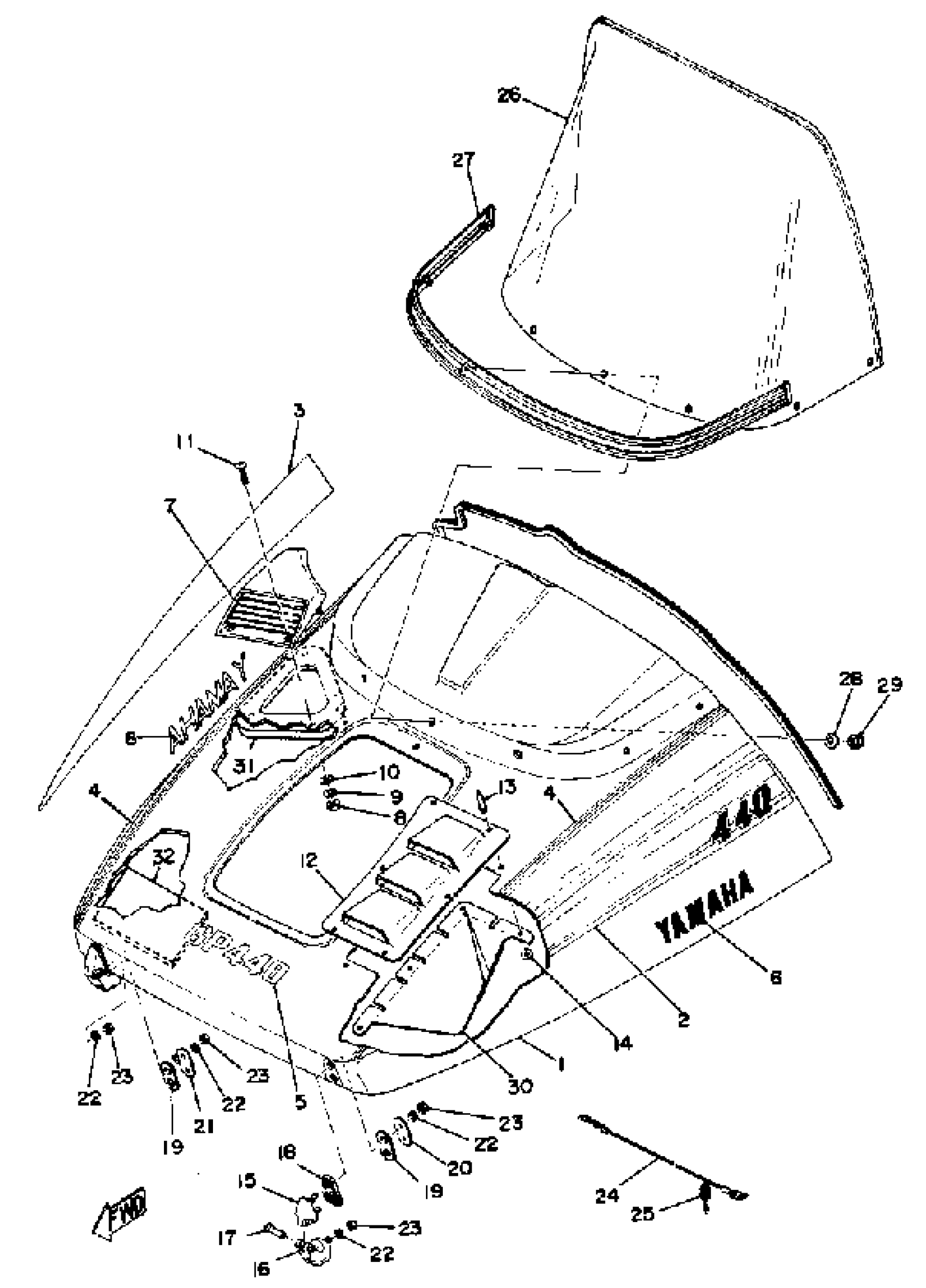

Yamaha GP440 1976 SHROUD Diagram

#

Description
Price

1

SHROUD ASSEMBLY

8A1-77110-00-00

Unavailable

2

ORNAMENT 1

8A1-77163-00-00

Unavailable

3

ORNAMENT 2

(8A1-77164-00-00)

Unavailable

4

ORNAMENT 3

(8A1-77169-00-00)

Unavailable

5

EMBLEM 6

8A1-77356-00-00

Unavailable

6

EMBLEM 7

(838-77357-00-00)

Unavailable

7

LOUVER 4

(8A1-77134-02-00)

Unavailable

8

NUT, HEXAGON (663)

95380-05600-00

$8.49

9

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

10

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

11

SCREW, FLAT

98707-05016-00

$7.99

12

LOUVER 3

8A1-77133-00-00

Unavailable

13

RIVET (813)

90267-32070-00

$3.50

14

WASHER, PLATE 8077743700

90201-03313-00

$9.49

15

HINGEASSEMBLY

(841-77140-00-00)

Unavailable

16

HINGE 3

(841-77147-00-00)

Unavailable

17

PIN

90243-05003-00

Unavailable

18

DAMPER 2

841-77199-00-00

Unavailable

19

DAMPER 1

(841-77198-00-00)

Unavailable

20

PLATE, BACK UP 1

(841-77153-00-00)

Unavailable

21

PLATE, BACK UP 2

(841-77154-00-00)

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

NUT, HEXAGON

95380-06600-00

Unavailable

24

STOPPER, SHROUD

8E4-77118-00-00

Unavailable

25

CLAMP,ROD

838-77159-00-00

Unavailable

26

WINDSHIELD

8A1-77210-00-00

Unavailable

27

TRIM LOWER ASSEMBLY

(8A1-77220-00-00)

Unavailable

28

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

29

NUT, U

95617-05100-00

Unavailable

30

DUCT

(8A1-77194-01-00)

Unavailable

31

LINING, SHROUD 4

(8E4-77264-01-00)

Unavailable

32

LINING, SHROUD 6 (SILVER 6)

(8E4-77266-01-00)

Unavailable
