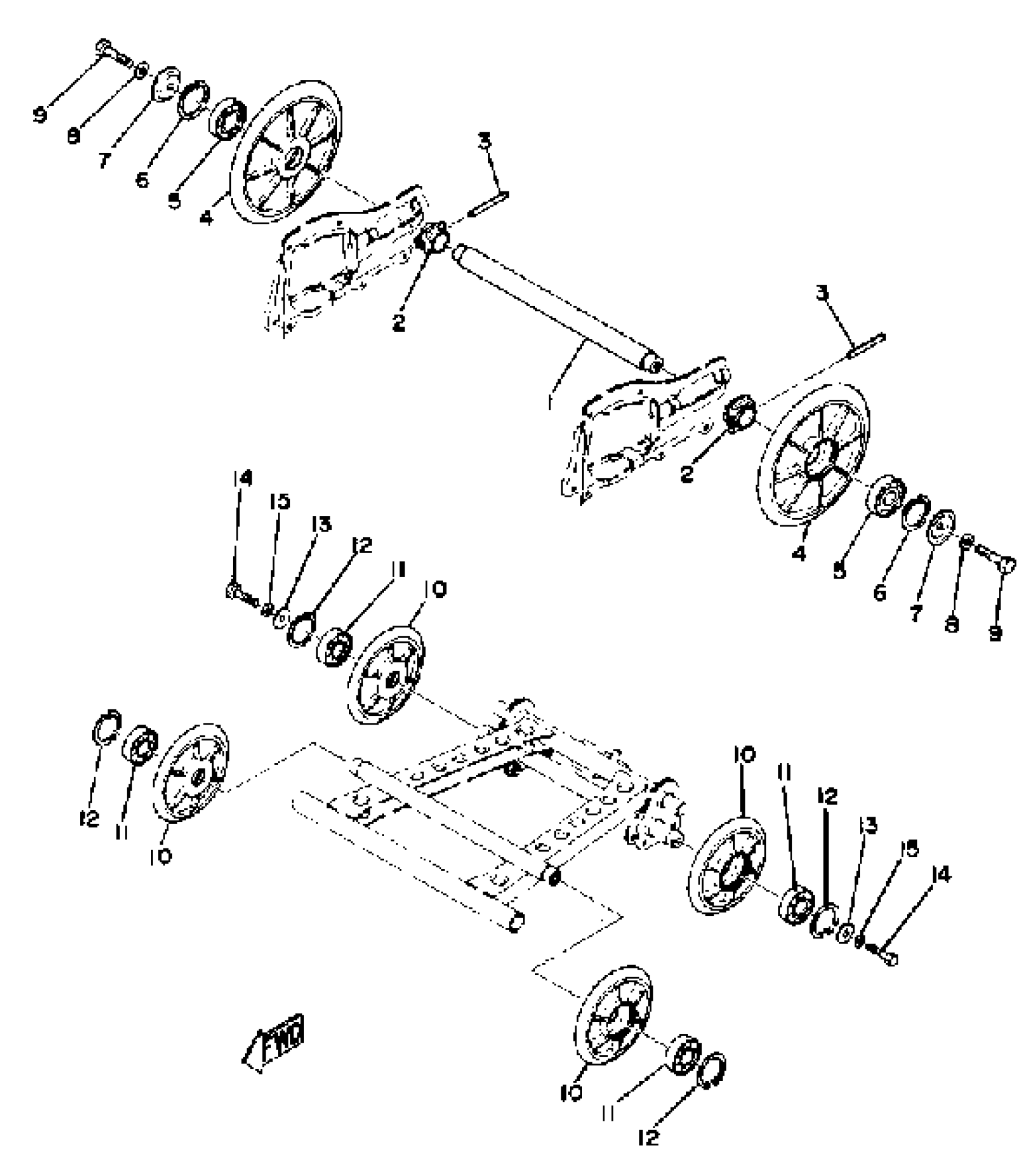

Yamaha GP440 1976 REAR AXLE - WHEEL Diagram

AXLE, REAR

(885-47521-01-00)

Unavailable

COLLAR 3

885-47479-00-00

Unavailable

PIN, SPRING (663)

91690-40040-00

Unavailable

WHEEL GUIDE COMP.

8L4-47530-00-00

$171.99

BRG,R-B 62042RS 47MM 110G KY

93306-20417-00

$40.99

CIRCLIP(48Y)

99009-47500-00

$9.49

WASHER, SPEC''L SHAP

90209-08124-00

Unavailable

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

BOLT (682)

97013-08025-00

$8.49

SUSPENSION WHL ASSEMBLY (810-47310-00)

8A9-47310-01-00

Unavailable

BEARING(8AB)

93306-00444-00

$41.99

CIRCLIP(5U8)

99009-42500-00

$8.49

WASHER, SPEC''L SHAP

90209-06137-00

Unavailable

BOLT, HEXAGON

97017-06020-00

$4.06

WASHER, SPRING

92995-06100-00

Unavailable
