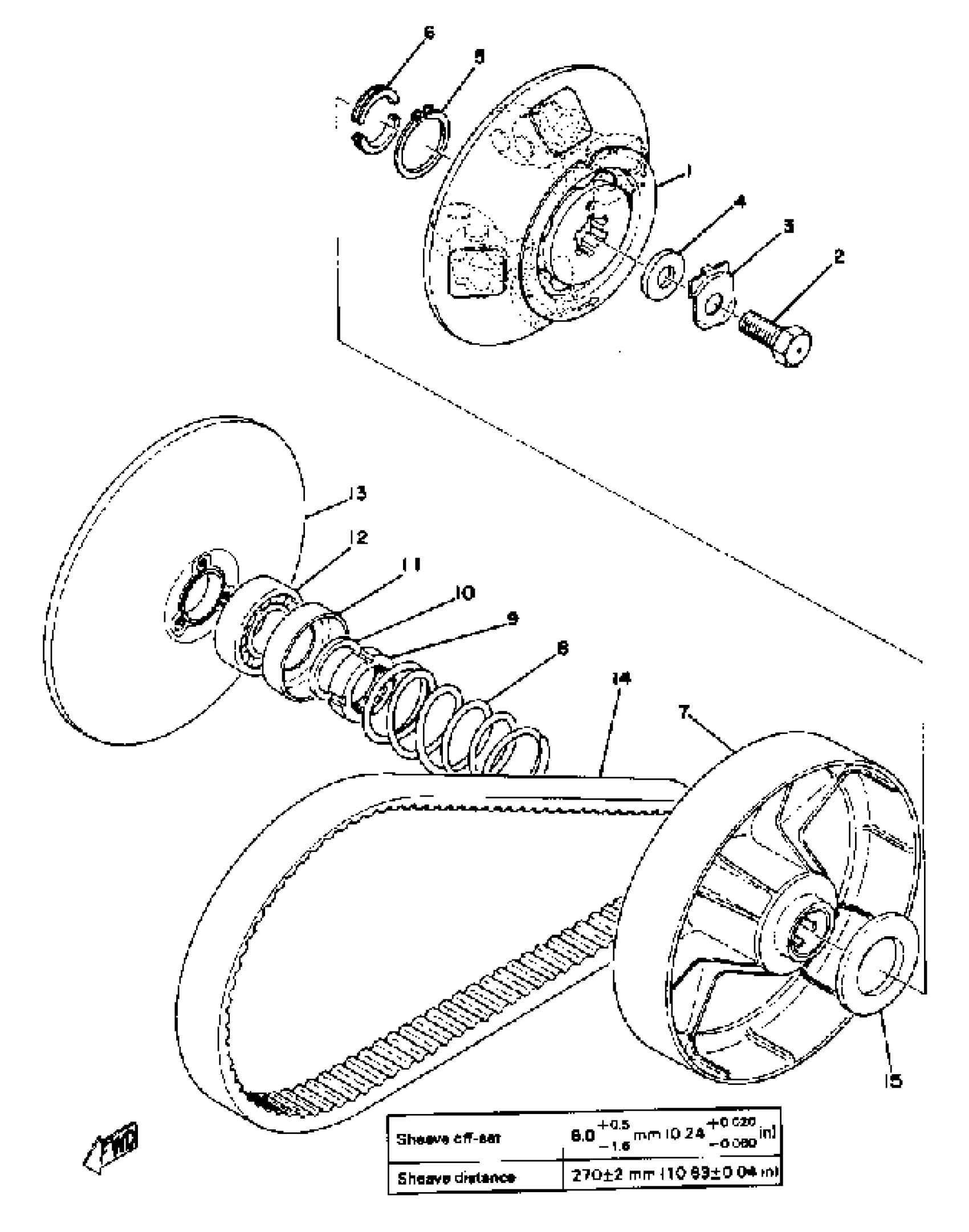

Yamaha GP440 1976 PRIMARY SHEAVE Diagram

#

Description
Price

1

PRI. SHEAVE CAP (864-17630-01)

8F8-W1762-00-00

Unavailable

2

BOLT

(838-17647-01-00)

Unavailable

3

WASHER, LOCK

90215-12084-00

Unavailable

4

WASHER (838)

90201-12191-00

$7.49

5

CIRCLIP(4A6)

99009-30400-00

$8.49

6

COLLAR

806-17645-00-00

Unavailable

7

PRI SLIDG SHEAVECOMP.

864-17620-00-00

Unavailable

8

SPRING, COMPRESSION

90501-50372-00

Unavailable

9

NUT, BEARING

(810-17642-00-00)

Unavailable

10

WASHER, CONICAL SPR

90208-28003-00

Unavailable

11

SEAT, SPRING

806-17644-00-00

Unavailable

12

BEARING

93306-07806-00

$63.99

13

PRI. FIXED SHEAVE

(864-W1761-00-00)

Unavailable

14

V-BELT

89X-17641-01-00

Unavailable

15

CAM

(809-17623-00-00)

Unavailable
